Product Description

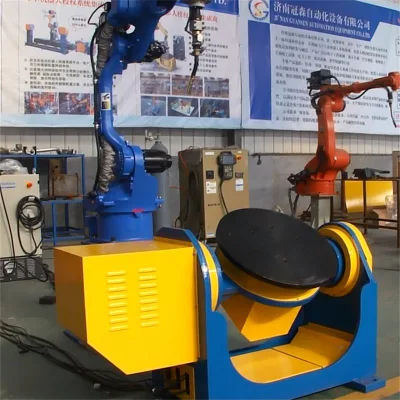

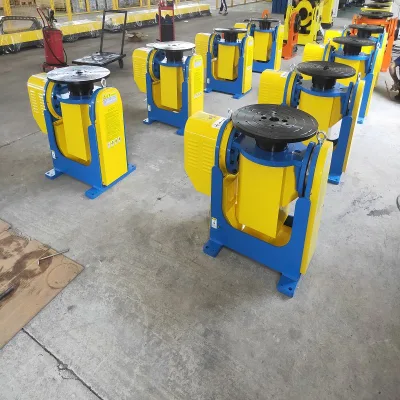

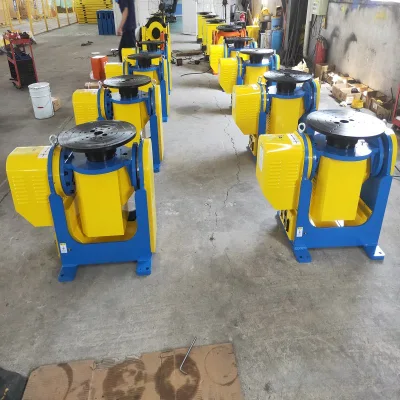

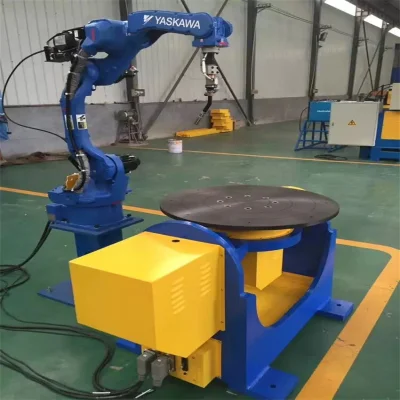

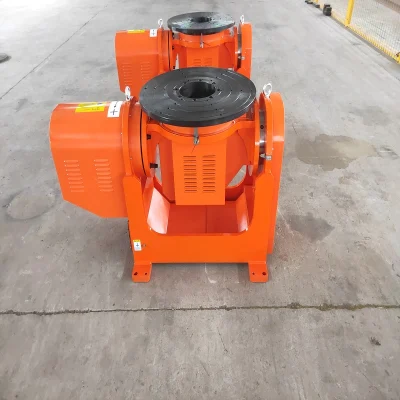

The servo displacement machine mainly consists of a fixed base, a rotating spindle box, a welded frame, a servo motor and precision reducer, a conductive mechanism, a protective cover, and an electrical control system.
The welded overall frame is made of high-quality steel and welded. After being returned for stress relief, it undergoes professional mechanical processing to ensure high precision and usage accuracy in key positions. The surface is sprayed with rust proof exterior paint, and the color can be customized according to customer requirements.
Turn over to make the workpiece fixed on the workbench reach the required welding and assembly angle. The rotation of the workbench is controlled by a servo motor, which can achieve the ideal welding speed.
![a Dual Axis Platform Welding Positioner Specifically Designed for The Welding and Machining Industry That Supports Customizable Rotating Discs](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00pEjbzcUavDuJ/a-Dual-Axis-Platform-Welding-Positioner-Specifically-Designed-for-The-Welding-and-Machining-Industry-That-Supports-Customizable-Rotating-Discs.webp)
![a Dual Axis Platform Welding Positioner Specifically Designed for The Welding and Machining Industry That Supports Customizable Rotating Discs](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00pQZbzKUsbLgm/a-Dual-Axis-Platform-Welding-Positioner-Specifically-Designed-for-The-Welding-and-Machining-Industry-That-Supports-Customizable-Rotating-Discs.webp)
![a Dual Axis Platform Welding Positioner Specifically Designed for The Welding and Machining Industry That Supports Customizable Rotating Discs](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00zTSqgdflhLrJ/a-Dual-Axis-Platform-Welding-Positioner-Specifically-Designed-for-The-Welding-and-Machining-Industry-That-Supports-Customizable-Rotating-Discs.webp)
![a Dual Axis Platform Welding Positioner Specifically Designed for The Welding and Machining Industry That Supports Customizable Rotating Discs](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00HTKbuUfCJIpA/a-Dual-Axis-Platform-Welding-Positioner-Specifically-Designed-for-The-Welding-and-Machining-Industry-That-Supports-Customizable-Rotating-Discs.webp)
![a Dual Axis Platform Welding Positioner Specifically Designed for The Welding and Machining Industry That Supports Customizable Rotating Discs](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00HEKqgDGIOLpd/a-Dual-Axis-Platform-Welding-Positioner-Specifically-Designed-for-The-Welding-and-Machining-Industry-That-Supports-Customizable-Rotating-Discs.webp)
![a Dual Axis Platform Welding Positioner Specifically Designed for The Welding and Machining Industry That Supports Customizable Rotating Discs](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00DEZkgqRybIuw/a-Dual-Axis-Platform-Welding-Positioner-Specifically-Designed-for-The-Welding-and-Machining-Industry-That-Supports-Customizable-Rotating-Discs.webp)
Single Axis P Type welding Positioner | ||||
Model | AUT-SWP-P-200 | AUT-SWP-P-500 | AUT-SWP-P-800 | |
Rated payload | 200kg(Spindle axis radius≤ 600mm ) | 500kg(Spindle axis radius≤ 750mm ) | 1000kg(Spindle axis radius≤ 900mm ) | |
Standard radius of gyration | R600mm | R750mm | R900mm | |
Maximum angle of gyration | ±360° | ±360° | ±360° | |
Rated speed of gyration | 50°/S | 50°/S | 50°/S | |
Repeat positioning accuracy | ±0.08mm(At R=400mm) | ±0.08mm(At R=400mm) | ±0.08mm(At R=400mm) | |
Horizontal rotary disc size | ≤1200mm(Standard configuration without gyration disc) | ≤1500mm(Standard configuration without gyration disc) | ≤1800mm(Standard configuration without gyration disc) | |
Positioner dimension(L*W*H) | 900mm*700mm*760mm | 900mm*700mm*750mm | 650mm*650mm*500mm | |
Tool tray size | Φ360mm | Φ390mm | Φ430mm | |
Height of the tool tray to the ground | 760mm | 780mm | 500mm | |
Equipment net weight | About 270kg | About 300kg | About 400kg |
![a Dual Axis Platform Welding Positioner Specifically Designed for The Welding and Machining Industry That Supports Customizable Rotating Discs](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00LQSbusRkhIrd/a-Dual-Axis-Platform-Welding-Positioner-Specifically-Designed-for-The-Welding-and-Machining-Industry-That-Supports-Customizable-Rotating-Discs.webp)
Product Lineup
Robot peripheral supporting equipment
Standard servo welding positioner
Standard robot Linear rail
Robot integrated workstations and production lines for welding, cutting, handling, forging, casting, machining, painting, etc.
Peripheral safety protection smoke removal system and other supporting equipment.
Non-standard CNC welding machines, CNC cutting machines and other automatic welding cutting equipment.
The specifications of non-standard welding positioner and Linear rail can be customized .
![a Dual Axis Platform Welding Positioner Specifically Designed for The Welding and Machining Industry That Supports Customizable Rotating Discs](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00LaSczJfsnHpm/a-Dual-Axis-Platform-Welding-Positioner-Specifically-Designed-for-The-Welding-and-Machining-Industry-That-Supports-Customizable-Rotating-Discs.webp)
![a Dual Axis Platform Welding Positioner Specifically Designed for The Welding and Machining Industry That Supports Customizable Rotating Discs](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00VTScuGUlOHzJ/a-Dual-Axis-Platform-Welding-Positioner-Specifically-Designed-for-The-Welding-and-Machining-Industry-That-Supports-Customizable-Rotating-Discs.webp)
![a Dual Axis Platform Welding Positioner Specifically Designed for The Welding and Machining Industry That Supports Customizable Rotating Discs](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00VEskrLYUsPzA/a-Dual-Axis-Platform-Welding-Positioner-Specifically-Designed-for-The-Welding-and-Machining-Industry-That-Supports-Customizable-Rotating-Discs.webp)
![a Dual Axis Platform Welding Positioner Specifically Designed for The Welding and Machining Industry That Supports Customizable Rotating Discs](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00WtKbpqGFCHzm/a-Dual-Axis-Platform-Welding-Positioner-Specifically-Designed-for-The-Welding-and-Machining-Industry-That-Supports-Customizable-Rotating-Discs.webp)
![a Dual Axis Platform Welding Positioner Specifically Designed for The Welding and Machining Industry That Supports Customizable Rotating Discs](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00haSogZfdAHrJ/a-Dual-Axis-Platform-Welding-Positioner-Specifically-Designed-for-The-Welding-and-Machining-Industry-That-Supports-Customizable-Rotating-Discs.webp)
![a Dual Axis Platform Welding Positioner Specifically Designed for The Welding and Machining Industry That Supports Customizable Rotating Discs](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00haZqpJYMnHzA/a-Dual-Axis-Platform-Welding-Positioner-Specifically-Designed-for-The-Welding-and-Machining-Industry-That-Supports-Customizable-Rotating-Discs.webp)
1. Q: Is your company a manufacturer?
A: Yes, we have our own factory in Jining City and our own foreign trade company in Jinan City. We are a company that integrates factory and foreign trade.
2. Q: What is the quality of the company's products?
A: The company's products have been produced in China for over 10 years and have cooperative relationships with multiple trading companies. Our products are exported to various parts of the world.
3. Q: Does the product support personalized customization?
A: Products can be personalized and customized according to the actual needs of customers. Customizable content includes: specifications, colors, logos, etc.
4. Q: What are the transportation and packaging methods? A: We will use wooden boxes for packaging, and the transportation method can be negotiated and arranged for shipment.
Accepted Delivery Terms: FOB, EXW
5.Q: What after-sales service can you provide?
A: We provide complete technical support and a one-year warranty.
