Chain Rotating Machine Beam Rotator for Steel Welding and Turning

Discover our innovative Chain Rotating Machine Beam Rotator for Steel Welding and Turning. As a factory specializing in manufacturing welding equipment, we offer high-quality solutions for steel fabrication needs.
Request a Quote


  • Overview
  • Product Description
  • Major Component
  • Product Parameters
  • Detailed Photos
  • Company Profile

Basic Info.

Model NO.
Load and Unload Mode
Walking Mode
Oversize Loader
Tilter Machine
Transport Package
Export Package
Production Capacity
800 Sets/Year

Product Description

Product Description

It is used for turning over and lifting workpieces to improve production efficiency and ensure the safety of working staff.Turning tire is suitable for any turning of workpiece 0°-360° clockwise or counterclockwise between processes to realize turning and lifting of workpiece.

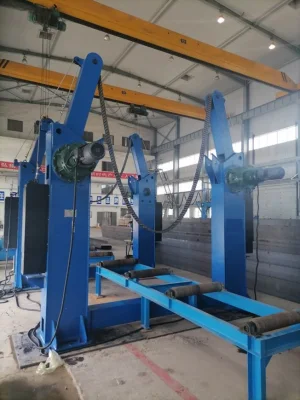

Chain Rotating Machine Beam Rotator for Steel Welding and Turning

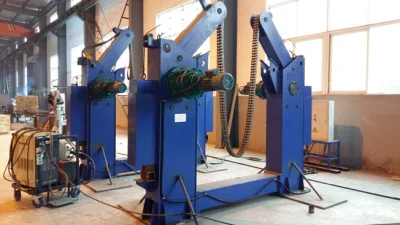

Chain Rotating Machine Beam Rotator for Steel Welding and Turning


Major Component

A. The whole machine structure of the equipment is inverted gantry type, using four reducer to drive the lifting chain to drive the workpiece turnover.
B. Tire rotation mainly consists of swing arm, column, reset device, electric control and operating system.It consists of four columns, which are connected to the left and right columns.A driving mechanism is arranged on each column, and the sprocket is driven by a brake motor through a cycloid pin wheel reducer.

C. Two upper pulleys are arranged above the sprocket, and the upper pulleys are installed on the swing arm.The role of the upper pulley is to change the direction of movement of the chain and the position of the chain expansion.A guide wheel is attached to the lower part of the sprocket to increase the wrap Angle of the chain on the sprocket.
D. The column adopts box welding structure, with enough stiffness and strength to meet the stability of the equipment in long-term use.
E. The upper part of the column is equipped with a swing arm and a hammer device, whose function is to rotate the swing arm down an Angle when the workpiece needs to be turned.When there is no need to flip, the swing arm is lifted and the chain is loosened, which is convenient for conveying the workpiece back and forth.

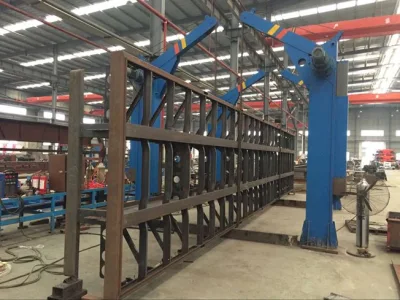

Chain Rotating Machine Beam Rotator for Steel Welding and Turning
The reversing tire uses the lifting chain to rotate the workpiece to solve the insecure problem of the workpiece turning and skidding. The four reducer can rotate in the same direction or reverse direction. The workpiece can be flipped in the same direction and the workpiece can be lifted and lowered in the reverse direction.

The control system includes:
1, The manual control box of the main control cabinet. The manual control box is equipped with a 15-meter wire connection to the control cabinet. The manual control box can be used to operate the equipment in different positions of the equipment.

2, The manual control operation box and the main control cabinet are equipped with power start and stop buttons, flip direction selection switches and emergency stop buttons.
3, The control system is equipped with motor over current, over voltage and over torque protection.
4, The control system is equipped with temperature detection device, when overtemperature stop and alarm.
5, The control system has simple and convenient operation, reliable operation, the whole operation can be near or far control operation, convenient for the operator to use at any station.

Product Parameters

Model LTF-100
The rated load 10T
Maximum size of workpiece 2700*2650mm
Flip Angle ±360°
The chain specification Heavy duty double chain
speed 1500mm/min(constant speed)
The input voltage Phase 380V/50Hz
Machine HEIGHT :5600;WIDTH:6200

Detailed Photos

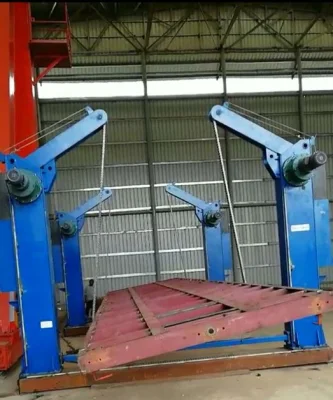

Chain Rotating Machine Beam Rotator for Steel Welding and Turning

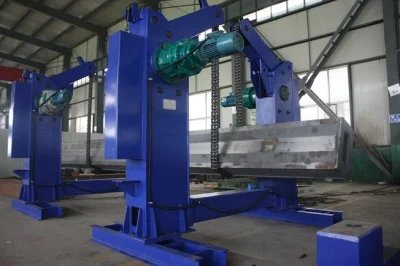

Chain Rotating Machine Beam Rotator for Steel Welding and Turning
Chain Rotating Machine Beam Rotator for Steel Welding and Turning
Chain Rotating Machine Beam Rotator for Steel Welding and Turning
Chain Rotating Machine Beam Rotator for Steel Welding and Turning
Chain Rotating Machine Beam Rotator for Steel Welding and Turning


Company Profile

Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.

Our Services & Strength

*We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.

*Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.

*To support project execution, we are always ready to work as fireman to give prompt supply on project material from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.


Q:Are you a factory or trading company?
A, Yes we are the trading company,but we have a lot of factories that have cooperative relationships, and we can get the best plan and price for you.


Q:Does the machine have CE certificate?
A:Yes, others certifications also can be sent

Q:What's the shipping method?
A: International express and sea transportation,Depend on customer.

Q:Can I use my own forwarder to transport the products for me?
A:Yes, if you have your own forwarder in China, you can let your forwarder ship the products for you.

Q:What's the Payment method?
A:T/T,L/C and other payment method, Depend on customer.

Q: What is our payment term?
A:We can accept the payment by T/T and Trade assueance .

Q: Can you send me the video to show how the machine works?
A: Certainly, we have made video of every machine.

Q: How can I know your machine works well?
A: Before delivery, we shall test the machine working condition for you.And we warmly welcome you to China for inspection.

Q:How to Place an order?
A:Please kinldy send us your order by email,we will confirm the PI with you .

we wish to know the below:your details address,phone/fax number,destination,transportation way;Product informaiton:item number,size,quantity,logo,etc
