Datang Welding Manipulator Column Boom Pipe Welding Equipment

Datang Welding Manipulator Column Boom Pipe Welding Equipment. Factory-direct supply for high-quality welding machines. Shop now for best deals!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
DLH 2030
Condition
New
Application
Welding
Horizontal Trave(mm)
7000
Vertical Travel(mm)
6000
Rotating Angle(mm)
180
Rotating Speed(mm)
0.03-0.3
Boom Elevating Speed(mm)
1
Boom Forward Speed(M/Min)
0.12-1.2
Table Forwaed-Backward Speed(M/Min)
2
Table Rail Distance(mm)
2000
Color
as Customer′s Requirement
Transport Package
Wooden Case / as Your Requirement
Specification
Standard
Trademark
Datang
Origin
Wuxi Jiangsu in China
HS Code
84688000
Production Capacity
50 Sets Per Month

Product Description

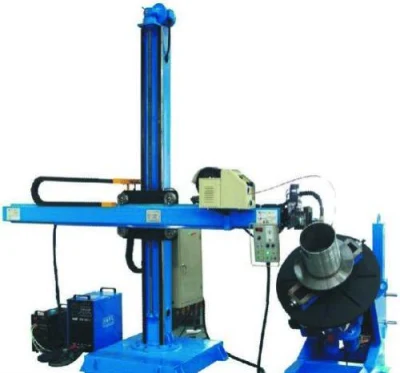

Welding Manipulator

This automatic column and boom manipulator can weld various seams for metal containers, metal welding component in various ways. It is widely used in wind and electrical equipment, the pressure vessel, petrochemical, pipe and steel, the boiler, shipbuilding, repair welding and many other industries. According to customer requirements, it can be installed electrical extension unit inside telescopic arm operator' s seat and safeguard ladders, but also supporting a variety of tracking and monitoring, arc oscillation, transmission devices
Of flux recovery. Manipulator control system using digital control, easy operation, precise control, and other equipment to facilitate linkage control.
Welding manipulator is divided into small, medium, heavy three types; Four structural forms are fixed, fixed rotating, fixed mobile and mobile rotating.

Type DLH6070   DLH5060   DLH4050   DLH3040   DLH2030   DLH1015
Bom lifting stroke  (mm)   6000   5000   4000   3000   2000   1000
Boom  telescope  stroke  (mm)   7000   6000   5000   4000   3000   1500
Bom lifting speed  (m/min)   1   1   1   1   1   0.3
Boom  telescope speed  (m/min) 0.12 to1.2 0.12 to1.2 0.12 to1.2 0.12to 1.2 0.12 to1.2   Manual

Datang Welding Manipulator Column Boom Pipe Welding Equipment
Datang Welding Manipulator Column Boom Pipe Welding EquipmentHand control box with 5m cable.(If you need longer, please  tell me ) Datang Welding Manipulator Column Boom Pipe Welding EquipmentElectrical parts are with famous brand. If you need destinated brand, please tell us. Datang Welding Manipulator Column Boom Pipe Welding EquipmentWireless controller, It is optional

Datang Welding Manipulator Column Boom Pipe Welding Equipment
Datang Welding Manipulator Column Boom Pipe Welding EquipmentCroos slide Datang Welding Manipulator Column Boom Pipe Welding Equipment
Datang Welding Manipulator Column Boom Pipe Welding Equipment
Datang Welding Manipulator Column Boom Pipe Welding Equipment Datang Welding Manipulator Column Boom Pipe Welding Equipment Datang Welding Manipulator Column Boom Pipe Welding Equipment
