Basic Info.
Model NO.
DZG
Welding Turning Rolls Type
Self-Adjusting
Welding Tilter Type
Standard
Condition
New
Color
Customer Requirement
Package
Wooden
Certificate
CE , ISO
Load
5-500t
Transport Package
Wooden
Specification
CE
Trademark
Datang
Origin
China
HS Code
84688000
Production Capacity
50 Sets Per Month
Product Description

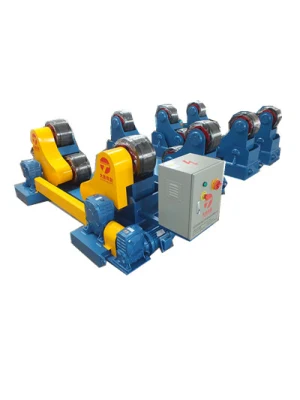

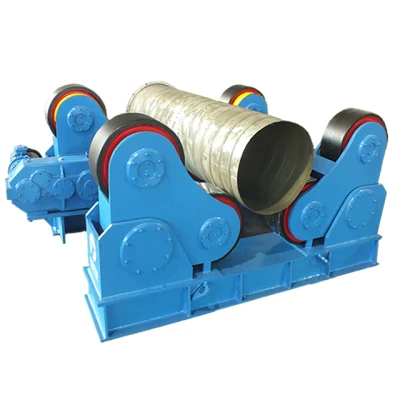

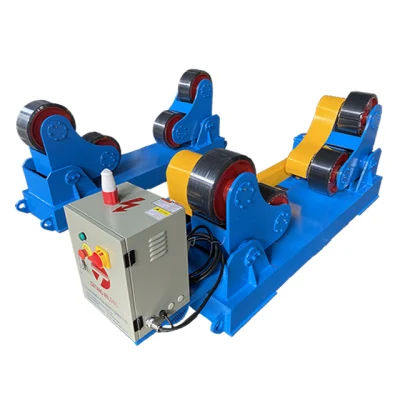

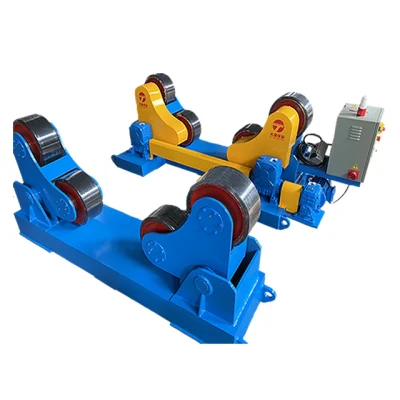

This welding rotator has two types including self alignment and adjustable. It can suit for the diffrence diameter tank
within the range and achieve the stepless speed adjusting under the setted welding parameter, which has the good
character as small noise on the transmission and steady rotation for the working table.
within the range and achieve the stepless speed adjusting under the setted welding parameter, which has the good
character as small noise on the transmission and steady rotation for the working table.
| Model Parameter | DZG-5 | DZG-10 | DZG-20 | DZG-40 | DZG-60 | DZG-80 | DZG-100 | DZG-650 |
| Unit Loading (T) | 5 | 10 | 20 | 40 | 60 | 80 | 100 | 650 |
| Min suitable size of job (mm) | φ 250 | φ 320 | φ 500 | φ 600 | φ 750 | φ 850 | φ 1000 | φ 1800 |
| Max suitable size of job(mm) | φ 2300 | φ 2800 | φ 3500 | φ 4200 | φ 4800 | φ 5000 | φ 5500 | Φ 8000 |
| Rubber wheel diameter (mm) | φ 250 | φ 300 | φ 350 | φ 400 | φ 450 | φ 500 | φ 500 | |
| Rubber wheel thickness (mm) | 100 | 120 | 120 | 120 | 120 | 120 | 120 | |
| Metallic wheel diameter (mm) | φ 240 | φ 290 | φ 340 | φ 390 | φ 440 | φ 490 | φ 490 | Φ 800 |
| Metallic wheel thickness (mm) | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 300 |
| Linear speed (m/h) | 6-60 | |||||||
| Motor power (kw) | 0.75 | 1.1 | 1.5 | 3 | 4 | 4 | 5.5 | 7.5× 2 |
| Speed adjusting way | VFD | |||||||
