Edge Milling Machine Box Beam Machine Welding Bevel

Introducing our high-quality Edge Milling Machine Box Beam Machine Welding Bevel! Made in our factory for precision and efficiency. Order now!
Request a Quote


Basic Info.

Model NO.
Metal Processing Machinery Parts, Metal Engraving Machinery
Milling Angle
-45 Degree ----45degree
Thickness of Being Processed Steel Plate
Plate Length
6m 9m 12m 15m
Transport Package
Sea Worthy Strong Packing
HS Code
Production Capacity

Product Description

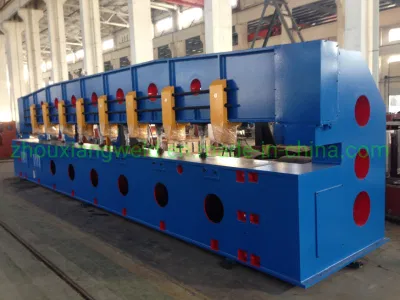

Edge Milling Machine Box Beam Machine Welding Bevel
Model XBJ-6 XBJ-9 XBJ-12
Milling angle 0-45°
Thickness of being processed steel plate (mm) 6-50
Traveling speed of crosswise milling (m/min) 0.1-1m/min
Back stroke milling speed (m/min) 2m/min

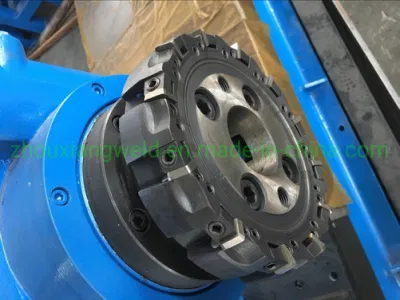

Speed of milling spindle (m/min) 80-400
Working pressure of hydraulic pressure system (MPa)   ≤3.5
Number of the cylinders 8 11 15
Height between the platform and the ground (mm) 900
Power of driving motor(kw) 1.5kw
Power of milling motor(kw) 5.5kw
Power of oil pump motor(kw) 5.5 5.5 5.5
Dimension(a×b×h)(mm) 8680×2600×2100 11680×2600×2300 14200×2600×2400

Edge Milling Machine Box Beam Machine Welding BevelWuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including  Europe,America,Southeast Asia,Middle East and other countries.

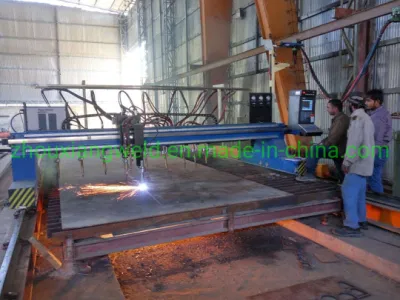

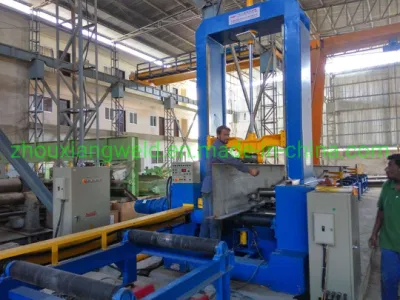

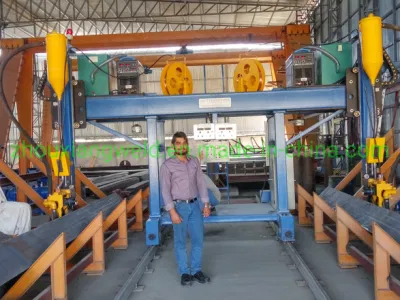

Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.
We have high sincerity to do business with customers all over the world and establish good friendships. Edge Milling Machine Box Beam Machine Welding Bevel Edge Milling Machine Box Beam Machine Welding Bevel Edge Milling Machine Box Beam Machine Welding Bevel
