High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot

Our high performance large loading capacity L-Type three-axis welding table positioner for robot is perfect for your factory needs. Increase efficiency and productivity with this top-of-the-line product.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Customers of Zhou Xiang
  • Main Products
  • Company Profile
Overview

Basic Info.

Model NO.
HBSF
Condition
New
Rated Load
500kg
Table Diameter
1000mm
Elevating Distance
500mm
Overturning Angle
0-180°
Transport Package
Steel Frame
Trademark
Zhouxiang
Origin
China
HS Code
8428909090
Production Capacity
15sets/Month

Product Description

High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot
Product Description

High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot

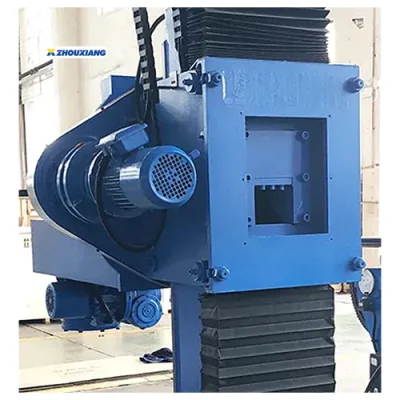

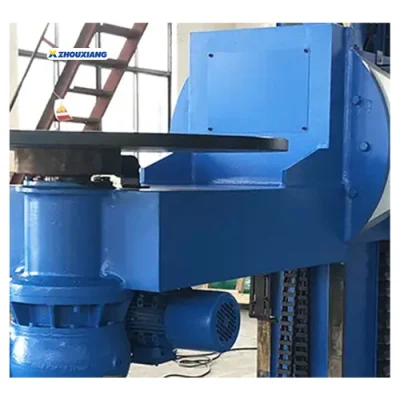

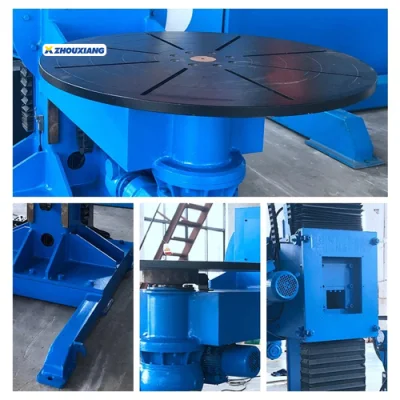

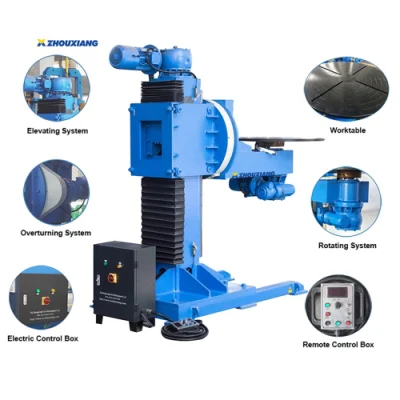

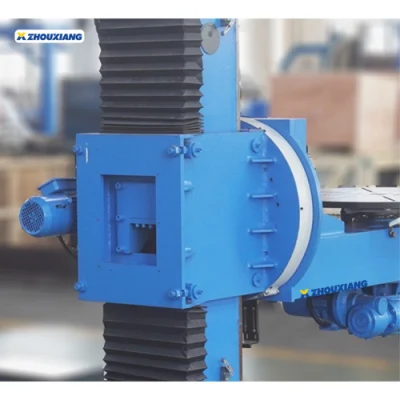

L Type Elevate Tilt and Rotation Welding Positioner

L Type Elevate Tilt and Rotation Welding Positioner Introduction:
     L-type three axis elevating positioner is widely used in welding and assembly of complex workpieces. The L-type welding positioner makes the workpiece in the best welding or assembling position of horizontal or 45° through the rotation, flipping and lifting of the work table. It can be combined with other welding equipment to form a semi-automatic, fully automatic welding machine. The rotary table uses variable frequency stepless speed regulation. L-type welding positioner is mainly used for the welding of special workpieces such as buckets of loaders and buckets of excavators. Widely used in construction machinery, agricultural machinery, automobile transportation machinery and other special industries.
High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot

Model
HBSF-05
HBSF-10
HBSF-20
HBSF-30
HBSH-40
HBSF-50
HBSF-100
Max Loading Capacity (Kg)
500
1000
2000
3000
4000
5000
10000
Rotation Speed (rpm)
0.15---1.5
0.1---1
0.1---1
0.1---1
0.05---0.5
0.05---0.5
0.03---0.3
Rotation Speed Adjust-way
AC VFD change speed
Tilting Speed (rpm)
1,0
1.0
1.0
0.45
0.45
0.2
0.15
Lifting Speed (mm/min)
1.5
1.0
1.0
0.8
0.8
0.4
0.3
Lifting Way
Mechanical
Hydraulic
Rotation Motor (kW)
0.55
1.1
1.5
2.2
2.2
3.0
4.0
Tilting Motor (kW)
0.75
1.5
3.0
3.0
4.0
5.5
7.5
Lifting Motor (kW)
0.55
1.5
3.0
3.0
5.5
5.5
7.5
Worktable Diameter---Wt (mm)
800
800
1000
1200
1200
1500
2000
Worktable Min Height---Ht (mm)
800
800
800
850
850
850
900
Lifting stroke --- Ls (mm)
1000
1000
1200
1200
1200
1200
1200
Machine Height --- Mh (mm)
2600
2700
3000
3500
3500
3800
4200
High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot

Customers of Zhou Xiang

High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot

Main Products

High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for RobotHigh Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot

Company Profile

High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot

Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.                                                                                                                     Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc.

We have high sincerity to do business with customers all over the world and establish good friendships.
High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot High Performance Large Loading Capacity L-Type Three-Axis Welding Table Positioner for Robot
