Product Description
![Light Type Slewing Ring Bearing Slewing Ring 22 1091 01](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00eWRiLVfCOKgQ/Light-Type-Slewing-Ring-Bearing-Slewing-Ring-22-1091-01.webp)
Product Description

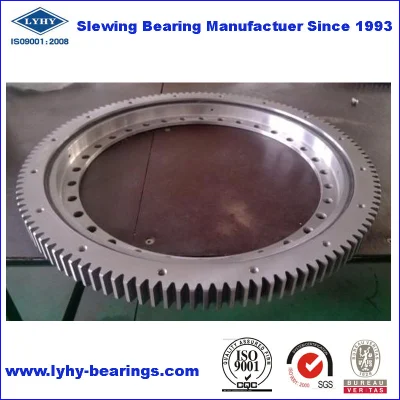

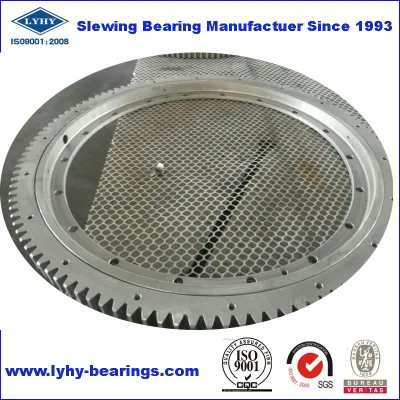

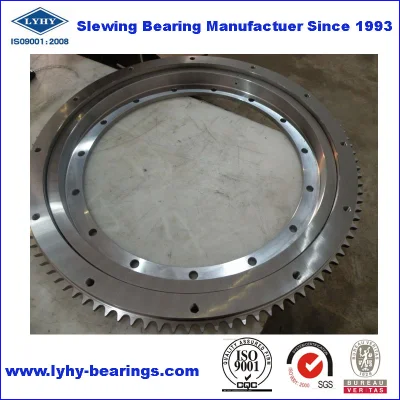

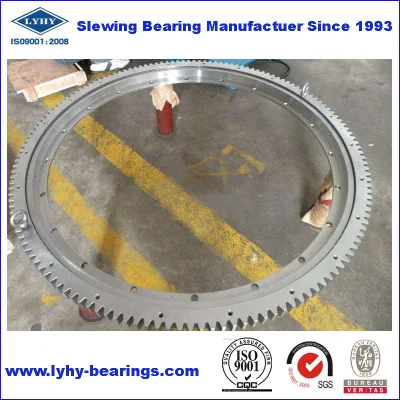

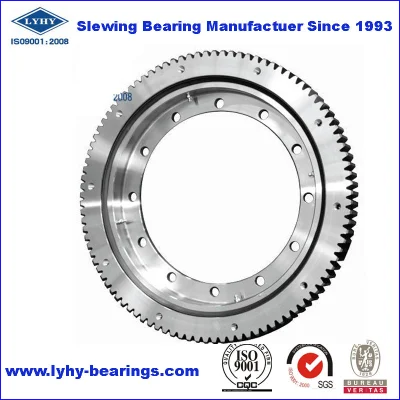

Detailed information for light type flange slewing ring bearing22 1091 01
Structure: Light type flange slewing ring bearing, internal gear, external flange
Bore diameter: 986mm
Outside diameter: 1198mm
Height: 56mm
Weight: 80kgs
M=8
Z=125
Mounting hole on outer ring: 16pcs-φ 18
Mounting hole on inner ring: 24pcs-M12
![Light Type Slewing Ring Bearing Slewing Ring 22 1091 01](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00pQgEGzSRDbuf/Light-Type-Slewing-Ring-Bearing-Slewing-Ring-22-1091-01.webp)
Model | WEIGHT | DIMENSIONS | FASTENING | GEARS | Resistance | |||||||
Kg | De | Di | Be | Fe | Ne | Fi | Ni | m | z | D | kN | |
22 0411 01 | 31 | 518 | 325 | 454 | 490 | 8 | 375 | 12 | 5 | 67 | 335 | 32.4 |
22 0541 01 | 41 | 648 | 445 | 584 | 620 | 10 | 505 | 16 | 6 | 76 | 456 | 40.3 |
22 0641 01 | 48 | 748 | 546 | 684 | 720 | 12 | 605 | 18 | 6 | 93 | 558 | 40.3 |
22 0741 01 | 55 | 848 | 649 | 784 | 820 | 12 | 705 | 20 | 6 | 110 | 660 | 40.3 |
22 0841 01 | 63 | 948 | 736 | 884 | 920 | 14 | 805 | 20 | 8 | 94 | 752 | 54.3 |
22 0941 01 | 71 | 1048 | 840 | 984 | 1020 | 16 | 905 | 22 | 8 | 107 | 856 | 54.3 |
22 1091 01 | 80 | 1198 | 986 | 1134 | 1170 | 16 | 1055 | 24 | 8 | 125 | 1000 | 54.3 |
![Light Type Slewing Ring Bearing Slewing Ring 22 1091 01](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00ClUiHvGPsSra/Light-Type-Slewing-Ring-Bearing-Slewing-Ring-22-1091-01.webp)
![Light Type Slewing Ring Bearing Slewing Ring 22 1091 01](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00BWGlDnREvsrT/Light-Type-Slewing-Ring-Bearing-Slewing-Ring-22-1091-01.webp)
![Light Type Slewing Ring Bearing Slewing Ring 22 1091 01](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00jWUlIaYsvZpT/Light-Type-Slewing-Ring-Bearing-Slewing-Ring-22-1091-01.webp)
![Light Type Slewing Ring Bearing Slewing Ring 22 1091 01](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00ShGiDgfdaZua/Light-Type-Slewing-Ring-Bearing-Slewing-Ring-22-1091-01.webp)
About LYHY bearings
1.introduction:we are a manufacturer of slewing bearing since 1993, our factory occupies a area of 30000square meters with 4 workshop and 1 office building.
2. Featured products: slewing bearing and slewing drive
3. Capital: Current is 1 million RMB, but we are increasing the capital to 10 million RMB
4. Workers: 40
5. Certificate: ISO9001:2008, 3.1 certificate, CCS certificate, Science and Technology Progress Award
6. Annual Exportation: 8million USD
7. Exported countries: (39)
Asia: India, Pakistan, Iran, Signore, Georgia, Malaysia, Vietnam, Thailand, Philippines, Israel, Korea, UAE, Sri Lanka, Saudi Arabia,
Europe: Turkey, Russia, Spain, Czech Republic, Italy, Poland, Slovakia, Bosnia and Herzegovina, Austria, France, Germany, Switzerland, Finland, Ukraine, UK
America: USA, Canada, Mexico, Brazil, Puerto Rico, Peru, Chile
Africa: South Africa, Egypt
Oceania: Australia
![Light Type Slewing Ring Bearing Slewing Ring 22 1091 01](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00sVUiIlYMJZuQ/Light-Type-Slewing-Ring-Bearing-Slewing-Ring-22-1091-01.webp)
Production Process of LYHY slewing bearings
![Light Type Slewing Ring Bearing Slewing Ring 22 1091 01](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00siUlIvGgsSzT/Light-Type-Slewing-Ring-Bearing-Slewing-Ring-22-1091-01.webp)
Quality Control Process of LYHY slewing bearings
![Light Type Slewing Ring Bearing Slewing Ring 22 1091 01](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00KWUlInYJCjpE/Light-Type-Slewing-Ring-Bearing-Slewing-Ring-22-1091-01.webp)
Slewing Bearing Indroduction
1. Single row four point contact ball light type slewing bearings/slewing ring
LYHY is a professional manufacturer in slewing ring bearings since 1993. We can also design and make other standard and non-standard ball bearings, roller bearings and precision bearings as per customer's different technical requirements.
Slewing bearing is also called slewing ring, slewing ring bearing, turntable bearing, and rotary bearing.
The single row ball slewing ring bearing is composed of 2 seat-rings. The balls contact with the circular race at four points, via which the axial force, radial force and resultant moment may be born simultaneously.
2. Structure:
Single row ball slewing bearing has three different types:
Single row ball slewing bearing with no gear
Single row ball slewing bearing with external gear
Single row ball slewing bearing with internal gear
![Light Type Slewing Ring Bearing Slewing Ring 22 1091 01](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00FhRiHQUGRsrt/Light-Type-Slewing-Ring-Bearing-Slewing-Ring-22-1091-01.webp)
3. Features
Single row ball slewing ring bearings have following features:
Compact in structure and light in weight.
4. Application:
Single row ball slewing ring bearings are widely used in slewing conveyers, welding arm and positioned, medium duty cranes, excavators and other engineering machines
![Light Type Slewing Ring Bearing Slewing Ring 22 1091 01](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00OlfiPpRnaSrQ/Light-Type-Slewing-Ring-Bearing-Slewing-Ring-22-1091-01.webp)
LYHY Slewing Bearing Packing
Bearing surface is covered with the anti-rust oil first; and then wrapped with the plastic film;
And then packed with kraft paper and professional belts;
At last, with wooden box totally at the outer packing to invoid the rust or the moist;
We can depend on the customers demand to be packed;
![Light Type Slewing Ring Bearing Slewing Ring 22 1091 01](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00niGlPhUqJZrE/Light-Type-Slewing-Ring-Bearing-Slewing-Ring-22-1091-01.webp)
![Light Type Slewing Ring Bearing Slewing Ring 22 1091 01](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00FiflIMUrOsgQ/Light-Type-Slewing-Ring-Bearing-Slewing-Ring-22-1091-01.webp)
Transportation:
All LYHY slewing ring bearings can be usually delivered timely, usual production time is 15-50 days based on different slew bearings diameters, sometimes slew rings will be in stock.
Slewing bearings can be offered different delivery terms, such as EXW, FOB, CIF, DDU and so on.
Also, slewing rings can be transported by different transport ways, by express (such as DHL, TNT, UPS, FEDEX and so on), by air, by sea, by truck, by railway and so on.
![Light Type Slewing Ring Bearing Slewing Ring 22 1091 01](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00nlYVDNfgaspa/Light-Type-Slewing-Ring-Bearing-Slewing-Ring-22-1091-01.webp)
INSTALLATION OF LYHY SLEWING BEARINGS
![Light Type Slewing Ring Bearing Slewing Ring 22 1091 01](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00wWYlLtRJasgQ/Light-Type-Slewing-Ring-Bearing-Slewing-Ring-22-1091-01.webp)
Preparation:
Make sure that the model is correct and slewing bearing isn't damaged during transportation.
2. Check the appearance and rotational state of the bearing, such as rotational precision clearance, rotating flexibility, seals position, lubrication grease etc.
3. The installation datum plane and bracket installing plane should be clean, grease, burr, paint and other foreign body should be wiped off.
Installation:
1. The screws in the installing plane should be fit with the mounting holes in the slewing bearing
2. The slewing bearing has a soft zone marked with an "s" on the upper surface, when installing the bearing, it is important to ensure that this area is placed in a non-load or infrequent load zone.
3. When the bearing is placed on the supporting frame work it is important to check the interface between these two surfaces. This check should be carried out with the insertion of feel gauges between the two surfaces. If a gap should exist then it is recommended to plane/resurface the effective area so as to remove the gap.
4. Install slewing bearing with high strength screws, and choose appropriate strength bolts. All bolts are required to be tightened evenly. The sequence of this tightening process is shown in Pic. Welding of bearing is not allowed, in the event of welding any adjacent parts, heat transfer shall be avoided so as to cause the bearing to become deformed or change the hardness.
5. After installation, the bearing should be rotated to check for smooth operation and any emission of unusual noise. If either of the aforementioned are noted, then the bearing should be adjusted to eliminate them. The teeth of the largest run-out are coated with green paint.
FAQ:
Q: Are LYHY BEARINGS trading company or manufacturer?
A: LYHY BEARINGS is a professional manufacturer for slewing bearings, thin section bearings, ball bearings and rolling bearings
Q: How do LYHY BEARINGS control quality of their bearing?
A: LYHY BEARINGS has established strict quality control systems, all the products and services has passed ISO9001-2008 Quality Certificate and third party such as CCS, LR,ABS,BV
Q: What is the MOQ?
A: MOQ is 1pc, pls message us for detailed information.
Q: How about the package for LYHY bearings?
A: Standard Industrial packing in general condition (Plastic tube+ professional plastic belts+ plywood case). Accept design package when OEM.
Q: How long is the production time?
A: It takes about 7-40 days, depends on the model and quantity.
Q: How about the shipping?
A: We can arrange the shipment or you may have your own forwarder.
Q: Is sample available?
A: Yes, sample order is acceptable.
Q: Can we use our own LOGO or design on bearings?
A: Yes. OEM is acceptable for LYHY BEARINGS. We can design as per your requirements and use your own LOGO and package design.
5 We can also make the following models:
External Gear:
01 0181 02, 01 0235 00, 01 0289 06, 06 0307 00, 01 0342 00, 21 0411 01, 31 0411 01, 01 0422 01, 06 0400 00, 06 0475 22, 21 0541 01, 31 0541 01, 06 0508 00, 01 0555 01, 06 0574 09, 21 0641 01, 31 0641 01, 01 0626 00, 06 0675 00, 21 0741 01, 31 0741 01, 01 0765 01, 06 0734 00, 21 0841 01, 31 0841 01, 06 0823 18, 01 0880 00, 21 0941 01, 31 0941 01, 01 0947 00, 06 0980 09, 21 1091 01, 31 1091 01, 01 1050 00, 06 1116 00, 01 1180 00, 01 1295 01, 06 1250 21, 06 1390 03, 01 1410 00, 01 1595 00, 06 1595 04, 01 1712 00, 01 1845 02, 06 1790 09, 01 1895 00, 01 2040 03, 06 2002 00, 01 2202 00, 01 2130 00, 06 2242 00, 01 2560 01, 06 2500 01, 06 2810 09, 01 3031 00
Internal Gear
02 0245 00, 02 0308 01, 07 0380 01, 32 0411 01, 02 0422 01, 07 0489 11, 02 0520 00, 32 0541 01,
22 0541 01, 07 0573 00, 32 0641 01, 02 0626 01, 22 0641 01, 07 0673 00, 32 0741 01, 02 0720 02, 22 0741 01, 07 0770 00, 32 0841 01, 02 0820 00, 22 0841 01, 07 0849 00, 07 0885 01, 32 0941 01, 22 0941 01, 02 0935 00, 07 0946 05, 32 1091 01, 02 1050 00, 07 1075 01, 22 1091 01, 07 1140 13, 02 1225 00, 02 1292 00, 07 1304 04, 07 1385 03, 02 1415 00, 02 1565 02, 07 1606 02, 02 1715 00, 02 1805 02, 07 1830 04, 02 2040 00, 07 1997 04, 02 2022 00, 02 2202 00, 07 2400 00, 02 2560 00, 02 2618 00, 07 2810 09, 02 3074 01
Without Gear
03 0181 07, 03 0217 00, 08 0220 05, 03 0260 00, 08 0270 04, 08 0307 00, 08 0340 04, 03 0342 05,
03 0360 00, 08 0405 05, 03 0402 00, 33 0411 01, 08 0400 00, 23 0411 01, 08 0475 08, 33 0541 01,
03 0525 01, 23 0541 01, 08 0574 08, 03 0600 02, 33 0641 01, 23 0641 01, 33 0741 01, 08 0675 00,
08 0675 00, 23 0741 01, 03 0785 00, 33 0841 01, 23 0841 01, 08 0823 08, 33 0941 01, 23 0941 01,
03 0980 02, 08 0980 06, 33 1091 01, 23 1091 01
