Pipe Rotator Self-Aligning Welding Rurning Rolls

Find high-quality Pipe Rotator Self-Aligning Welding Turning Rolls at our factory. Get efficient and reliable welding equipment for your business.
Request a Quote


Basic Info.

Model NO.
Vessel Diameter
Wheel Velocity
6-60 M/H
Power of Motor
1.5 Kw
Transport Package
Electric Control Box with Wooden Package,Mainframe
Load 20, 000kg
Production Capacity
20 Sets Per Month

Product Description

Pipe Rotator Self-aligning Welding Rurning Rolls

MISA supply all kinds of welding rotators, including self-aligning type and conventional type. To learn more about fit-up rotators and anti drift turning rolls, please contact with our sales team.

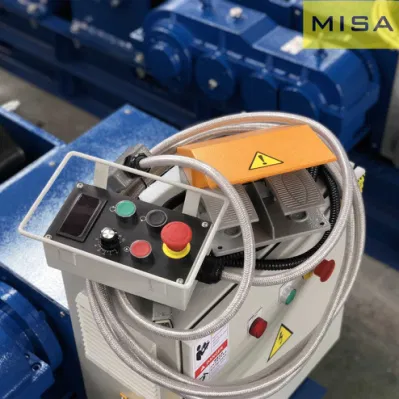

Pipe Rotator Self-Aligning Welding Rurning Rolls
1. Loading capacity from 2Ton to 2000Ton

2. The distance between the rollers can be automatically adjusted to match the pipe

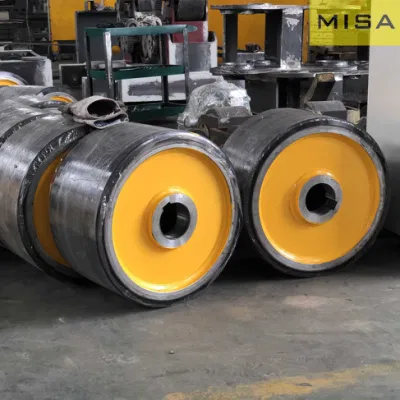

3.  Wheels material can be adopted Polyurethane, Metal and Rubber

4. Can be customized for motorized moving on the track

5.  Help customer choose the right model of Welding Rotators according to your job site
MISA Welding Rotators

              Conventional Welding Rotators                              Self-aligning Welding Rotators

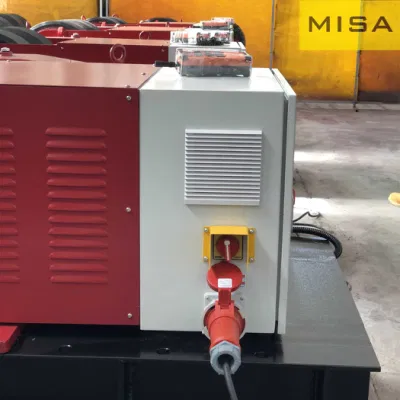

Pipe Rotator Self-Aligning Welding Rurning Rolls

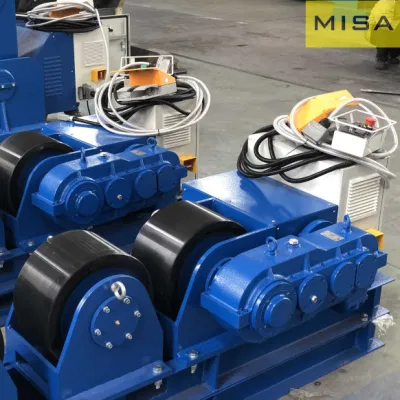

Pipe Rotator Self-Aligning Welding Rurning Rolls

Why Choose MISA Welding Rotators:

√ Standard match with CUL and CE

√ Professional design team

√ Motor power supply is equipped with safety protection

√ Perfect after-sales

√ 13 months warranty.

Self-aligning Welding Rotators - The Comprehensive FAQ Guide

With the increasing frequency of use of welding rotators, more large-scale industrial manufacturing industries must use rotators to assist welding production.

Do you have a lot of questions about the self-aligning welding rotators? We have compiled some common instructions on the use of the self-aligning welding rotators for you.

What is the Self-aligning Welding Rotator?

Self-aligning welding rotator is just one of many devices that help you to carry out the welding production process more conveniently.

Pipe Rotator Self-Aligning Welding Rurning Rolls

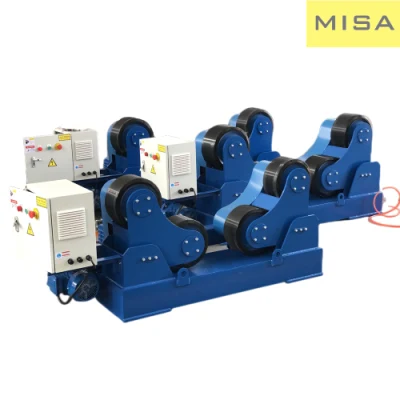

Example of what the self-aligning welding rotator looks like

Similar to the positioner, the self-aligning welding rotator can help you do not need to manually move the workpiece during the welding process.

What they do is basically to drive a cylindrical container or any other type of circular workpiece to rotate at a uniform speed, which can switch the direction of forward rotation and reverse rotation.

Can You Make a DIY Self-aligning Welding Rotator?

Of course you can! Tell us your needs, our design team will design what you think in your mind according to your ideas.
Of course it is based on a feasible operating plan.

Pipe Rotator Self-Aligning Welding Rurning Rolls

A homemade or a DIY self-aligning welding rotator without any additional parts.

However, many people are confused in distinguishing between welding rotators and positioners. Welding positioners are the machines you use where you clamp various workpieces, welding rotators rotate, twist, and turn workpieces automatically.

What Are the Parts of a Self-aligning Welding Rotator?

Pipe Rotator Self-Aligning Welding Rurning Rolls

The picture clearly shows all the parts of the self-aligning welding rotator.

The regular self-aligning welding rotator is comprised of two (2) parts: One Idler, One Drive.


Idler Supporting Unit

Idler bracket, also known as "base". It can carry wheels, and the workpiece can rotate on it.

The components supported by the idler include:

  • Drive rotator
  • Driven wheel frame

Motorized Drive Unit

Similar to the structure of the idler support unit, the motorized drive unit is also composed of different parts and components.

The motorized drive device is a part of the self-aligning welding rotator, which emits power and energy to make the self-aligning welding rotator work.

Among them, the controller and the motor are the two most important parts of the motorized drive device.

These are the components of the
self-aligning welding rotator . Some welded rotor manufacturers and suppliers may add some other parts to enrich this product. These are the common parts that are necessary for self-aligning welding rotator .

Welding Rotators VS Welding Positioners

Almost everyone is confused about this: What is the difference between a welding positioner and a welding rotator? Is the function the same?

This is a good question.
Pipe Rotator Self-Aligning Welding Rurning Rolls
Sample image of the appearance of the welding positioner
The welding positioner is a device used to drag the workpiece to be welded to move the welding seam to the ideal position for welding operation.
The welding positioner worktable has a degree of freedom of overall turning. The workpiece can be turned over to the ideal welding position for welding. In addition, the worktable has a degree of freedom of rotation.
This product is mainly composed of rotating machine head, displacement mechanism and controller. The speed of the rotating machine head is adjustable, with an independent speed regulation circuit, and the DIP switch directly presets the length of the weld. The inclination angle of the table can be adjusted as required.

The welding
rotator drives the workpiece, parts and components to rotate; the welding positioner is repositioning, can rotate and flip, and fix the workpiece in an ideal position so that the welder can reduce the workload.

In which welding processes can the Self-aligning Welding Rotator be used?
Pipe Rotator Self-Aligning Welding Rurning Rolls

The self-aligning welding rotator can be used in the production process of submerged arc welding or SAW, and the welding work goes on smoothly.

The self-aligning welding rotator can be used to supplement and assist a large number of welding processes, including but not limited to:
  • Submerged Arc Welding (SAW)
  • Tungsten Inert Gas (TIG) Welding
  • Metal Inert Gas (MIG) Welding
  • Arc Welding
If you choose to use a self-aligning welding rotator to complete any of these processes, you can expect faster, more accurate, more precise and higher quality products.

Are there manually adjustable welded Rotators?

Pipe Rotator Self-Aligning Welding Rurning Rolls
The rotor without a controller or power box is a manually adjusted welding rotator.

Therefore, the manual adjustment welding turning roll is a rotator without computer numerical control or CNC functions.

This basically means that workers must manually adjust the speed, frequency and height of the spinner by inputting it to the control system.

This is the true definition of the manual adjustment of the welding rotator.

You can buy a manually adjustable welding rotator and try it out. But in fact, because it requires less control when you use it, experts will even recommend them even more.


Self-aligning Welding Rotator Applications

The self-aligning welding rotator can be widely used in many welding jobs and business fields.
Pipe Rotator Self-Aligning Welding Rurning Rolls

It is most commonly used in the production of storage vessels and pressure vessels, with the help of the function of self-aligning welding rotators.

In addition, the most common application of self-aligning welding rotator also includes welding other equipment:

1. Oil storage tank
2. Water tank
3. Shipyard and ship parts
4. Pressure vessel


Different Types Of Self-aligning Welding Rotators

Contrary to the perception of many people, the self-aligning welding rotators are not limited to a single model of machine.

Pipe Rotator Self-Aligning Welding Rurning Rolls
Fit Up Growing Line - one of the most commonly used welding rotators

In fact, there are many other types of welding rotators on the market today. Some of the most common types include:

Adjustable Rotators

These are welding rotators whose steering rollers can be easily adjusted in width and distance to suit the size of the workpiece, or the circumference and width of the material you will be welding.

Fit Up Welding Rotators

Similar to the adjustable rotators, the rotator can adjust the wheel spacing to suit the size of the workpiece. The accuracy and precision of the weld can be guaranteed.

Pipe Pinching Rotators

The pipe pinching rotators, judging from its terminology, is a welding rotator that is clamped on pipes or any type of cylindrical objects to help them perform automatic welding.

These machines are the best and the most ideal for solving the problems of tilting or rotating pipes and other materials of the similar state, size, and dimensions.

Self-Aligning Welding Rotators

The self-aligning welding rotator can automatically adjust the roller to accept any diameter cylinder within the specified diameter range. This type of machine is usually used to deal with changes in the diameter of the cylinder, from job to job. The roller shell of this type of turning roll is hinged on the based and opens automatically when a larger diameter workpiece is introduced. In this type of rotator, each roller bracket assembly has two independent roller assemblies, so it can support a wider range of work. The two sets of rollers of the drive unit provide final drive to provide better traction for work

Why does the workpiece move on the self-aligning welding rotator?

When using a self-aligning welding turning roll, both the rotor and the weldment are circular, the distance between the rotor and the cylinder is the same as the length of the cylinder, and the axis is parallel, which will not cause shaking.

If one of the rollers of the self-aligning welding rotator is damaged, the workpiece on the rotator may cause shaking.

Of course, if the shape or size of the workpiece is irregular, it will also cause shaking. This is because the axis of the rotor is not parallel to the axis of the workpiece.

What are the effects of using the welding rotator on the processing quality?

During the welding process, the self-aligning welding rotator will be used to complete related operations. The professional design of the self-aligning welding rotator and advanced production technology, and an automatic tracking system to achieve the application purpose, make the positioning more accurate. When the self-aligning welding rotator is processed and produced, the process design can be carried out according to customer requirements, so that the self-aligning welding rotator can better meet the needs of use.

Any problems encountered during processing and production can be analyzed, controlled and adjusted through appropriate methods. In addition, the self-aligning welding rotator will be tested on the process parameters to make the parameter setting more reasonable, make the processing operation consistent with the equipment setting, and achieve better operation control effects.

The welding rotators have trolley tilting anti drift rotator. Accordingly this decive has advantages of compact structure, small cubage, beautiful shape, ligtweight, convenient operating and so on.
The machine can assort all kinds of auto welding or manual welding, improving welding quality, lessening welding labor and improve productivity. We can provide solutions to unique welding rotator according to the customer's requirement.

The welding rotator can use together with column and boom and SAW system to realize inside and outside girth and longitudinal welding.

Some other FAQs about the product

1. What are the materials of the wheels?

Rubber, polyurethane or steel wheels.
2. What is the difference between conventional and self-aligning?

The conventional welding rotator requires the customer to manually adjust the distance of the rollers within the effective range of the equipment. It's a bit convenient, flexible, and low price.
The self-aligning welding rotator only needs to place the cylinder on the equipment, and there is no need for manual adjustment within the effective range of the equipment, but the price is higher than conventional.

3. What is included in one set of Welding Rotator ?

One set Welding Rotator include 1 drive roller & 1 idler roller, and 1 electrical cabinet with hand remote.

4. How to adjust the base of the conventional welding rotator ?

We have bolt adjustment and screw adjustment to choose from. If there is no special requirement, it will default to bolt adjustment.
5. Do you provide warranty?

We provide a 13-month warranty and can provide customers with technical guidance for life.
6. Replacement parts can provide it?

We provide it for free during the warranty period, and charge for it after the warranty period.

Features of self-aligning welding rotator :

1. The self-aligning welding rotator bracket automatically adjusts the angle of the roller bracket according to the diameter of the workpiece to meet the support and rotation drive of workpieces of different diameters.

2. Adopt frequency converter stepless speed regulation, wide speed regulation range, high precision and large starting torque.

3. Adopting high-capacity bearings, no tremor in rotation, and long service life.

4. Combined box-type base, with high rigidity and strong bearing capacity.

5. The specially designed grooved steel core polyurethane roller has high friction, long life and strong bearing capacity.

6. Advanced manufacturing technology, good straightness and parallelism of each shaft hole, minimizing the amount of movement of the workpiece caused by insufficient manufacturing precision.


Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
