40 Ton Conventional Welding Rotator for Pressure Vessel PU Wheels Welding and Positioning Equipment

"Get the 40 Ton Conventional Welding Rotator for Pressure Vessel PU Wheels Welding and Positioning Equipment at our factory. High-quality and efficient welding solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HGK-40
Wheel Width
200mm
Vessel Diameter
500-4800mm
Wheel Velocity
6-60m/H
Power of Motor
2*1.5kw
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Load 40, 000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month

Product Description

40 ton Conventional Welding Rotator For Pressure Vessel PU Wheels Welding And Positioning Equipment

Quick Details:

Type: Welding rotator/Welding turning rolls/Pipe welding rotator
Brand: MISA
Condition: 100% brand new
Model number: HGK
Place of origin: Wuxi China(Mainland)
Usage: Welding
Voltage: 110V-600V
Color: Yellow/Blue/Grey
Dimensions and weight: According to the model

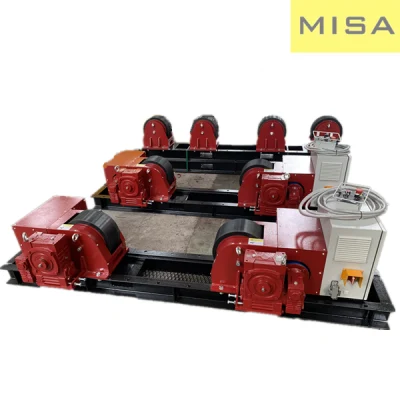

Welding Rotator Product Photo:


40 Ton Conventional Welding Rotator for Pressure Vessel PU Wheels Welding and Positioning Equipment
Welding Rotator Product Parameter:
Type Max loading (kg) Vessel diameter(mm) Dia. and width of the wheel(mm) Roller linear velocity(m/h)







6-60











Power of motor(kw)
Rubber rollers Metal rollers
HGKS-5 5,000 Φ250-2300 Φ250×100 2×Φ240×20 2X0.37
HGKS-10 10,000 Φ320-2800 Φ300×120 2×Φ290×25 2X0.55
HGKS-20 20,000 Φ500-3500 Φ350×120 2×Φ340×30 2X0.75
HGKS-40 40,000 Φ600-4200 Φ400×120 2×Φ390×40 2X1.5
HGKS-60 60,000 Φ750-4800 Φ450×120 2×Φ440×50 2X2.2
HGKS-80 80,000 Φ850-5000 Φ500×120 2×Φ490×60 2X3
HGKS-100 100,000 Φ1000-5500 Φ500×120 2×Φ490×80 2X3
HGK-S150 150,000 Φ1000-6000 / Φ620×220 2X4
HGKS-250 250,000 Φ1800-7500 / Φ660×260 2X5.5
HGKS-500 500,000 Φ1800-8000 / Φ750×400 2X7.5

The welding rotator can be adjusted automatically according to the diameter of the cylinder, which is divided into automatic and manual. The driving force includes a worm gear with a reducer, a cycloid pin wheel deceleration, etc. or a dual motor drive.
According to different user needs, the rollers can be divided into polyurethane wheels or steel wheels.
It can be used with other devices in use. It is widely used in welding, polishing, rubber lining and equipment assembly of large workpieces, especially circular cylinders.
It can even be used with other tooling for welding and assembly of vertebral bodies and irregular rotating bodies.

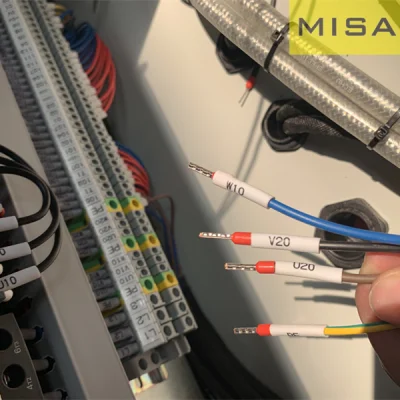

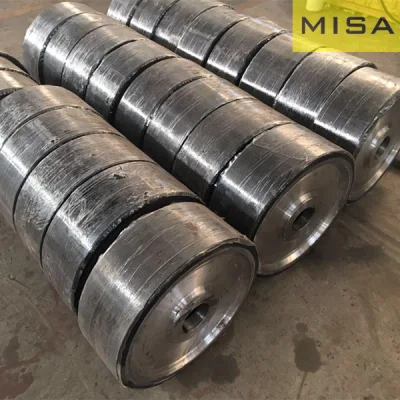

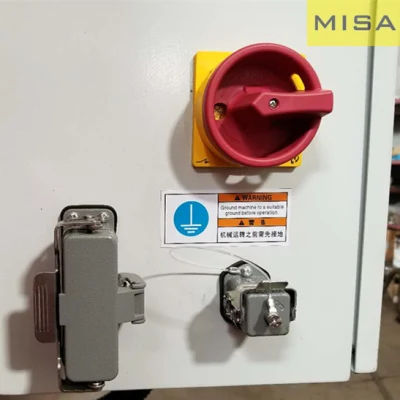

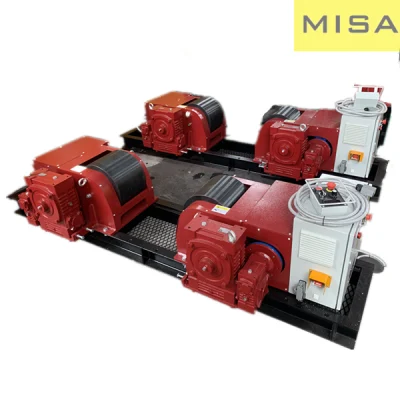

Welding Rotator Detail Photo: 40 Ton Conventional Welding Rotator for Pressure Vessel PU Wheels Welding and Positioning Equipment

Kindly Noted:

1.  Model from 5T-100T, others please let us know.
2.  One set of welding turning rolls include one drive & one idler, also customer can choose other combinations.
3.  Voltage standard is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
4.  Control panel is wired control ,or you can choose wireless control.
5.  If need more special requirements ,we'll study with our engineer.
6. The revolve adopt A.C. Inverter motor driving.


Competitive Advantage:

1. All the bolt using 12.9 grade Bolt , not using 8.4 grade. Making the machine more stronger.
2. 20 % overweight design , could making the rotator focus more.
3. Double motors and reducers , and if the workpiece stress is different ,could ensure the rotator working properly, and longer service life.
4. Double row wheels ,not only making the wheels stable, but also artifacts to increase friction.
5. All the parts using well-known brands in China or other countries . Quality is more reliable .
6. Using double row bearings.


Packaging Details:  1.  Main frame naked;
                                  2.  Control box wrapped by plastic film;
                                  3.  Small parts adopts plywood case.
Delivery Detail:  30 days after receive the down payment
