Model NO.
CZG
Max Loadimg Weight
Customized
Wheel Material
Rubber or Steel,or Both
Suitable Diameter of Tank
500-3500mm
Steel Wheel Diameter
340mm
Steel Wheel Width
300mm
Linear Speed
6-60m/H
Power
1.1 Kw
Warranty
1 Year
Color
Customized
Input Voltagge
380-600V
Used for
Pipe Tank Welding Rotator
Lead Time
20 Days
Rotator Type
Long Axis Rollers
Length of Welding Rotator
Customized
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Product Description
The rollers of the long-axis welding roller frame are arranged along two parallel axes.
One row connected with the driving device is the driving wheel, and the other row is the driven wheel.
The two rows of roller racks can also be designed as driving wheels according to customer requirements.
The long-axis adjustable welding roller frame is mainly used for the assembly and welding of slender circular workpieces.
One row connected with the driving device is the driving wheel, and the other row is the driven wheel.
The two rows of roller racks can also be designed as driving wheels according to customer requirements.
The long-axis adjustable welding roller frame is mainly used for the assembly and welding of slender circular workpieces.

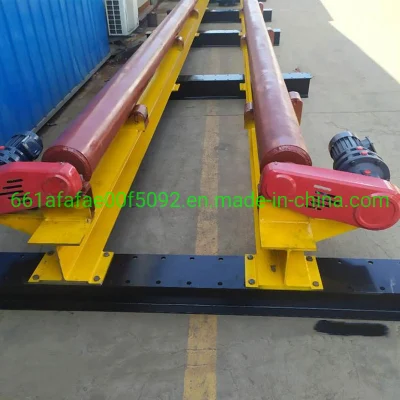

![380V 50Hz 10 Ton Long Axis Pipe Joining Fit up Welding Rotator Rolls](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00jqJWSKuowLbc/380V-50Hz-10-Ton-Long-Axis-Pipe-Joining-Fit-up-Welding-Rotator-Rolls.webp)
Long axis type Pipe tank welding roller frame is mainly used for the assembly and welding of the cylinders, and it is one of the indispensable tooling in the welding of pressure vessel products.
The long-axis welding roller frame is arranged along two parallel axes, one row connected with the driving device is the driving roller, and the other row is the driven roller.
Brand : | Lemar | Model : | CZG |
Type : | Adjustable welding rotator rollers | Voltage : | 380(V) |
Driven size : | 2222(mm) | Drive size : | 200000(mm) |
Power : | 2x75(kw) | Speed mode : | Motor frequency conversion stepless speed regulation |
Wheel diameter : | 219(mm) | Wheel width : | 1000(mm) |
Roller speed : | 1000(r/min) | Suitable size : | 3000(mm) |
Loading : | 10 Ton | Weight: | 18000 KG |
The long-axis welding roller frame is customized by the user according to the user's work-piece situation.

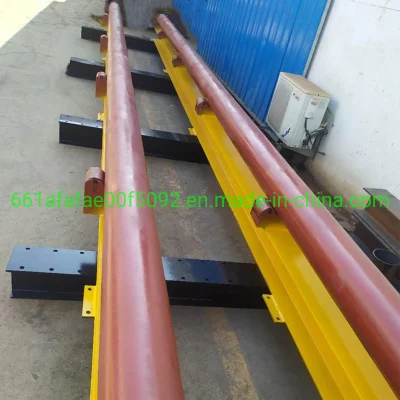

![380V 50Hz 10 Ton Long Axis Pipe Joining Fit up Welding Rotator Rolls](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00ZbAhKwgJcLkc/380V-50Hz-10-Ton-Long-Axis-Pipe-Joining-Fit-up-Welding-Rotator-Rolls.webp)

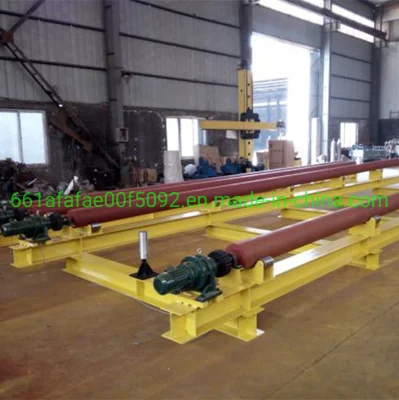

![380V 50Hz 10 Ton Long Axis Pipe Joining Fit up Welding Rotator Rolls](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00ncAWZGpYEIoq/380V-50Hz-10-Ton-Long-Axis-Pipe-Joining-Fit-up-Welding-Rotator-Rolls.webp)
1. Structural form: integral or segmented structural form; used for 8-16 cubic tankers.
2. Mainly used for butt welding of mixing cylinders of cement mixer trucks; the diameter of the cylinder is ø1800-2600 mm, and the center distance between the two rollers is adjustable;
3. The load of the long-axis roller frame is 5-20 tons; the length of the roller is 6000-10000mm; the diameter of the roller is ø260-325 mm;
4. Adopt AC variable frequency speed regulation control; and replace the remote operation box;
5. After loading, the operation is stable and the speed regulation is reliable; the connection between the reducer and the roller adopts the transmission shaft (universal) connection;
6. Drive mode: two rollers are driven at the same time; drive type: AC electric;
7. Fix the frame and chassis steel plate welding parts, and anneal the stress after welding.
2. Mainly used for butt welding of mixing cylinders of cement mixer trucks; the diameter of the cylinder is ø1800-2600 mm, and the center distance between the two rollers is adjustable;
3. The load of the long-axis roller frame is 5-20 tons; the length of the roller is 6000-10000mm; the diameter of the roller is ø260-325 mm;
4. Adopt AC variable frequency speed regulation control; and replace the remote operation box;
5. After loading, the operation is stable and the speed regulation is reliable; the connection between the reducer and the roller adopts the transmission shaft (universal) connection;
6. Drive mode: two rollers are driven at the same time; drive type: AC electric;
7. Fix the frame and chassis steel plate welding parts, and anneal the stress after welding.
![380V 50Hz 10 Ton Long Axis Pipe Joining Fit up Welding Rotator Rolls](http://img6.grofrom.com/www.langdeweldshop.com/226f3j00nbmiSDucMIqk/380V-50Hz-10-Ton-Long-Axis-Pipe-Joining-Fit-up-Welding-Rotator-Rolls.webp)
