Basic Info.
Model NO.
ZTG-100
Usage
Welding and Cutting Turning
Exported to
Canada,USA,Russia,Saudi Arabia,Iraq,Greece,France
Input Voltage
3p 220V-470V 50-60Hz
Wheel Diameter
Polyurethane(PU)/Steel Metal
Roller Linear Speed
6-60m/H
Motor Power
7.5kw
Speed Mode
AC Variable Frequency Stepless Speed Regulation
Certificate
CE ISO
Brand
Lemar
Warranty
1 Year
Wheels Quantity
8 Wheels
Speed Adjust Way
VFD Adjustment
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Product Description

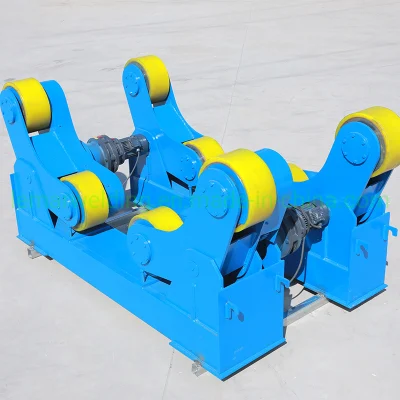

100 Ton Adjustable tank roller self aligning turning rotators
When welding equipment is used, the main research content and development direction are medium and high power.
The resistance welding microcomputer control quality monitoring of the equipment, inverter resistance welding technology, intelligent and expert system, and flexible resistance welding complete sets of equipment.
Specifications:
When welding equipment is used, the main research content and development direction are medium and high power.
The resistance welding microcomputer control quality monitoring of the equipment, inverter resistance welding technology, intelligent and expert system, and flexible resistance welding complete sets of equipment.
Specifications:
Model
| Loading Capacity (kg) | Pipe/Tank Diameter (mm) | Rubber Roller Dia. & Width (mm) | Roller Speed (m/h) | Motor Power (kw) |
Speed Adjust
| |
Rubber Roller | Steel Roller | ||||||
ZTG-5 | 5000 | Φ250-2300 | Φ250*100 | Φ240*20*2 | 6-60 | 0.75 | Variable Frequency Drive (VFD)
|
ZTG-10 | 10000 | Φ320-2800 | Φ300*120 | Φ290*25*2 | 1.1 | ||
ZTG-20 | 20000 | Φ500-3500 | Φ350*120 | Φ340*30*2 | 1.5 | ||
ZTG-30 | 30000 | Φ600-3800 | Φ350*120 | Φ340*30*2 | 2.2 | ||
ZTG-40 | 40000 | Φ600-4200 | Φ400*120 | Φ390*40*2 | 3 | ||
ZTG-50 | 50000 | Φ700-4500 | Φ400*120 | Φ390*40*2 | 4 | ||
ZTG-60 | 60000 | Φ750-4800 | Φ450*120 | Φ440*50*2 | 4 | ||
ZTG-80 | 80000 | Φ850-5000 | Φ500*120 | Φ490*60*2 | 5.5 | ||
ZTG-100 | 100000 | Φ1000-5500 | Φ500*120 | Φ490*70*2 | 7.5 | ||
ZTG-150 | 150000 | Φ1100-6000 | Φ500*120 | Φ600*Φ280 | 2*5.5 | ||
| ZTG-250 | 250000 | Φ1200-7000 | / | Φ700*380 | 2*5.5 | ||
| ZTG-500 | 500000 | Φ1800-8000 | / | Φ850*350 | 2*7.5 | ||
What is a good quality welding roller rotator?

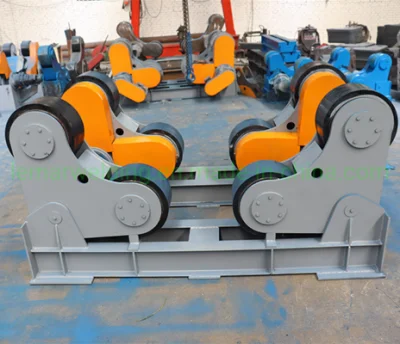

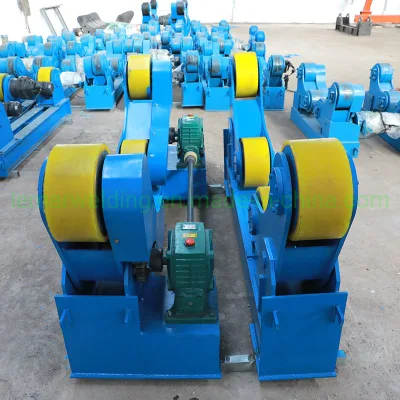

The adjustable roller rotator is mainly used for welding, polishing, rubber lining and assembly of cylindrical cylinders, and can also be used in conjunction with other tooling for assembly and welding of cones and segmented unequal diameter rotators.
1. It is composed of a driving roller and a driven idle roller. Both the driving roller and the driven roller have two rollers, and the main dual motors are driven by two wheels. This method has a larger driving torque than a single motor and can better ensure the rotation of the workpiece. smooth and stable operation.
2. Both the base of the rotators adopt tailor-welded structure with different numbers of reinforcing ribs welded.
The overall structure has good rigidity and strong torsion resistance.
3. After welding, the turning rollers have undergone overall stress relief treatment and are undergoing machining, which can ensure long-term stable work.
4. Each shaft hole of the swing arm of the welding turning roller is formed by one-time clamping on the boring machine, with high concentricity and flexible rotation of the roller.
5. The roller cores of the driving frame and the driven frame are all steel wheels, which are processed and formed after heat treatment.
6. The roller adopts the all-rubber combination method, and the steel core support roller is covered with heat-resistant rubber, which has a large load-bearing capacity, and the rubber layer has a long service life without deformation or degumming.
7. According to the diameter of the workpiece, the user can adjust the distance between the two wheels through the reserved screw hole to adapt to the change of the diameter of the workpiece.
8. Wuxi Lemar Machinery Equipments Co.,Ltd self aligning welding rotators adopt AC frequency conversion technology stepless speed regulation, imported frequency converter, large low-speed torque, excellent performance, large speed regulation range, with multiple protection functions of over-current, over-voltage and overload.

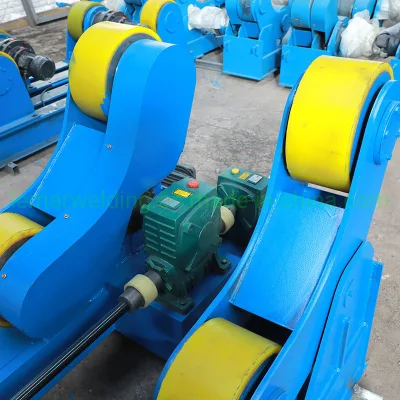

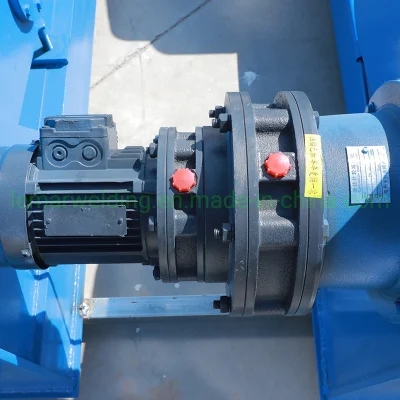

9. The reducer adopts high-quality cycloidal pinwheel reducer, adopts planetary reducer transmission structure and rolling contact method, has the advantages of small size and durability, small simultaneous efficiency loss, and mechanical efficiency as high as 90%.
The adjustable roller rotator is mainly used for welding, polishing, rubber lining and assembly of cylindrical cylinders, and can also be used in conjunction with other tooling for assembly and welding of cones and segmented unequal diameter rotators.
1. It is composed of a driving roller and a driven idle roller. Both the driving roller and the driven roller have two rollers, and the main dual motors are driven by two wheels. This method has a larger driving torque than a single motor and can better ensure the rotation of the workpiece. smooth and stable operation.
2. Both the base of the rotators adopt tailor-welded structure with different numbers of reinforcing ribs welded.
The overall structure has good rigidity and strong torsion resistance.
3. After welding, the turning rollers have undergone overall stress relief treatment and are undergoing machining, which can ensure long-term stable work.
4. Each shaft hole of the swing arm of the welding turning roller is formed by one-time clamping on the boring machine, with high concentricity and flexible rotation of the roller.
5. The roller cores of the driving frame and the driven frame are all steel wheels, which are processed and formed after heat treatment.
6. The roller adopts the all-rubber combination method, and the steel core support roller is covered with heat-resistant rubber, which has a large load-bearing capacity, and the rubber layer has a long service life without deformation or degumming.
7. According to the diameter of the workpiece, the user can adjust the distance between the two wheels through the reserved screw hole to adapt to the change of the diameter of the workpiece.
8. Wuxi Lemar Machinery Equipments Co.,Ltd self aligning welding rotators adopt AC frequency conversion technology stepless speed regulation, imported frequency converter, large low-speed torque, excellent performance, large speed regulation range, with multiple protection functions of over-current, over-voltage and overload.
9. The reducer adopts high-quality cycloidal pinwheel reducer, adopts planetary reducer transmission structure and rolling contact method, has the advantages of small size and durability, small simultaneous efficiency loss, and mechanical efficiency as high as 90%.
