Basic Info.
Model NO.
YGB-100
Max Eccentricity Distance
200mm
Tilting Angle
0-120°
Voltage
110V/220V
Condition
New
Function
Pipe Flange Welding Turning Positioner
Model
Ygb-100
Loading Weight
100kg
Motor Power
200W
Welding Positioner Rotate Speed
20-4000mm/Min
Press Roller Lifting Mode
Wheel Adjust
Input Power
AC220V 50jz
Suitable for Pipe Diameter
50-300mm
Tilt Angle
90 Dgr
Machine Weight
150kg
Brand
Lemar
Optional
Foot Pedal
Lead Time
7 Days
Other Name
Pipe Welding Rotator
Warranty
1 Year
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
3000PCS/Year
Packaging & Delivery
Package Size
170.00cm * 180.00cm * 190.00cm
Package Gross Weight
280.000kg
Product Description
100KG Welding positioner for Pipes Rotating Tilting Flange Automatic welding
At the needs of the majority of customers, our company has recently developed a rolling roller tube welding machine on the basis of the original seat Welding Positioner design.

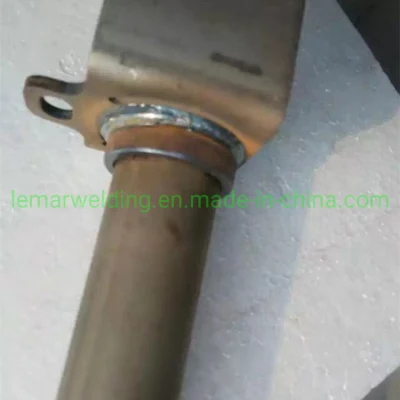

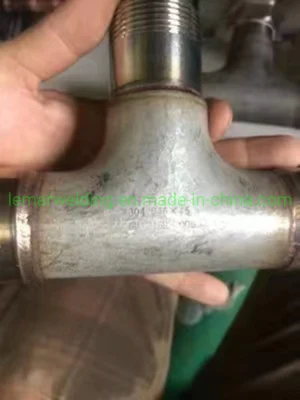

0-90DGR WELDING TILTING and Rotating Roller Press Type Positioner is mainly used for tube docking, tube flanges, bending pipes, T-shaped tubes, and pipe welding cutting fields with different diameter or gravity requirements.
The device can freely install pipes and flanges and rotate the work-piece or pour into a reasonable position as needed.

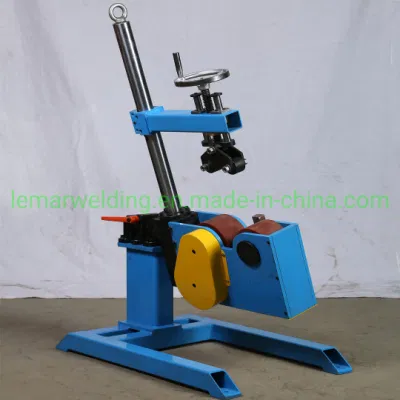

The main structure of the machine consists of a rack, roller rotation mechanism, a clamping arm lifting mechanism, a tilt mechanism, and electrical control.

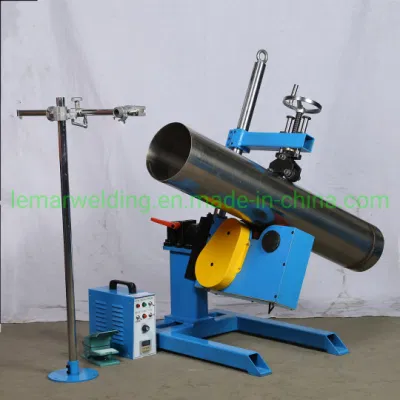

This pressure roller tube flange welding machine can be combined with small welding operators, welded swingers, and welding power supply into a tube automatic welding processing center.
Specifications:
About the warranty:
1. All our machines (H-beam production line, Box beam automatic welding line, Welding manipulator, Welding rotator, Welding positioner, Seam straight welding machine) have a shelf life of 12 months. In 0-12 months, the machine will be repaired free of charge (consumable parts are not covered by the warranty), the user does not follow the requirements of the manual, wrong installation and use or non-professional installation/repair/change/disassembly caused by equipment machine failures and damages are not covered under warranty.
2. If the warranty period exceeds 12 months, we will provide technical guidance for life. If the machine fails to repair, we only charge the cost of accessories, and the freight needs to be borne by the customer.
At the needs of the majority of customers, our company has recently developed a rolling roller tube welding machine on the basis of the original seat Welding Positioner design.
0-90DGR WELDING TILTING and Rotating Roller Press Type Positioner is mainly used for tube docking, tube flanges, bending pipes, T-shaped tubes, and pipe welding cutting fields with different diameter or gravity requirements.
The device can freely install pipes and flanges and rotate the work-piece or pour into a reasonable position as needed.
The main structure of the machine consists of a rack, roller rotation mechanism, a clamping arm lifting mechanism, a tilt mechanism, and electrical control.
This pressure roller tube flange welding machine can be combined with small welding operators, welded swingers, and welding power supply into a tube automatic welding processing center.
Specifications:
| Pressure roller tube flange welding machine | |||
| Model | YGB-100 | Input power supply | AC220V 50HZ |
| Rated Loading | 100kg | Applicable workpiece diameter | Ф50-300mm |
| Motor Power | 200W | Tilt angle | ±90dgr |
| Workbench speed | 20-4000mm/min | brand | Lemar |
| Pressing roller roller lifting method | Handwheel adjustment | Self -respect | 150kg |
| Standard configuration: Welding positioner welding rotator host, Control cabinet, Foot switch, Power cord, Manual, Qualification Certificate | |||
1. All our machines (H-beam production line, Box beam automatic welding line, Welding manipulator, Welding rotator, Welding positioner, Seam straight welding machine) have a shelf life of 12 months. In 0-12 months, the machine will be repaired free of charge (consumable parts are not covered by the warranty), the user does not follow the requirements of the manual, wrong installation and use or non-professional installation/repair/change/disassembly caused by equipment machine failures and damages are not covered under warranty.
2. If the warranty period exceeds 12 months, we will provide technical guidance for life. If the machine fails to repair, we only charge the cost of accessories, and the freight needs to be borne by the customer.
