Basic Info.
Model NO.
ZTG-100
Welding Turning Rolls Type
Self-Adjusting
Condition
New
Model
Ztg-100
Max Loading Weight
100t
Suitable Pipe Diameter
1000-5500mm
Roller Linear Speed
6-60m/H
Motor Power
1.5kw
Speed Mode
AC Variable Frequency Stepless Speed Regulation
Lead Time
10 Days
Colour
Customized
Warranty
1 Year
Wheels Quantity
8 Wheels
Wheel Material
Rubber and Steel Wheel
Other Names
Tank Rollers/Tank Rolls and Turning Rolls
Weight Range
1t~800t
Exported to
Canada,USA,Russia,Brazil,South Africa etc
Customized
Yes
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Packaging & Delivery
Package Size
240.00cm * 150.00cm * 75.00cm
Package Gross Weight
1300.000kg
Product Description

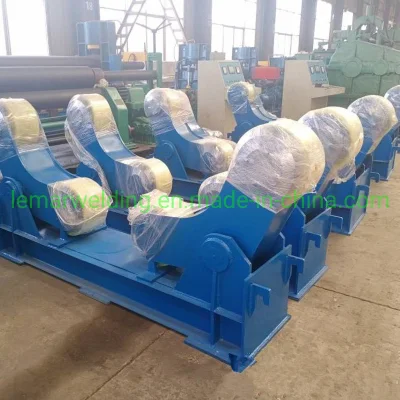

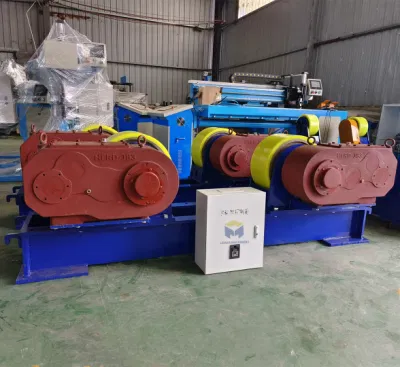

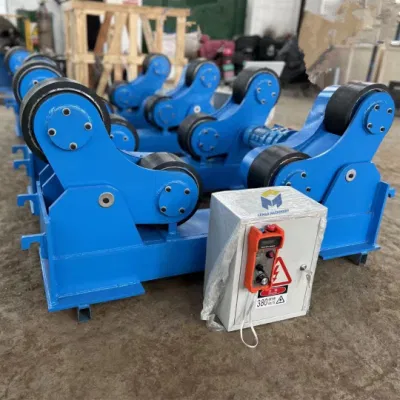

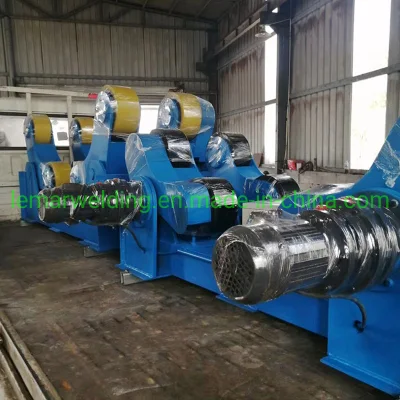

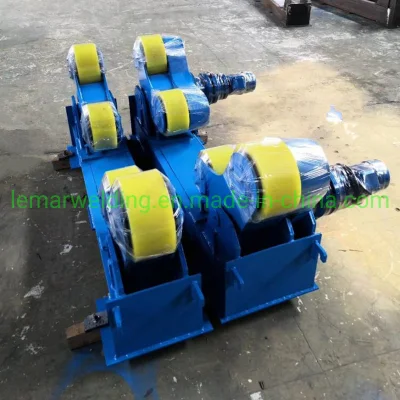

100Ton Self Adjustable Pipe Welding Rotator veseel automatic welding machine
Any welding process requires welding rotators, and using the appropriate tank vessel automatic welding rotator can make your work simpler and more effective. You can benefit from a competent welding rotator in a variety of ways.First of all, a welding rotator can save you time and effort by making it simple to rotate your workpiece so that you can weld it from all sides without having to move it constantly manually.
For large or heavy items that would be challenging to move by hand, this can be extremely helpful.
Additionally, some welding rotators allow for remote control operation, which enables simple speed and rotation direction adjustments from a secure distance.This is especially helpful for more difficult welding operations that call for exacting modifications.
Model
| Loading Capacity (kg) | Pipe/Tank Diameter (mm) | Rubber Roller Dia. & Width (mm) | Roller Speed (m/h) | Motor Power (kw) |
Speed Adjust
| |
Rubber Roller | Steel Roller | ||||||
ZTG-5 | 5000 | Φ250-2300 | Φ250*100 | Φ240*20*2 | 6-60 | 0.75 | Variable Frequency Drive (VFD)
|
ZTG-10 | 10000 | Φ320-2800 | Φ300*120 | Φ290*25*2 | 1.1 | ||
ZTG-20 | 20000 | Φ500-3500 | Φ350*120 | Φ340*30*2 | 1.5 | ||
ZTG-30 | 30000 | Φ600-3800 | Φ350*120 | Φ340*30*2 | 2.2 | ||
ZTG-40 | 40000 | Φ600-4200 | Φ400*120 | Φ390*40*2 | 3 | ||
ZTG-50 | 50000 | Φ700-4500 | Φ400*120 | Φ390*40*2 | 4 | ||
ZTG-60 | 60000 | Φ750-4800 | Φ450*120 | Φ440*50*2 | 4 | ||
ZTG-80 | 80000 | Φ850-5000 | Φ500*120 | Φ490*60*2 | 5.5 | ||
ZTG-100 | 100000 | Φ1000-5500 | Φ500*120 | Φ490*70*2 | 7.5 | ||
ZTG-150 | 150000 | Φ1100-6000 | Φ500*120 | Φ600*Φ280 | 2*5.5 | ||
| ZTG-250 | 250000 | Φ1200-7000 | / | Φ700*380 | 2*5.5 | ||
| ZTG-500 | 500000 | Φ1800-8000 | / | Φ850*350 | 2*7.5 | ||
When choose a welding rotator,what should pay attention to?
It might be difficult to choose the best welding rotator, especially if you are new to the field. However, you can simply make an informed decision that will suit your goals and budget with a little forethought and information.
You can use the following advice to aid in your selecting process.
1.Consider your welding needs first.
This pertains to the workpiece's weight, size, and shape as well as the welding procedure you'll be employing.
It is important to be sure that the rotator you select can hold your workpiece and won't harm it when welding.
2.Think about the rotator's weight capacity.
It's crucial to pick a rotator that can support your workpiece's weight without overloading.
A decent rule of thumb is to select a rotator whose weight capacity is at least 25% greater than the weight of your workpiece.
The size of the rotator should also be taken into account.
To make it simple to move the rotator around your workspace, choose one that is both small and portable.
3.Safety is also an important consideration when choosing a welding rotator. Make sure that the rotator you choose has all the necessary safety features, such as adjustable speed control, emergency stop button, and overload protection.
4.Last but not least, consider the reputation of the manufacturer when choosing a welding rotator.
Look for manufacturers with a solid reputation for quality products and excellent customer service.
You want to work with a company that stands behind their product and is there to help you with any questions or concerns.
