Basic Info.
Model NO.
ZTG-100
Voltage
380V
Welding Turning Rolls Type
Self-Adjusting
Condition
New
Model
Ztg-100
Max Loading Weight
100 Ton
Function
Tank Vessesl Automatic Welding Turning Rolls
Usage
Welding and Cutting Turning
Exported to
Canada,USA,Russia,Saudi Arabia,Iraq,Greece,France
Tanks Diameter
1000-5500mm
Wheel Diameter

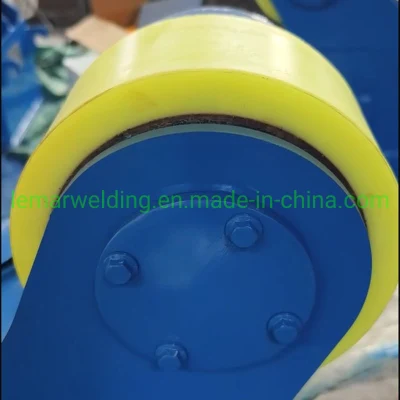

Polyurethane(PU)/Steel Metal
Roller Linear Speed
6-60m/H
Motor Power
7.5kw*2sets
Speed Mode
AC Variable Frequency Stepless Speed Regulation
Certificate
CE ISO
Brand
Lemar
Warranty
1 Year
Wheels Quantity
8 Wheels
Speed Adjust Way
VFD Adjustment
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
10000 PCS/Year
Packaging & Delivery
Package Size
230.00cm * 210.00cm * 750.00cm
Package Gross Weight
1080.000kg
Product Description

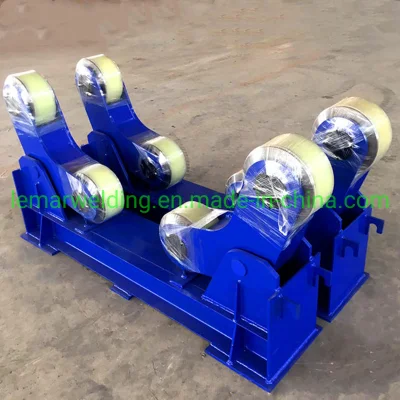

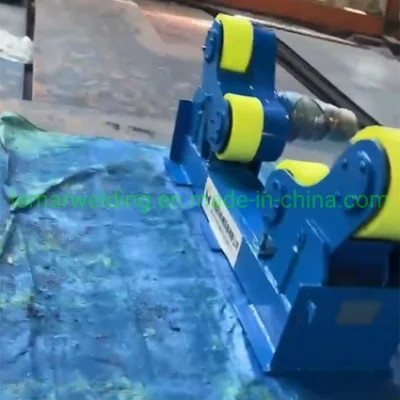

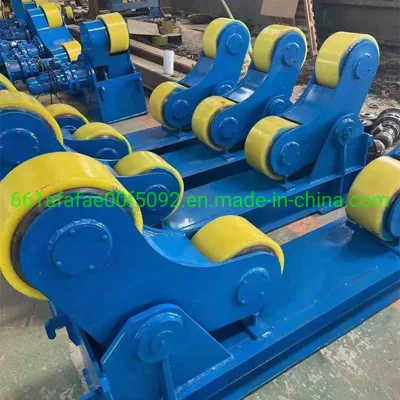

100Ton Self-aligning roller beds Rotating Welding rotators

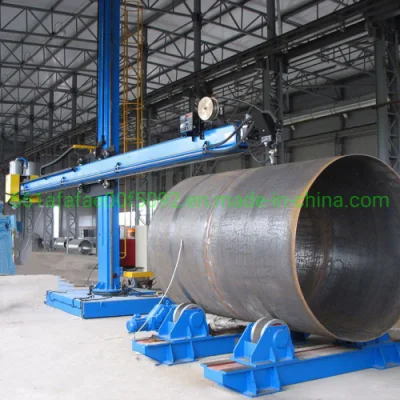

For the positioning and rotation of cylindrical constructions (such as wind towers, cisterns, tubes, and pipes), roller beds or self aligning welding rotators were created to help with various operations like SAW or MIG/MAG, painting, or assembly.
The rotation of the self-aligning roller bed is driven by a variable speed alternator, ideal for producing units of different diameters.
With this equipment, the adjustment process becomes easier and faster, and we are able to produce self-aligning roller beds with a load capacity up to 1000 tons.
Specifications:
FAQ:
1.Who are we?
Wuxi Lemar is one professional supplier of CNC Plasma Flame Gas cutting products and Automated welding equipment
2.How can we ensure quality?
Prior to mass manufacturing, there is always a pre-production sample; prior to shipment, there is always 100% quality inspection;
3. What products do we sell?
H beam production line machines,Box beam production line machine,CNC Plasma Flame cutting machines,Welding rotators,Welding turntable positioner,Welding manipulators,Seam welding machines,Welding torch, gas regulator, and accessories
4. What makes us better than other providers for your purchases?
15 years of welding industry experience.
Expert staff for quality assurance and technology R&D.
Quick, responsible, and top-notch service
5. What services are available from us?
FOB, CFR, CIF, EXW, DDU, and express delivery are acceptable terms for delivery;
6.Accepted Currencies for Payment: USD, EUR, and CNY;
Accepted forms of payment include cash, Western Union, credit card, T/T, and L/C.
For the positioning and rotation of cylindrical constructions (such as wind towers, cisterns, tubes, and pipes), roller beds or self aligning welding rotators were created to help with various operations like SAW or MIG/MAG, painting, or assembly.
The rotation of the self-aligning roller bed is driven by a variable speed alternator, ideal for producing units of different diameters.
With this equipment, the adjustment process becomes easier and faster, and we are able to produce self-aligning roller beds with a load capacity up to 1000 tons.
Model
| Loading Capacity (kg) | Pipe/Tank Diameter (mm) | Rubber Roller Dia. & Width (mm) | Roller Speed (m/h) | Motor Power (kw) |
Speed Adjust
| |
Rubber Roller | Steel Roller | ||||||
ZTG-5 | 5000 | Φ250-2300 | Φ250*100 | Φ240*20*2 | 6-60 | 0.75 | Variable Frequency Drive (VFD)
|
ZTG-10 | 10000 | Φ320-2800 | Φ300*120 | Φ290*25*2 | 1.1 | ||
ZTG-20 | 20000 | Φ500-3500 | Φ350*120 | Φ340*30*2 | 1.5 | ||
ZTG-30 | 30000 | Φ600-3800 | Φ350*120 | Φ340*30*2 | 2.2 | ||
ZTG-40 | 40000 | Φ600-4200 | Φ400*120 | Φ390*40*2 | 3 | ||
ZTG-50 | 50000 | Φ700-4500 | Φ400*120 | Φ390*40*2 | 4 | ||
ZTG-60 | 60000 | Φ750-4800 | Φ450*120 | Φ440*50*2 | 4 | ||
ZTG-80 | 80000 | Φ850-5000 | Φ500*120 | Φ490*60*2 | 5.5 | ||
ZTG-100 | 100000 | Φ1000-5500 | Φ500*120 | Φ490*70*2 | 7.5 | ||
ZTG-150 | 150000 | Φ1100-6000 | Φ500*120 | Φ600*Φ280 | 2*5.5 | ||
| ZTG-250 | 250000 | Φ1200-7000 | / | Φ700*380 | 2*5.5 | ||
| ZTG-500 | 500000 | Φ1800-8000 | / | Φ850*350 | 2*7.5 | ||
