Basic Info.
Model NO.
HB100
Function
for Welding
Color
as Per Customers′ Requirements
Export Markets
Global
Delivery Time
Timely
Current
Standard
T-Beam Groove
6
Titing Power
4kw
Rated Loading
10000kg
Product Name
10t Welding Positioner Manufacturer Sales
Transport Package
Wooden /Container/as Per Customers′ Requirements
Specification
CE, ISO
Trademark
Datang
Origin
Jiangsu, China
HS Code
84688000
Production Capacity
500 Sets Per Month
Product Description

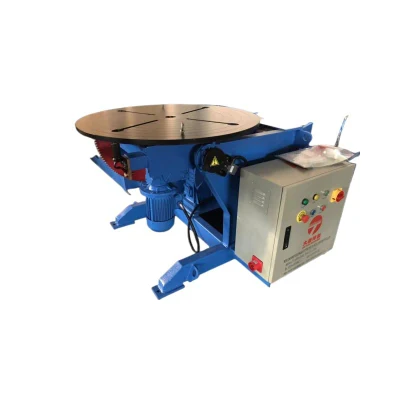

10T Welding positioner manufacturer sales
Welding positioner is mainly composed of worktable revolving unit and tilting unit.Work-piece fixed on the worktable can be placed to ideal position by elevating the worktable.Speed of worktable revolving is frequency conversion stepless to achieve satisfactory welding speed.For the reason of eccentric-distance and gravity-center -distance,slightly higher model should be selected for longer work-piece and work-piece which gravity-center has greater offset.If standard welding positioner can not meet requirement for all work-pieces,please be sure to offer us shape,weight and machining technology of work-piece,so we an design suitable proposal for your choice.
Main technical parameter
Packing&shipping:
Certifications:
Our services:
Company information:
FAQ:
1,Customer:Can your machines be customized?
We: Yes,we have a professional design team.If you have any special requirements,we can customize for you.
2,Customer:What about the packing ?
We:Usually we use wooden case,container or as per customers' requirements.
3,Customer:What about the transportation?
We:We usually take seaway because it is convenient and cheap.Also we can take train,it is
up to the destination.
4,Customer:What about the warranty?
We:Our company's machines are all of high-quality.And our products' warranty is 1 year.
Welding positioner is mainly composed of worktable revolving unit and tilting unit.Work-piece fixed on the worktable can be placed to ideal position by elevating the worktable.Speed of worktable revolving is frequency conversion stepless to achieve satisfactory welding speed.For the reason of eccentric-distance and gravity-center -distance,slightly higher model should be selected for longer work-piece and work-piece which gravity-center has greater offset.If standard welding positioner can not meet requirement for all work-pieces,please be sure to offer us shape,weight and machining technology of work-piece,so we an design suitable proposal for your choice.
Main technical parameter
| NO. | Technical Parameter | Type | ||||||||||
| HB1 | HB3 | HB6 | HB12 | HB30 | HB50 | HB100 | HB150 | HB200 | ||||
| 1 | Rated loading (Kg) | 100 | 300 | 600 | 1200 | 3000 | 5000 | 10000 | 15000 | 20000 | ||
| 2 | Max eccenteric Distance(mm) | 50 | 100 | 200 | 200 | 250 | 250 | |||||
| 3 | Max distance of Gravity center (mm) | 150 | 200 | 300 | 400 | 500 | 600 | |||||
| 4 | Working table size (mm) | φ400 | φ600 | φ1000 | φ1200 | φ1400 | φ1500 | φ1800 | φ2000 | φ2200 | ||
| 5 | The amount of table T-beam groove | 4 | 6 | |||||||||
| 6 | Tilting angle (°) | 0°~+90° | 0°~+120° | |||||||||
| 7 | Rotating speed (rpm) | 0.2~2 | 0.12~1.2 | 0.1~1 | 0.05~0.5 | 0.03~0.3 | ||||||
| 8 | Rotating Power(KW) | 0.18 | 0.18 | 0.75 | 0.75 | 1.5 | 2.2 | 3 | 4 | 5.5 | ||
| 9 | Tilting speed (rpm) | 0.8 | 0.5 | 0.3 | 0.14 | |||||||
| 10 | Tilting Power(kW): | 0.75 | 1.1 | 2.2 | 3 | 4 | 5.5 | 7.5 | ||||
| 11 | Structure of rotating axes | Direct connection of reducer | Tilting support | |||||||||
| 12 | Electricity (A): | 600 | 600 | 600 | 600 | 1000 | 1000 | 2000 | 2000 | 2000 | ||
| 13 | Height of the tilting center h(mm) | 300 | 457 | 712 | 735 | 1100 | 1292 | 1420 | 1570 | 1570 | ||
| 14 | Max diameter of workpiece (mm) | 550 | 850 | 1350 | 1400 | 2000 | 2500 | 2700 | 3000 | 3000 | ||
| 15 | Speed adjusting way | Rotating speed VFD | ||||||||||
| Tilting speed constant | ||||||||||||
Certifications:
Our services:
Company information:
FAQ:
1,Customer:Can your machines be customized?
We: Yes,we have a professional design team.If you have any special requirements,we can customize for you.
2,Customer:What about the packing ?
We:Usually we use wooden case,container or as per customers' requirements.
3,Customer:What about the transportation?
We:We usually take seaway because it is convenient and cheap.Also we can take train,it is
up to the destination.
4,Customer:What about the warranty?
We:Our company's machines are all of high-quality.And our products' warranty is 1 year.
