Basic Info.
Model NO.
BWJ-10
Welding Tilter Type
Flexible Combination
Condition
New
Model
Bwj-10
Function
Positioner for Pipe Flange Welding
Tilt Speed
0.4rpm
Applicable Chuck
Kd200/300/400/500/600
Center Hole Diameter
45/90/140mm
Turntable Diameter
1200mm
Capacity
1000kg Welding Turning Table
Machinery Certificate
CE ISO
Colour
Customized
Welding Gun Holder
Optional
Welding Material
Stainless Steel,Carbon Steel
Worktable Diameter
Customized
Rotating Motor
1.1kw
Tilting Motor
1.1kw
Lead Time
10 Days
Transport Package
Wooden
Trademark
Lemar
Origin
Wuxi, China
HS Code
85158090
Production Capacity
1000 PCS/Year
Product Description

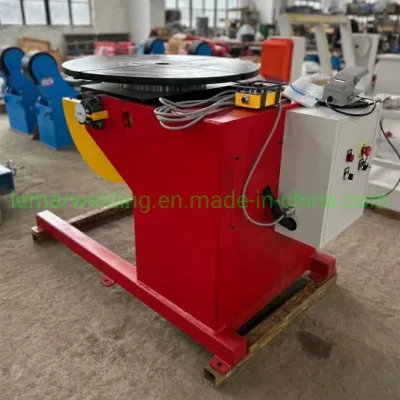

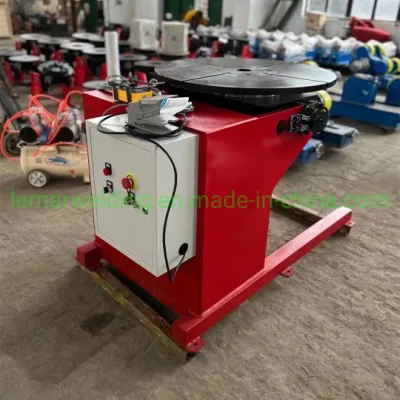

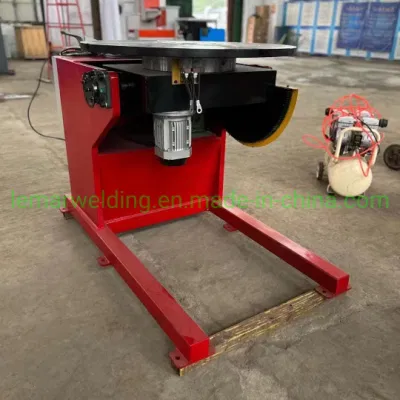

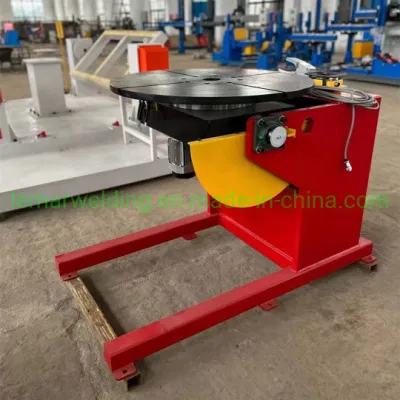

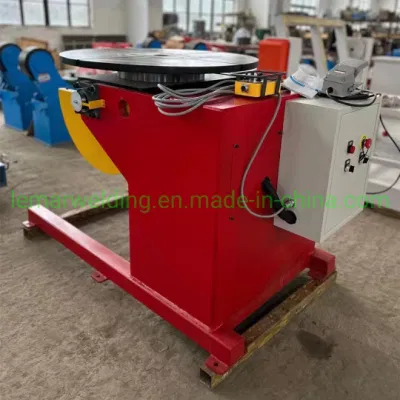

135 degree 1000kg Rotary Positioner turntable for welding and cutting
135 degree 1000kg loading weight welding adjustable positioner is generally equipped with welding robots, and can also be combined with hand -welded.
The positioning is accurate and reliable, so that the workpiece can be at the ideal welding position for welding.
There are many types of welding turntable machines, including single -axis positioner, dual -axis positioner, and three -axis positioner.
You can choose according to your actual usage.
Specification details:
1000kg Pipe Flange Welding Positioner Turntable:
1. Welded with excellent profiles and steel plates. After annealing, quality is high.
2. Flip uses a servo motor to drive, and the positioning accuracy is reliable.
3. The reducer uses a high -precision reducer, which can be adjusted.
Besides welding positoner, welding rotator, welding manipulator, Wuxi Lemar also produces H beam production machine and CNC Plasma cutting machines!
H beam Automatic PEB welding line
Box beam production Assembly welding straightening machines
Welding manipulator
Welding rotator
Straight seam welding equipment
CNC Cutting machine,etc
More questions please feel free to contact us directly through here or mail!
135 degree 1000kg loading weight welding adjustable positioner is generally equipped with welding robots, and can also be combined with hand -welded.
The positioning is accurate and reliable, so that the workpiece can be at the ideal welding position for welding.
There are many types of welding turntable machines, including single -axis positioner, dual -axis positioner, and three -axis positioner.
You can choose according to your actual usage.
| Model:PE Series | LHB01 | LHB03 | LHB06 | LHB10 | LHB30 | LHB50 | LHB100 | LHB150 | LHB200 | LHB350 | LHB600 |
| Horizontal Load Capacity (kg) | 100 | 300kg | 600 | 1000 | 3000 | 5000 | 10000 | 15000 | 20000 | 35000 | 60000 |
| Vertical loading capacity (kg) | 50kg | 150kg | 300kg | 500kg | 1500kg | 2500kg | 5000kg | 7500kg | 10000kg | 17500kg | 30000kg |
| Table Size (mm) | 400 | 500 | 750 | 900 | 1200 | 1500 | 1800 | 2000 | 2200 | 2800 | 2800 |
| Turning Speed (rpm) | 0.5-5 | 0.5-5 | 0.2-2.5 | 0.12-1.2 | 0.1-1 | 0.008-0.8 | 0.048-0.048 | 0.04-0.4 | 0.035-0.35 | 0.029-0.29 | 0.02-0.2 |
| Tilting Speed (rpm) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Tilting Angle | 0-90 | 0-90 | 0-90 | 0~135 | 0~135 | 0~135 | 0~135 | 0~135 | 0~135 | -30~90 | -30~90 |
| Max Load Eccentricity (mm) | 300 | ||||||||||
| Max Load Gravity Center From Table Top (mm) | 300 | ||||||||||
| Turning and Speed Adjusting Method | Stepless Via Inverter | ||||||||||
| Control Voltage | Customized | ||||||||||
| Pendant | Customized | ||||||||||
| Power Source | 220V/380V/400V/415V/440V/460V-3P-50HZ/60HZ | ||||||||||
| Color | Blue or Customized | ||||||||||
1. Welded with excellent profiles and steel plates. After annealing, quality is high.
2. Flip uses a servo motor to drive, and the positioning accuracy is reliable.
3. The reducer uses a high -precision reducer, which can be adjusted.
H beam Automatic PEB welding line
Box beam production Assembly welding straightening machines
Welding manipulator
Welding rotator
Straight seam welding equipment
CNC Cutting machine,etc
More questions please feel free to contact us directly through here or mail!
