Product Description

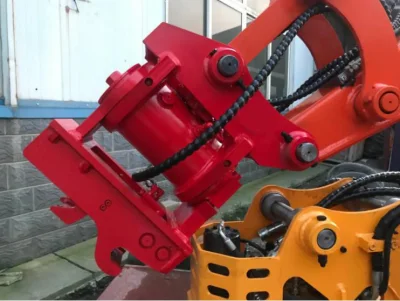

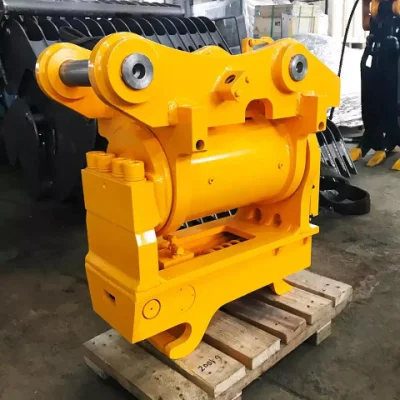

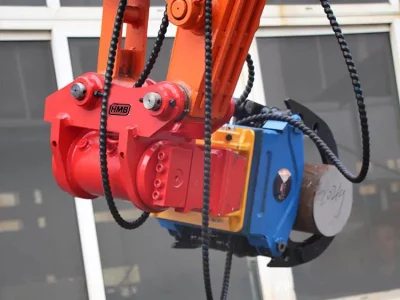

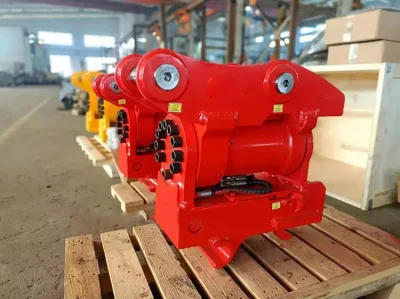

Excavator quick coupler, also named as quick hitch coupler, quick hitch, bucket pin grabber can quickly connect various
attachments (bucket, hydraulic breaker, plate compactor, log grapple, ripper, etc...) on excavators, which can expand the scope of use of excavators, and can save time and improve working efficiency.
| Category/Model | HMB -MINI | HMB02 | HMB04 | HMB04' | HMB06a | HMB06b | HMB08 | HMB10 |
| Tilt Degree | 180° | 180° | 180° | 180° | 180° | 180° | 140° | 140° |
| Drive Torque | 930 NM | 2870 NM | 4400 NM | 4400 NM | 4400 NM | 7490 NM | 10623 NM | 18600 NM |
| Tilt Displacement | 0.627 L/MN | 0.627 L/MN | 1.016 L/MN | 1.016 L/MN | 1.016 L/MN | 1.896 L/MN | 2.3 L/MN | 3.62 L/MN |
| Tilt Working Pressure | 210 bar | 210 bar | 210 bar | 210 bar | 210 bar | 210 bar | 210 bar | 210 bar |
| Tilt Necessary Flow | 2-4 Lpm | 5-16 Lpm | 5-16 Lpm | 5-16 Lpm | 5-16 Lpm | 15-44 Lpm | 19-58 Lpm | 35-105 Lpm |
| Working Pressure | 25-300 bar | 25-300 bar | 25-300 bar | 25-300 bar | 25-300 bar | 25-300 bar | 25-300 bar | 25-300 bar |
| Necessary Flow | 15-25 Lpm | 15-25 Lpm | 15-25 Lpm | 15-25 Lpm | 15-25 Lpm | 15-25 Lpm | 15-25 Lpm | 15-25 Lpm |
| Excavator | 0.8-1.5 Ton | 2-3.5 Ton | 4-6 Ton | 4-6 Ton | 7-9 Ton | 7-9 Ton | 10-16 Ton | 16-22Ton |
| Overall Dimension (L2*W1*H1) mm | 477*280*567 | 477*280*567 | 518*310*585 | 545*310*585 | 541*350*608 | 582*350*649 | 720*450*784 | 858*500*911 |
| Weight | 55 Kg | 112 Kg | 156 Kg | 156 Kg | 170 Kg | 208 Kg | 413 Kg | 655 Kg |

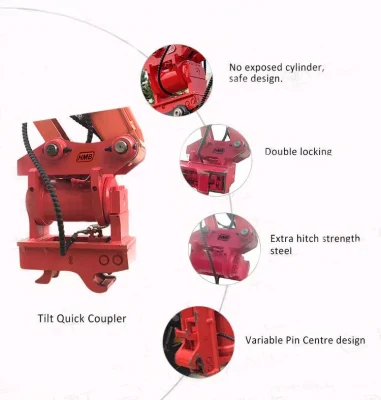

hydraulic quick hitch Main Features
1) Used high strength alloy. Suitable for different machines weights and models.
2) Can change the accessories without disassembling the pin shaft.
Provide high efficiency and easy installation.
3) Welding done by experienced worker with over 12 years of excavator attachment welding experience
established in Yantai, Shandong province, established in 2009, Yantai Jiwei Construction Machinery Equipment Co.,Ltd registered HMB Brand in 2011. We started to develop oversea market in 2013.With 12 years experience, specialized in manufacturing Hydraulic Breakers, Quick Couplers, Excavator Palte Compactors, Earth Augers and Spare Parts. Our own brand "HMB" hydraulic breakers have full series and are compatible to all brands' excavators.
FQA
A: Yes,our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breaker, beyond the warranty period.
Q: Can you produce according to customers' design?
A: Sure, OEM/ODM service available. We are professional manufacturer in Yantai.
Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.
Q: How about delivery time?
A: 5-25 work days after the payment.
Q: How about the package?
A: Our equipments wrapped by stretch film, packed by pallet or polywood case; or as requested.
Q: Which country have you exported?
A: Saudi Arabia, America, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc.
