Product Description
2000kg Heavy duty Arc Welding Positioner automatic welding turntable
Welding displacement machinery is a variety of mechanical devices that change the position of weldments, welders or welders to complete mechanized and automated welding.
Welding displacement machines can be divided into three categories:
1. Weldment displacement machinery: welding positioner, welding roller rotator, welding manipulator and welding turning tables machine
2. Welding machine displacement machinery: welding manipulator and electroslag welding frame
3. Welder position machine: welder lifting machine
| Model | BWJ-12 | BWJ-20 | BWJ-30 | BWJ-50 | BWJ-100 | BWJ-150 | BWJ-200 |
| Loading weight(kg) | 1200 | 2000 | 3000 | 5000 | 10000 | 15000 | 20000 |
| Tilt speed(r/min) | 0.1-1 | 0.1-1 | 0.06-0.6 | 0.05-0.5 | 0.05-0.5 | 0.02-0.2 | 0.02-0.2 |
| Rotate speed(r/min) | 0.37 | 0.37 | 0.37 | 0.37 | 0.37 | 0.15 | 0.2 |
| Tilt angle | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| Table diameter(mm) | 1000 | 1100 | 1400 | 1600 | 2000 | 2200 | 2500 |
| Table height(mm) | 1100 | 1200 | 1250 | 1550 | 1900 | 2000 | 2100 |
| Eccentricity | 150 | 150 | 200 | 200 | 200 | 200 | 200 |
| Center of gravity | 250 | 250 | 300 | 300 | 400 | 500 | 600 |
| Rotate motor(kw) | 0.75 | 1.5 | 1.5 | 2.2 | 3 | 4 | 5.5 |
| Tilt motor(kw) | 0.75 | 1.5 | 1.5 | 3 | 4 | 5.5 | 7.5 |

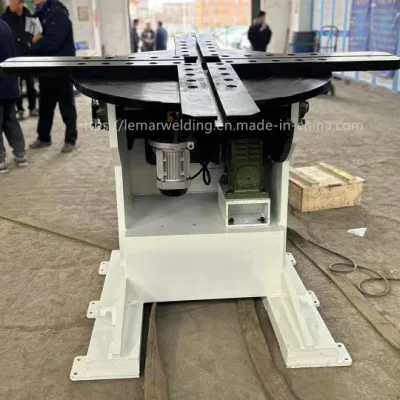

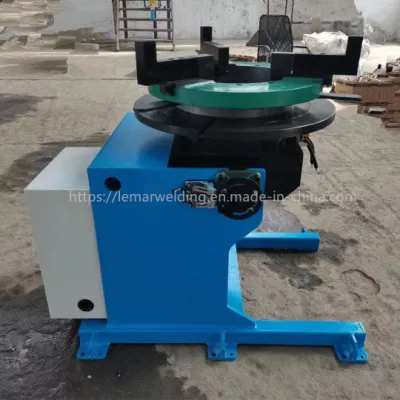

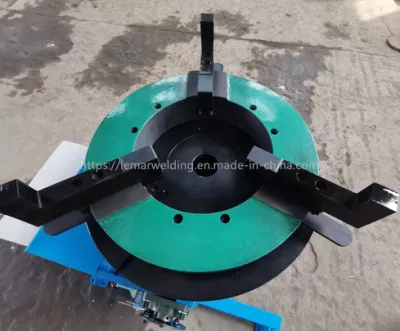

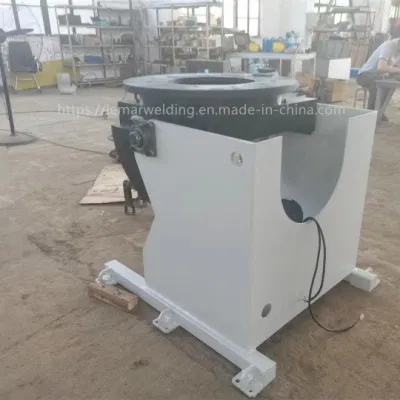

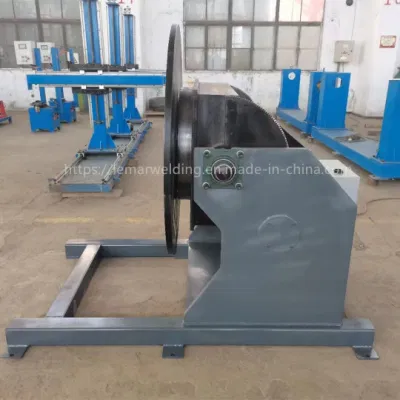

Welding positioner turntable:
The welding positioner is a welding piece displacement machine that rotates and tilts the workpiece so that the weld on the workpiece is placed in a favorable position for welding. It is mainly used for non-long workpieces such as racks, machine bases, flanges, and heads.
Welding turning rotator:
The welding roller rotator is a welding piece displacement machine that drives the selection of cylindrical workpieces by means of the friction between the active roller and the workpiece.It is mainly used for the assembly and welding of cylindrical workpieces, and is a common process equipment in the production of boiler vessels.
Column and boom welding manipulator:
The welding manipulator is to accurately send and keep the head of the welding machine at the position to be welded, or move the head of the welding machine along a prescribed trajectory at a selected welding speed. The welding manipulator is used in conjunction with the positioner and the roller frame to complete the welding of longitudinal seams, circular seams, and spiral seams, and can also be used for automatic surfacing, cutting, flaw detection, grinding, and painting.
Why choose Wuxi Lemar?What can Lemar do for clients?
Our ProductOur company Wuxi Lemar is mainly engaged in research and development, manufacture and sale, CNC Plasma cutting machine and Automatic welding equipment such as H-beam welding production line (light type, heavy type), box beam welding production line, horizontal assembly&welding production line,adjustable welding rotator, self-aligning welding turning rolls,seat type welding positioner,robotic welding turning assembly positioner,Customized positioners,3 jaw 4 jaw welding chuck,Straight seam welding machines,Circular seam welding machines,Column and boom TIG MIG SAW Tank and vessel welding manipulators,etc,
Our Product Application
The products are widely used in steel structure, shipbuilding, bridge building, boiler, chemical industry, metallurgy, electrical power industries etc.
Our Certificate
We have passed the ISO CE SGS testing standard, besides, our machine have honor to won many patents, like H-beam manufacturing equipment patents, welding positioner,welding rotator,column and boom rotate welding manipulator patents and etc.
Our machines have been exported to USA,UK,Canada,Russia,Poland, France,Kazakhstan, Pakistan, Bulgaria, Colombia,Brazil,etc.
Our service
All of our machines have one year warranty,we are 24 hours online for after sales service,we can send engineers to client's sites to resolve problems.
