Basic Info.
Model NO.
HBJS-30
Condition
New
Speed of Table
0.67rpm
Size of Table
1200mm
Turning Power
1.1kw
Tilt
1.5
Max Gravity Distance
150mm
Max Turning Distance
2050mm
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Load 3, 000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month
Product Description
3 Axis Welding Positioner For Vessle Welding
Hydraulic Welding Positioner Quickly Details:
Type: Hydraulic Welding Positioner / Welding Turning Table /
Brand:MISA
Condition:100% brand new
Model number:HBJS-30
Capacity:1000kg-200,000 kg
Consist: (1) Main frame (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)

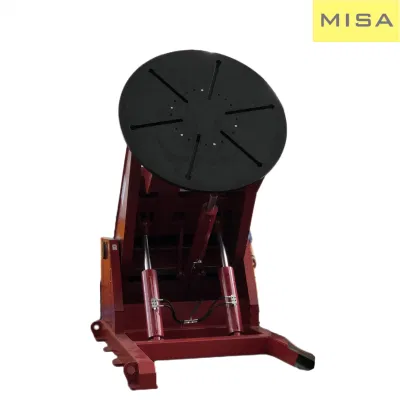

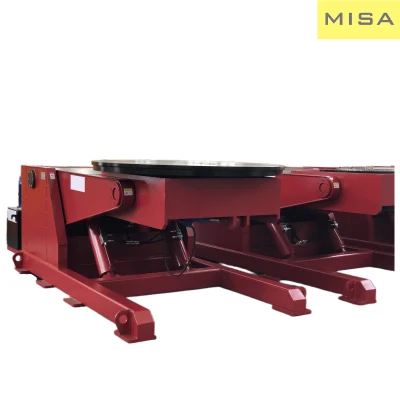

Hydraulic Welding Positioner Product Photo:
Hydraulic Welding Positioner Product Parameter:
Type: Hydraulic Welding Positioner / Welding Turning Table /
Brand:MISA
Condition:100% brand new
Model number:HBJS-30
Capacity:1000kg-200,000 kg
Consist: (1) Main frame (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)
Hydraulic Welding Positioner Product Photo:
Hydraulic Welding Positioner Product Parameter:
| Model | Rated load Cap (tons) | Power (kw) | Max Gravity Distance (mm) | Max centroid Eccentricity (mm) | Table | Max Rotation Ф@ 90 degree | Tilt Angle (degree) | |||
| Turning | Tilt | Speed(rpm) | Diameter (mm) | |||||||
| Rotation (variable) | Tilt (constant) | |||||||||
| HBJ-01 | 0.1 | 0.06 | /. | 100 | 150 | 0.40~4.0 | man. | 400 | 600 | 0~90 |
| HBJ-03 | 0.3 | 0.37 | /. | 100 | 150 | 0.10~1.0 | man. | 600 | 800 | 0~90 |
| HBJ-06 | 0.6 | 0.75 | 0.75 | 100 | 150 | 0.09~0.9 | 1.1 | 1000 | 1500 | 0~90 |
| HBJ-12 | 1.2 | 1.1 | 1.5 | 150 | 200 | 0.05~0.5 | 0.67 | 1200 | 2050 | 0~120 |
| HBJ-20 | 2 | 1.1 | 1.5 | 150 | 200 | 0.05~0.5 | 0.23 | 1400 | 2100 | 0~120 |
| HBJ-30 | 3 | 1.5 | 2.2 | 200 | 200 | 0.05~0.5 | 0.23 | 1400 | 2100 | 0~120 |
| HBJ-50 | 5 | 3 | 3 | 300 | 300 | 0.05~0.5 | 0.14 | 1500 | 2500 | 0~120 |
| HBJ-80 | 8 | 3 | 3 | 300 | 300 | 0.05~0.2 | 0.14 | 2000 | 3240 | 0~120 |
| HBJ-100 | 10 | 3 | 4 | 400 | 400 | 0.05~0.2 | 0.14 | 2000 | 3240 | 0~120 |
| HBJ-150 | 15 | 3 | 5.5 | 500 | 200 | 0.05~0.5 | 0.14 | 2200 | 3400 | 0~120 |
| HBJ-200 | 20 | 4 | 7.5 | 630 | 200 | 0.05~0.5 | 0.14 | 2500 | 3400 | 0~120 |

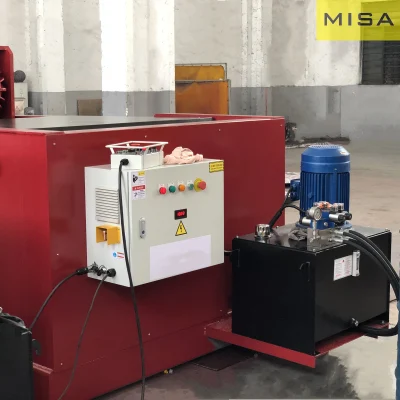

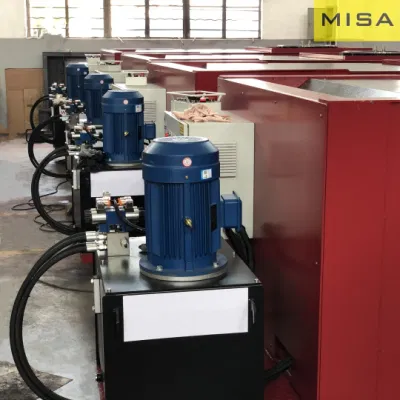

Hydraulic Welding Positioner Detail Photo:
Hydraulic Welding Positioner Application:
Hydraulic welding Positioner major used in cylinder welding , such as Marine , Oil&Gas ; Offshore , Petro Chemical ; Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ; Boiler ; Pipe system&Steel works etc.
1Pressure vessels.
2Pipe manufacturing industries
3Wind power fabrication
4Chemical & fuel storage tank fabrication
5Any heavy cylindrical job
6Cylindrical tank's welding , polishing , rubber lining , assembling , etc
7Match up with other tools for welding or assembling for cone and section equality solid of revolution
8Customized special welding rotators according to client's requirements.
Hydraulic Welding Positioner Product Description:
Hydraulic welding positioner is generally consists of worktable rotation mechanism , turnover mechanism and electric control system. The worktable is tilting by motor , accurate and reliable positioning ; it makes the work piece in perfect position for welding. The worktable adopts AC frequency conversion speed , so large range of variable speed and high precision.
Hydraulic Welding Positioner Packing And Shipment:
Kindly Noted:
1.You can choose Fixed type or Elevating type .
2.Welding Positioner can tilting from 0° to 120°, rotation 360° via VFD control.
3. Standard Voltage is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
4. Controlled is remote-control box, optional is foot switch
5. If customer need more special requirements , we could study with our engineer.
