3000kg Universal Rotary Turn Table Positioner with 3 Jaw Lathe Chuck

Get precise positioning and secure clamping with our 3000kg Universal Rotary Turn Table Positioner with 3 Jaw Lathe Chuck. Perfect for industrial use. Visit our factory today!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
BWJ-3T
Max Eccentricity Distance
150mm
Tilting Angle
0-90°
Voltage
110V/220V
Condition
New
Name
Manual Automatic Welding Positioner
Max Loading Weight
3000kg
Work Table Size
1400mm
Motor
1.5kw
Rotate Speed
0.08-0.8rpm
Tilt Motor
2.2kw
Tilting Speed
0.3rpm
Suitable Chuck
Kd-150/200/300/400/500/600
Tilt Angle
0-120 Degree
Optional
TIG MIG Mag Welder
Welder Holder
Yes
Max Gravity
300mm
Max Offsetting
200mm
Input Power
380V
Lead Time
15 Days
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
3000PCS/Year

Packaging & Delivery

Package Size
110.00cm * 100.00cm * 75.00cm
Package Gross Weight
1200.000kg

Product Description

3000kg Universal Rotary Turn table positioner with 3 jaw lathe chuck
Our welding positioners are an essential piece of equipment for any industrial welding operation.
Designed for heavy-duty applications, the rotary welding turning positioners provide a reliable and efficient solution for welding large and heavy workpieces.
With a range of features and capabilities, our welding positioners are perfect for a variety of welding applications, including MIG, TIG, and SAW welding.

Specifications:

Model
BWJ
3T
Max. load kg 3000
Rotate speed rpm/min 0.08-0.8
Turning speed rpm/min 0.3
Turning angle ° 0-120
Diameter  mm φ1400
Rotate motor power kW 1.5
Turning motor power kW 2.2
Speed adjustment AC frequency converter stepless speed adjustment
Max eccentricity  mm 200
Max distance of gravity centre  mm 250

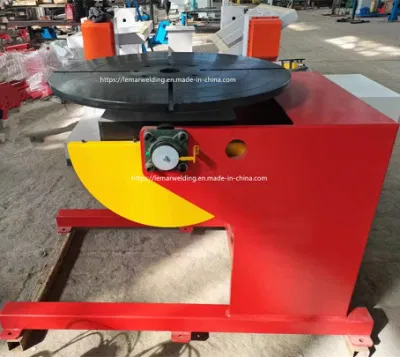

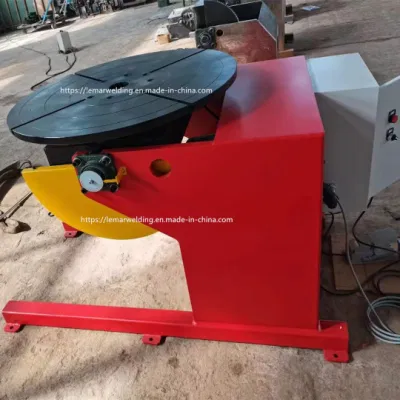

3000kg Universal Rotary Turn Table Positioner with 3 Jaw Lathe Chuck
3000kg Universal Rotary Turn Table Positioner with 3 Jaw Lathe Chuck
3000kg Universal Rotary Turn Table Positioner with 3 Jaw Lathe Chuck
Welding turning turntables are an essential tool in the welding process.
They provide a stable platform for welding operators to work on, ensuring that the welding joint is secure and stable.
They also provide an efficient and effective way of rotating the workpiece during the welding process, allowing for even coverage and reducing the need for repositioning.

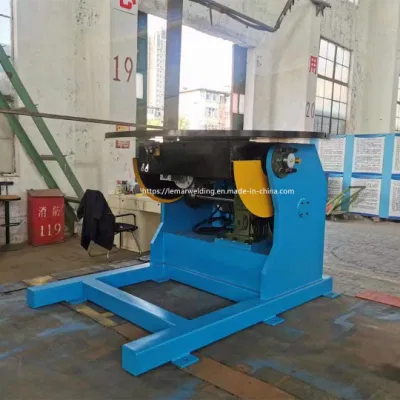

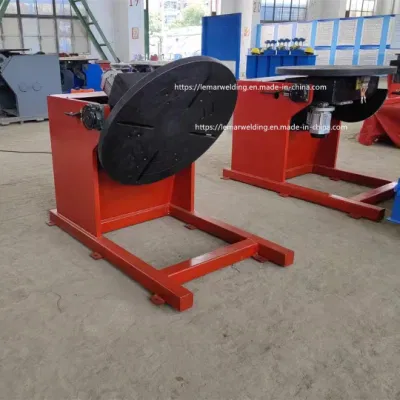

3000kg Universal Rotary Turn Table Positioner with 3 Jaw Lathe Chuck
3000kg Universal Rotary Turn Table Positioner with 3 Jaw Lathe Chuck
3000kg Universal Rotary Turn Table Positioner with 3 Jaw Lathe Chuck
FAQ:
1. Are you a manufacturing or trading business?
A factory is what we are.

2. What are your terms for payment?
A: We accept T/T, L/C, Western Union, and other payment methods. After discussion and agreement on both sides, additional options may be received. Contact us directly if you have any more queries!

3. Q:How about the warranty?
A: The warranty lasts for a whole year.
While the guarantee is not liable for items damaged via violence

4. What city is your factory in? How do I travel there?
A: Our factory is situated in Jiangsu Wuxi, China, which is close to Shanghai.
Flying to Shanghai is an option

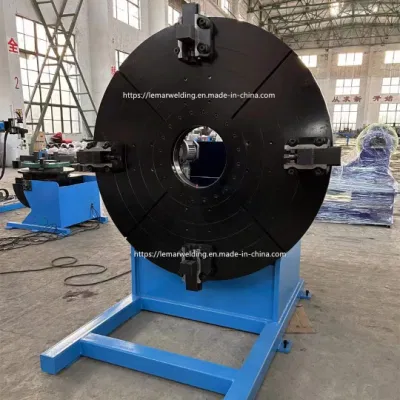

3000kg Universal Rotary Turn Table Positioner with 3 Jaw Lathe Chuck
3000kg Universal Rotary Turn Table Positioner with 3 Jaw Lathe Chuck
3000kg Universal Rotary Turn Table Positioner with 3 Jaw Lathe Chuck
3000kg Universal Rotary Turn Table Positioner with 3 Jaw Lathe Chuck
