Basic Info.
Model NO.
BWJ-30
Max Eccentricity Distance
200mm
Tilting Angle
0-120°
Voltage
220V
Welding Turning Rolls Type
Adjustable
Welding Tilter Type
Flexible Combination
Condition
New
Model No.
Bwj
Max Load Capacity
3000kg
Table Speed
0.05~0.5rpm
Tilt Speed
0.5rpm
Turning Table Diameter
1400mm
Rotation Motor
1.5kw
Tilt Motor
3.0kw
Certificate
CE ISO
Function
Fixed Welding Positioner
Color
Customized
Loading Weight
1t ~200t
Table Diameter
1000mm~30000mm
Eccentricity
100~300mm
Rotate Speed Adjustment Method
Frequency
Customized
Yes
Transport Package
Standard
Trademark
Lemar
Origin
Jiangsu, China
HS Code
8428909090
Packaging & Delivery
Package Size
50.00cm * 52.00cm * 50.00cm
Package Gross Weight
2100.000kg

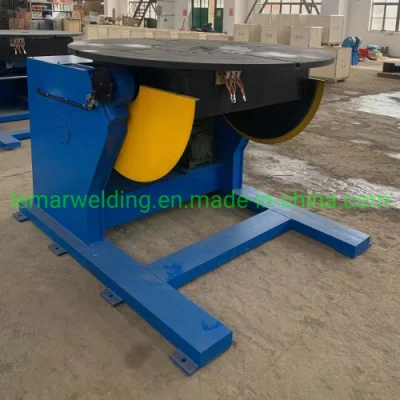

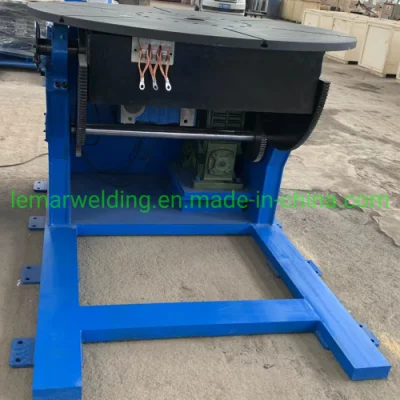

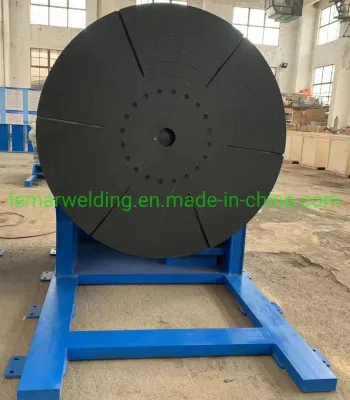

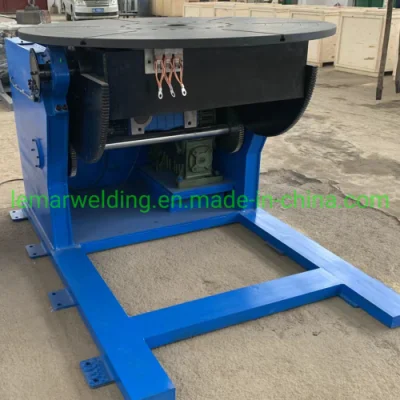

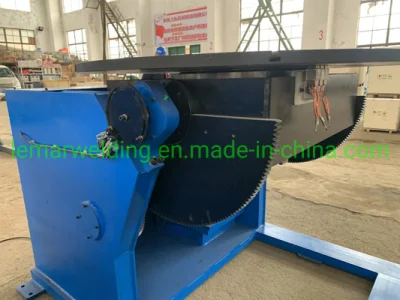

Product Description
1. Adopt AC variable frequency motor, easy to operate
2. Adopt electric flip method, electric and braking function
3. The electronic control part is controlled by frequency converter to ensure the welding quality
4.Large carrying capacity, from 1T welding positioner to 200T welding positioner turning table all can be customized
5.Welding turning table is often used in conjunction with welding operation stand, TIG MIG MAG SAW welding power source to complete automatic welding of tank pipe.
6. The operation is simple, and the rotating part adopts a slewing support structure, which improves the service life of the welding positioner
7. Welding positioner can choose various welding chucks, vertical jaws, extended jaws, etc.
2. Adopt electric flip method, electric and braking function
3. The electronic control part is controlled by frequency converter to ensure the welding quality
4.Large carrying capacity, from 1T welding positioner to 200T welding positioner turning table all can be customized
5.Welding turning table is often used in conjunction with welding operation stand, TIG MIG MAG SAW welding power source to complete automatic welding of tank pipe.
6. The operation is simple, and the rotating part adopts a slewing support structure, which improves the service life of the welding positioner
7. Welding positioner can choose various welding chucks, vertical jaws, extended jaws, etc.
| Model | BWJ-30 |
| Loading weight(kg) | 3000 |
| Table Speed(rpm) | 0.05~0.5 |
| Flip speed(rpm) | 0.5 |
| Flip angle(°) | 0-120 |
| Positioner diameter(mm) | Φ1400 |
| Maximum eccentricity(mm) | 200 |
| Maximum gravity(mm) | 300 |
| Rotate speed adjustment method | Frequency |
| Rotation motor(kw) | 1.5 |
| Flip motor(kw) | 3.0 |
Notice:
1. We can also design various types of products according to customer needs;
2. Picture, price, product attributes are for reference only, and they are specific
You are welcome to place an order for an e -mail for consultation.
1. We can also design various types of products according to customer needs;
2. Picture, price, product attributes are for reference only, and they are specific
You are welcome to place an order for an e -mail for consultation.
How to check whether the structure of the welding positioner is reasonable:
1. Check the rotary drive motor of the positioner
(1) The rotary drive motor should realize stepless speed regulation and can realize braking.
(2) Within the range of rotation speed, the fluctuation of rotation speed should not exceed 5% when bearing the maximum load.
2. Check the positioner flip drive
(1) The tilt drive should be stable, not shake under the maximum load, and the whole machine should not overturn. If the maximum load Q exceeds 25kg, it should have the power drive function.
(2) There should be a limit device to control the inclination angle, and there should be an angle indicator.
(3) The tilting mechanism should have a self-locking function, which does not slide under the maximum load, and is safe and reliable.
1. Check the rotary drive motor of the positioner
(1) The rotary drive motor should realize stepless speed regulation and can realize braking.
(2) Within the range of rotation speed, the fluctuation of rotation speed should not exceed 5% when bearing the maximum load.
2. Check the positioner flip drive
(1) The tilt drive should be stable, not shake under the maximum load, and the whole machine should not overturn. If the maximum load Q exceeds 25kg, it should have the power drive function.
(2) There should be a limit device to control the inclination angle, and there should be an angle indicator.
(3) The tilting mechanism should have a self-locking function, which does not slide under the maximum load, and is safe and reliable.
Lemar machinery Equipment Co.,Ltd is committed to H beam Production line machine (PEB H BEAM FABRICATION MACHINES),Auto assembly machine,Submerged welding gantry type machine,Flange straightening machine,End face milling machine,Sand shot blasting machine,
And vessel tank pipe wind power fabrication line,consists of: Seam welding machine,TIG/MIG/MAG Seam welding rotator,welding positioner,welding manipulator,Straight seam welding machine,Circular seam welding machine,etc.
