Basic Info.
Model NO.
BWJ-3
Max Eccentricity Distance
150mm
Tilting Angle
0-90°
Voltage
110V/220V
Welding Tilter Type
Flexible Combination
Condition
New
Model
Bwj-3
Function
Positioner for Pipe Flange Welding
Rotate Speed Adjusting Mode
VFD
Applicable Chuck
Kd200/300/400/500/600
Center Hole Diameter
45/90/140mm
Color
Customized
Capacity
300kg
Positioner
Welding/Rotating
Core Components
PLC, Motor
Machinery Certificate
CE ISO
Colour
Customized
Welding Gun Holder
Optional
Welding Material
Stainless Steel,Carbon Steel
Worktable Diameter
Customized
Rotating Motor
0.75~5.5kw
Transport Package
Wooden
Trademark
Lemar
Origin
Wuxi, China
HS Code
85158090
Production Capacity
1000 PCS/Year
Packaging & Delivery
Package Size
65.00cm * 56.00cm * 64.00cm
Package Gross Weight
110.000kg
Product Description

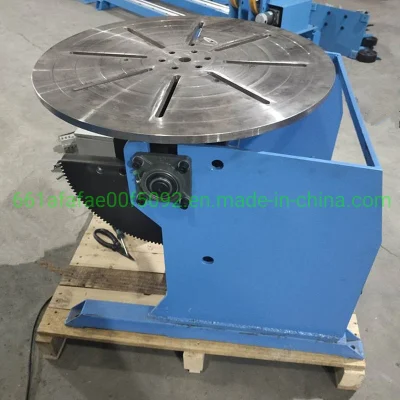

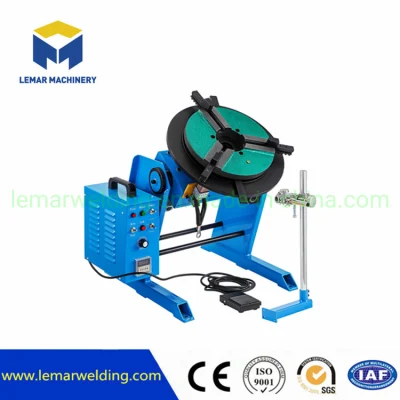

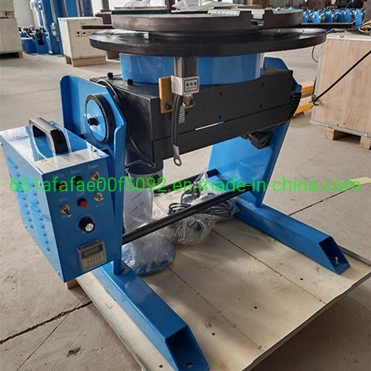

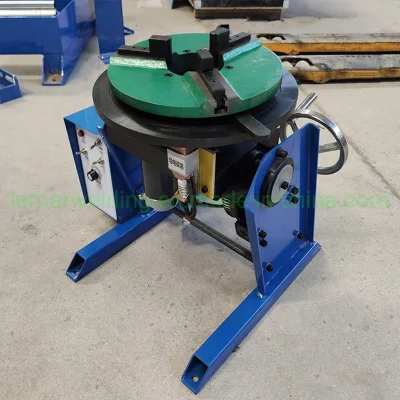

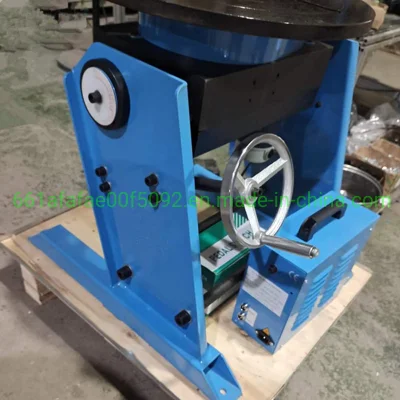

300kg Welding Positioner Turntable pipe flange welding turning table
The 300kg welding positioner for pipe vessel is composed of rotor head, flipper, and controller.
1. PLC programming controller, stronger reliability
2. Have manual adjustment and automatic welding control function
3. The rotor head of welding and the mig tig MAG welding speed uses digital display
4. Welding turntable can be equipped with Welding Stand and pedal, Welding Maniopulator, which is used to complete the automatic welding of flange and pipe
5. Welding Positioner comes with the output signal and interface, and multiple welding methods can be connected
Specification details:
Besides welding positoner, welding rotator, welding manipulator, Wuxi Lemar also produces H beam production machine and CNC Plasma cutting machines!
H beam Automatic PEB welding line
Box beam production Assembly welding straightening machines
Welding manipulator
Welding rotator
Straight seam welding equipment
CNC Cutting machine,etc
More questions please feel free to contact us directly through here or mail!
The 300kg welding positioner for pipe vessel is composed of rotor head, flipper, and controller.
1. PLC programming controller, stronger reliability
2. Have manual adjustment and automatic welding control function
3. The rotor head of welding and the mig tig MAG welding speed uses digital display
4. Welding turntable can be equipped with Welding Stand and pedal, Welding Maniopulator, which is used to complete the automatic welding of flange and pipe
5. Welding Positioner comes with the output signal and interface, and multiple welding methods can be connected
| Model:PE Series | LHB01 | LHB03 | LHB06 | LHB10 | LHB30 | LHB50 | LHB100 | LHB150 | LHB200 | LHB350 | LHB600 |
| Horizontal Load Capacity (kg) | 100 | 300kg | 600 | 1000 | 3000 | 5000 | 10000 | 15000 | 20000 | 35000 | 60000 |
| Vertical loading capacity (kg) | 50kg | 150kg | 300kg | 500kg | 1500kg | 2500kg | 5000kg | 7500kg | 10000kg | 17500kg | 30000kg |
| Table Size (mm) | 400 | 500 | 750 | 900 | 1200 | 1500 | 1800 | 2000 | 2200 | 2800 | 2800 |
| Turning Speed (rpm) | 0.5-5 | 0.5-5 | 0.2-2.5 | 0.12-1.2 | 0.1-1 | 0.008-0.8 | 0.048-0.048 | 0.04-0.4 | 0.035-0.35 | 0.029-0.29 | 0.02-0.2 |
| Tilting Speed (rpm) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
| Tilting Angle | 0-90 | 0-90 | 0-90 | 0~135 | 0~135 | 0~135 | 0~135 | 0~135 | 0~135 | -30~90 | -30~90 |
| Max Load Eccentricity (mm) | 300 | ||||||||||
| Max Load Gravity Center From Table Top (mm) | 300 | ||||||||||
| Turning and Speed Adjusting Method | Stepless Via Inverter | ||||||||||
| Control Voltage | Customized | ||||||||||
| Pendant | Customized | ||||||||||
| Power Source | 220V/380V/400V/415V/440V/460V-3P-50HZ/60HZ | ||||||||||
| Color | Blue or Customized | ||||||||||
