3t Elevating Welding Positoner with 5 Jaws Chuck

Get precise and efficient welding with our 3t Elevating Welding Positioner with 5 Jaws Chuck. As a factory, we ensure top-quality products for your welding needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HBJ-30
Condition
New
Speed of Table
0.23rpm
Size of Table
1400mm
Turning Power
1.5kw
Tilt
2.2
Max Gravity Distance
200mm
Overturning
0.05-0.5 Rpm
Max Turning Distance
2100mm
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Loat 3000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month

Product Description

3T Elevating Welding Positoner With 5 Jaws Chuck

Quickly Details:
Type: Hydraulic Welding Positioner / Welding Turning Table /
Brand:MISA
Condition:100% brand new
Model number:HBJ-30
Capacity:1000kg-200,000 kg
Consist: (1) Main frame (1) Control box with hand panel
Voltage:110V-600V
Painting Color:Yellow & Blue /Yellow & Grey / Yellow & Black / Red&Black
Place of origin:Wuxi , China(Mainland)


Product Parameter:
Model Rated load Cap
(tons)
Power (kw) Max Gravity Distance
(mm)
Max
centroid Eccentricity (mm)
Table Max Rotation Ф@ 90
degree
Tilt Angle (degree)
Turning Tilt Speed(rpm) Diameter (mm)
Rotation
(variable)
Tilt (constant)
HBJ-01 0.1 0.06     /. 100 150 0.40~4.0 man. 400 600 0~90
HBJ-03

0.3 0.37     /. 100 150 0.10~1.0 man. 600 800 0~90
HBJ-06

0.6 0.75 0.75 100 150 0.09~0.9 1.1 1000 1500 0~90
HBJ-12 1.2 1.1 1.5 150 200 0.05~0.5 0.67 1200 2050 0~120
HBJ-20 2 1.1 1.5 150 200 0.05~0.5 0.23 1400 2100 0~120
HBJ-30 3 1.5 2.2 200 200 0.05~0.5 0.23 1400 2100 0~120
HBJ-50 5 3 3 300 300 0.05~0.5 0.14 1500 2500 0~120
HBJ-80 8 3 3 300 300 0.05~0.2 0.14 2000 3240 0~120
HBJ-100 10 3 4 400 400 0.05~0.2 0.14 2000 3240 0~120
HBJ-150 15 3 5.5 500 200 0.05~0.5 0.14 2200 3400 0~120
HBJ-200 20 4 7.5 630 200 0.05~0.5 0.14 2500 3400 0~120

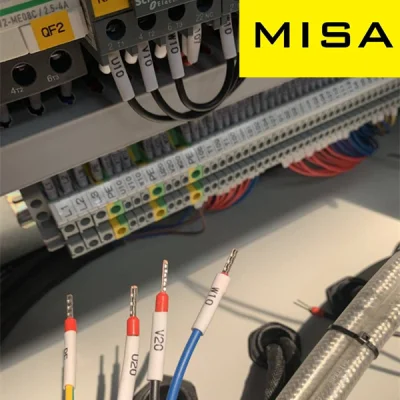

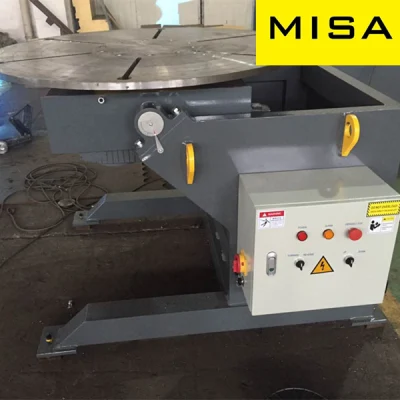

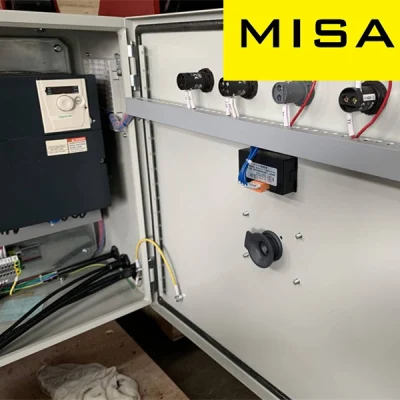

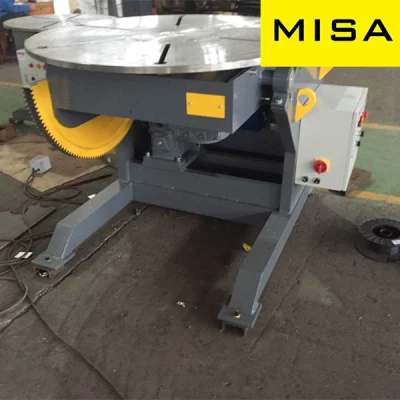

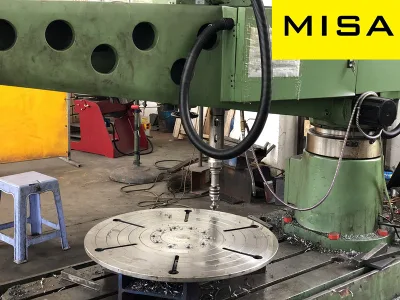

Product Photo:
3t Elevating Welding Positoner with 5 Jaws Chuck
3t Elevating Welding Positoner with 5 Jaws Chuck
3t Elevating Welding Positoner with 5 Jaws Chuck


Application:
Hydraulic welding Positioner major used in cylinder welding , such as Marine , Oil&Gas ; Offshore , Petro Chemical ; Plate Heat Exchanger ; Charged air cooler ; Pressure Vessel ; Boiler ; Pipe system&Steel works etc.
1Pressure vessels.
2Pipe manufacturing industries
3Wind power fabrication
4Chemical & fuel storage tank fabrication
5Any heavy cylindrical job
6Cylindrical tank's welding , polishing , rubber lining , assembling , etc
7Match up with other tools for welding or assembling for cone and section equality solid of revolution
8Customized special welding rotators according to client's requirements.


Product Description:
Hydraulic welding positioner is generally consists of worktable rotation mechanism , turnover mechanism and electric control system. The worktable is tilting by motor , accurate and reliable positioning ; it makes the work piece in perfect position for welding. The worktable adopts AC frequency conversion speed , so large range of variable speed and high precision.


Packing And Shipment:
3t Elevating Welding Positoner with 5 Jaws Chuck
3t Elevating Welding Positoner with 5 Jaws Chuck
3t Elevating Welding Positoner with 5 Jaws Chuck

Kindly Noted:
1.You can choose Fixed type or Elevating type .
2.Welding Positioner can tilting from 0° to 120°, rotation 360° via VFD control.
3. Standard Voltage is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
4. Controlled is remote-control box, optional is foot switch
5. If customer need more special requirements , we could study with our engineer.
