Basic Info.
Model NO.
HJ4040
Welding Tilter Type
Flexible Combination
Condition
New
Function
Pipe Auto Welding
Model
Hj-4040
Effective Stroke
4000 mm
Cross Arm Lifting Speed
1000 mm/Min
Total Boom Length
6000 mm
Column Rotate Angle
Customized
Boom Speed
140-1400 mm/Min
Cross Adjustment
Electrical
Delivery Time
15 Days
Payment
L/C T/T
Cable Length
12m
Wire Feeder
Yes
Welder
Saw,TIG,MIG,Mag
Trolley Speed
2000 mm/Min
Trolley Height
380 mm
Transport Package
Standard Packing
Trademark
Lemar
Origin
Jiangsu, China
HS Code
8428909090
Packaging & Delivery
Package Size
690.00cm * 162.00cm * 100.00cm
Package Gross Weight
7240.000kg
Product Description

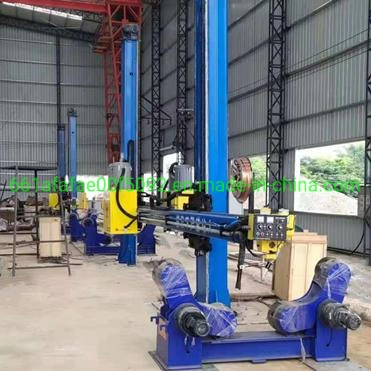

The welding operation column boom welding manipulator is a device that sends and maintains the TIG MIG MAG SAW welding head or welding torch in the position to be welded, or moves the flux along a prescribed trajectory at a selected welding speed.
The welding manipulator is mainly composed of operating device, control device, power source device and process support device.

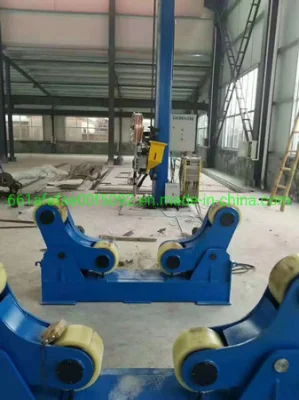

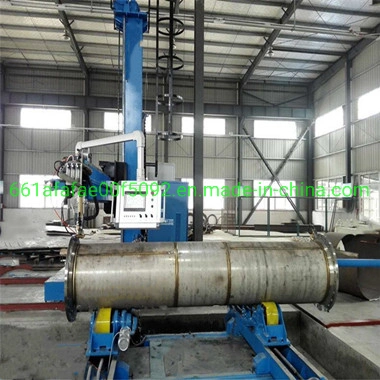

The welding manipulator is combined with the welding roller and the welding positioner to complete the inner circumferential seam welding and outer circumferential seam welding of the Pipe tank vessel. , fillet welding, automatic welding of internal and external longitudinal seams.
Lemar company do machines according to your needs,please feel free to send us your requirements of welding manipulator,welding rotator and welding positioners.
The welding manipulator is mainly composed of operating device, control device, power source device and process support device.
The welding manipulator is combined with the welding roller and the welding positioner to complete the inner circumferential seam welding and outer circumferential seam welding of the Pipe tank vessel. , fillet welding, automatic welding of internal and external longitudinal seams.
Lemar company do machines according to your needs,please feel free to send us your requirements of welding manipulator,welding rotator and welding positioners.
Specifications:
| No. | Item | Specification |
| 1 | Column height | 4000mm |
| 2 | Effective stroke of beam lifting | 4000mm |
| 3 | Effective travel of beam telescopic | 5000mm |
| 4 | Beam lift speed | 1150mm/min |
| 5 | Beam telescopic speed (stepless speed regulation) | 140-1400 mm/min |
| 6 | Adjustable range of machine head up and down | 100mm |
| 7 | Left and right adjustment range of the machine head | 100mm |
| 8 | Head up, down, left and right to adjust the speed | 120mm/min |
Lemar machinery Equipment Co.,Ltd is committed to H beam Production line machine (PEB H BEAM FABRICATION MACHINES),Auto assembly machine,Submerged welding gantry type machine,Flange straightening machine,End face milling machine,Sand shot blasting machine,
And vessel tank pipe wind power fabrication line,consists of:
Seam welding machine,TIG/MIG/MAG Seam welding rotator,welding positioner,welding manipulator,Straight seam welding machine,Circular seam welding machine,etc.
Please kindly visit our website and send mail call us!
