Basic Info.
Model NO.
LB-50
Max Eccentricity Distance
200mm
Tilting Angle
0-135°
Welding Turning Rolls Type
Adjustable
Welding Tilter Type
Flexible Combination
Condition
New
Input Power
380V
Vertical Load Weight
500kg
Horizontal Load Weight
300kg
Mode
Singe Axis or Double Axis
Reducer
RV Reducer
Repeatability
0.1mm
Tilt Range
0-360 Degree
Rotatring Speed
0-3r/Min
Turning Speed
0-3r/Min
Rotatring Power
0.75kw
Table Size
600mm
OEM
Yes
Turning Angle
90 Degree
Lead Time
20 Days
Colour
Customized
Transport Package
Standard
Trademark
Lemar
Origin
Jiangsu, China
HS Code
8428909090
Packaging & Delivery
Package Size
2350.00cm * 1050.00cm * 2150.00cm
Package Gross Weight
2000.000kg
Product Description

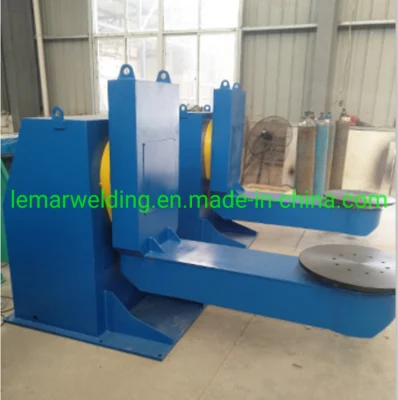

LB50 double rotary welding positioner is a special tool designed according to the requirements of users.
Slip ring device, conductive device, two sets of tooling fixtures and other components.

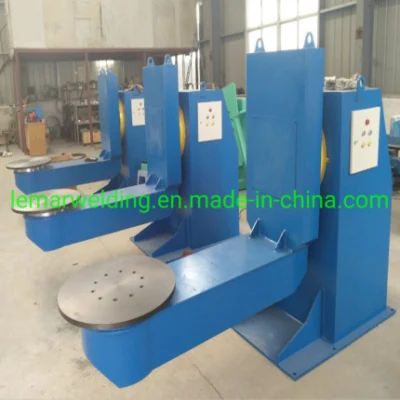

L type Robotic welding positioner has the advantages of advanced shape, compact structure, reasonable layout, sophisticated technology and easy operation.
The L type lifting welding positioner can complete the rotation and flipping of the workpiece, ±360 degree rotation.
The rotation adopts speed regulation, and the overturn adopts constant speed.
Slip ring device, conductive device, two sets of tooling fixtures and other components.
L type Robotic welding positioner has the advantages of advanced shape, compact structure, reasonable layout, sophisticated technology and easy operation.
The L type lifting welding positioner can complete the rotation and flipping of the workpiece, ±360 degree rotation.
The rotation adopts speed regulation, and the overturn adopts constant speed.
| Maximum load-bearing capacity of L type welding positioner | 5000KG |
| Work table size | φ1000mm (parameters can be modified according to customer requirements) |
| Flip center height | 1980mm |
| Rotation speed of welding positioner | 0.05-0.5rpm (speed regulation) |
| L-shaped cantilever overturning speed | 0.50rpm |
| Maximum drive torque of the kturning table | 10000N.m |
| Maximum driving torque of L-shaped cantilever | 12000N.m |
| The power of the rotary motor of the worktable | 2.2KW |
| L-shaped cantilever overturning motor power | 3.0KW |
| Oversize | length*width*height 2350*1050*2150mm |
| No. | Name |
| 1 | Headstock |
| 2 | L type welding positioner arm |
| 3 | Flip deceleration part |
| 4 | Rotary deceleration part |
| 5 | Electrical control |
| 6 | Random data |
The electric control box of Robotic welding positioner is composed of frequency conversion speed regulation system, contactors, buttons, etc.
The main low-voltage electrical components are Siemens and other well-known brands, which are reliable in performance and easy to maintain.
The frequency conversion speed regulation system adopts domestic low-noise, high-performance, multi-functional frequency converters, with wide-range, constant-torque speed regulation characteristics, stable speed regulation, high overall stability, and strong anti-interference ability.
