5t Pallet Electric Handling Bogie Turntable Running on Rail

Get reliable and efficient 5t Pallet Electric Handling Bogie Turntable Running on Rail from our factory. Enhance your material handling capabilities.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
turntable
Special Function
Anti-Explosion, Heat-Resistant, Lifting, Dumpling
Color
Customzied
Control Mode
Pendant/Remote/PLC Control
Power Mode
Conductive Rails
Material
Steel
Feature
Can Running on Curved & "L" Shape Rails
Transport Package
The Whole Cart Will Be Packed by Tarp.
Trademark
PERFECT
Origin
Xinxiang
HS Code
84289090
Production Capacity
50 Sets/Month

Product Description

5t Pallet Electric Handling Bogie Turntable Running on Rail

1.Introduction of Electric Handling Bogie

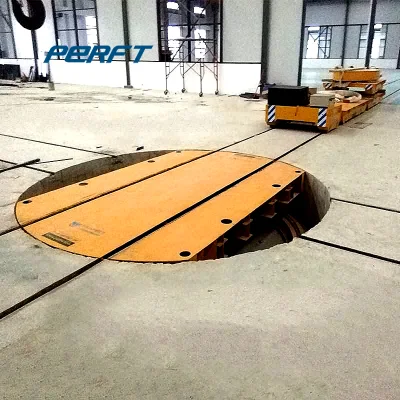

The turntable rail transfer car is a kind of handing system ,which can make the rail car turn 90 degree on rails .Principle: transfer car runs on the turntable ,which will automatically rotate or manually rotate to realize the joint with vertical rails .After turnable rotating ,the transfer car can run along the vertical rails .The handing solution can be applied in the occasion such as ring rails ,etc. The turnable system runs steadily and has the features such as high rail jointing accuracy and can meet full automatic electrical control.
5t Pallet Electric Handling Bogie Turntable Running on Rail

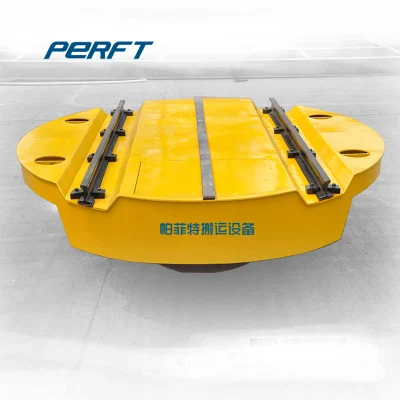

2.Product detail
5t Pallet Electric Handling Bogie Turntable Running on Rail
3.Parameter of turntable transfer cart
Model BXC-2t BXC-20t BXC-50t BXC-100t BXC-150t
Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity 180 180 330 440 600
Battery Voltage 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

4.Advantages of Electric Handling Bogie
Low noise   It causes low noise level.
Maximum safety   Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
Easy for operation  These vehicles are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
Easy to implement into manufacturing process  Operates on standard floors; Do not require complex or permanent installation
Suitable for All Kinds of Weight  The steering battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

5. Customizable of Electric Handling Bogie
Appearance:Table Size, Table Material, Table type, Rated Load, Color, Wheel Base , Detachable structure etc.
Special Function: Hydraulic Lift Table, Dumpling, Climbing, V shape, PLC control system, Automatic Positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system etc.
Safety Device: Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails etc.
Special Design: Round corner, Hold pendant box, Lifting hole etc.


6.Application of Electric Handling Bogie
Uses of heavy industrial transfer carts:
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
5t Pallet Electric Handling Bogie Turntable Running on Rail

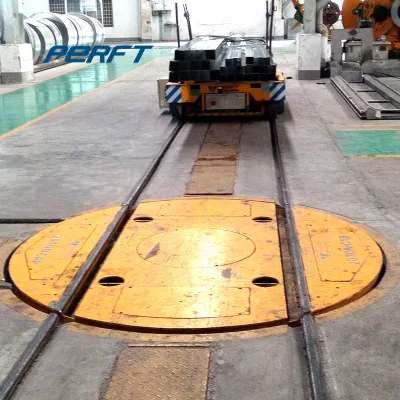

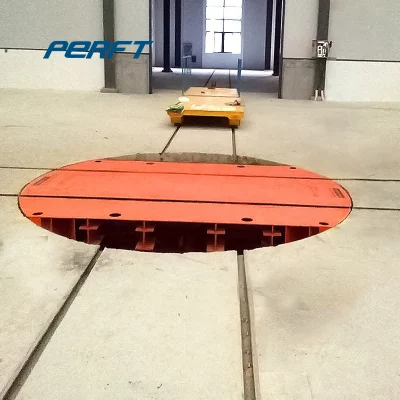

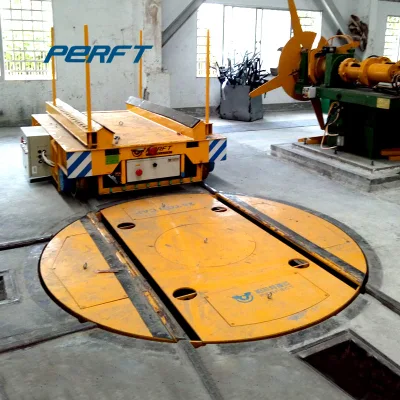

7.Applicable sites of Electric Handling Bogie

PERFECT conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!
5t Pallet Electric Handling Bogie Turntable Running on Rail

8. Factory and Delivery
5t Pallet Electric Handling Bogie Turntable Running on Rail
5t Pallet Electric Handling Bogie Turntable Running on Rail 5t Pallet Electric Handling Bogie Turntable Running on Rail

9. Q&A
Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1.   Coils (V-Groove deck)
2.   Tanks (size/stability for uniformly distributed loads)
3.   Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4.   Sub-Assembly shuttle from one line to another line
5.   Maintenance cart for motors and pumps
6.   Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7.   Material shuttle for steel tubing (flat decking with guard rails)
8.   Elevating platform for assembly process (integrated screw-jack table)
9.   Sand casting (flat decking)
