Basic Info.
Model NO.
HB50
Certificate
CE, ISO
Function
for Welding
Color
Blue; or as Customers′ Requirement
Transport Package
Wooden Case
Specification
Special
Trademark
Datang
Origin
Jiangsu, China
HS Code
84688000
Production Capacity
500 Sets/Month
Product Description

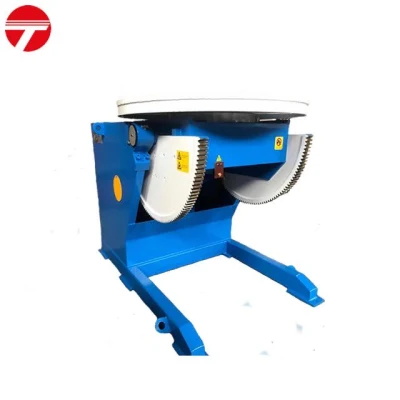

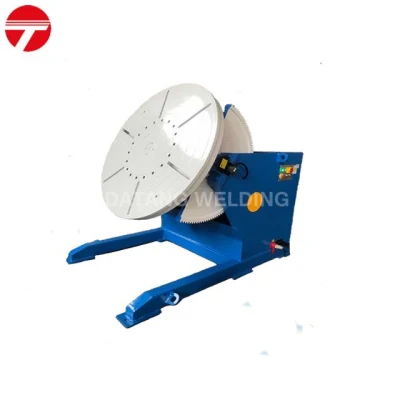

Welding positioners
CE, ISO Certificate.
Design according to your special requirement.
Consists of working table rotation unit and tilting unit.
Controlled by variable frequency and stepless.
By the working table elevating, the workpiece can be positioned and achieve the welding position by the worktable tilting and rotating.
II. Advantage
1). stable and good performance
2). good-loking appearance
3). goods in store
4). AMERICAN INV o ERTER
5). the rotary table can be made completely as customers' requirement
6). good quality product at a favourable price, providing with the excellent after-service
CE, ISO Certificate.
Design according to your special requirement.
Consists of working table rotation unit and tilting unit.
Controlled by variable frequency and stepless.
By the working table elevating, the workpiece can be positioned and achieve the welding position by the worktable tilting and rotating.
II. Advantage
1). stable and good performance
2). good-loking appearance
3). goods in store
4). AMERICAN INV o ERTER
5). the rotary table can be made completely as customers' requirement
6). good quality product at a favourable price, providing with the excellent after-service
| Type | HB-01 | HB-03 | HB-06 | HB-12 | HB-30 | HB-50 | HB-100 | |
| Rated weight Bearing(Kg) | 100 | 200 | 600 | 1200 | 3000 | 5000 | 10000 | |
| Overturning Veloctity(rpm) | 0.44 | 0.11 | 0.080.8 | 0.080.8 | 0.050.5 | 0.050.5 | 0.050.2 | |
| Speed of Table(rpm) | by hand | by hand | 0.55 | 0.4 | 0.23 | 0.14 | 0.14 | |
| Turning angle(°) | 0120 | 090 | 090 | 090 | 0120 | 0120 | 0120 | |
| Size of working Table(mm) | Φ400 | Φ600 | Φ1000 | Φ1200 | Φ1400 | Φ1500 | Φ2000 | |
| Power(KW) | Turning | 0.18 | 0.18 | 0.37 | 0.75 | 1.5 | 2.2 | 3 |
| Overturning | / | / | 0.75 | 1.1 | 1.5 | 3 | 5.5 | |
| May of setting | Frequency Conversion Stepless | |||||||
| Max distance of Gravity center(mm) | 150 | 100 | 100 | 100 | 150 | 200 | 250 | |
| Max eccenteric Distance(mm) | 100 | 100 | 100 | 150 | 200 | 300 | 400 | |
| Max turning Diameter(mm) | Φ600 | Φ800 | Φ1500 | Φ2050 | Φ2100 | Φ2500 | Φ3240 | |
