Basic Info.
Model NO.
BWJ-06
Condition
New
Function
Pipe Flange Welding Turning Table
Control Mode
Normal or CNC
Max Loading Weight
600kg(Can Customized)
Table Turning Angle
0-135
Turning Table Rotation Speed
0.1-1 Rpm
Table Diameter
600mm
Motor
0.37kw
Flip Angle
0-90
Lead Time
3 Days
Chuck
Optional
Welding Mode
Pipe TIG MIG Welding
Warranty
1 Year
Color
Customized
CE Certificate
Yes
Customized
Yes
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
3000PCS/Year
Product Description

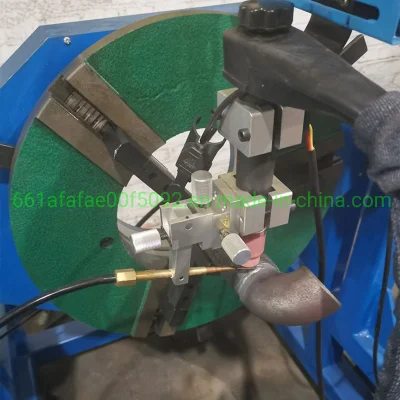

600kg Vessel Circumferential Rotary Seam Welding Positioner with Chuck
The welding positioner is a device used to drag the workpiece to be welded, so that the welding seam to be welded moves to the ideal position for welding operation.
Rotary welding turntable is widely used in pressure vessel, metallurgy, electric power, chemical industry, machinery, metal structure and other industries.
DC stepless speed regulating motor is selected, and the motor is equipped with a reduction box to drive the large and small gears to rotate, thereby driving the table surface of the positioner to rotate, realizing 0-90°, 0-360° infinite rotation.
Specifications:
The welding positioner is a device used to drag the workpiece to be welded, so that the welding seam to be welded moves to the ideal position for welding operation.
Rotary welding turntable is widely used in pressure vessel, metallurgy, electric power, chemical industry, machinery, metal structure and other industries.
DC stepless speed regulating motor is selected, and the motor is equipped with a reduction box to drive the large and small gears to rotate, thereby driving the table surface of the positioner to rotate, realizing 0-90°, 0-360° infinite rotation.
Specifications:

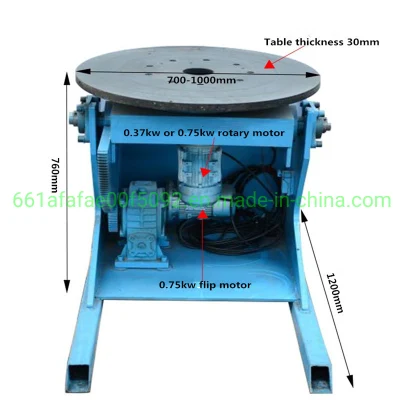

| Model | Max loading Kg | Worktable diameter mm | Table rotation speed r/min | Table turning speed r/min | Allowable center of gravity X mm | Allowable eccentricity Y mm | Rotary motor(kw) | Flip motor (kw) | Table height mm |
| HB-06 | 600 | 800-1000 | 0.05-1.25 | 0.75 | 150 | 200 | 0.37 | 0.55 | 760-1000 |

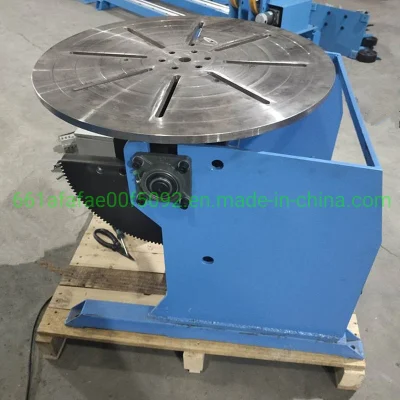

The worktable can be turned over freely, and the worm gear structure is convenient for operation
1.Adopt new technology circuit boards, advanced components, small size and full functions.
Iron sheet resistors and integrated circuits make the performance of the welding positioner more stable, the protection function is stronger, and the anti-interference ability is stronger
2.Stepless speed change, the working speed of the positioner can be adjusted arbitrarily according to the welding requirements, which is convenient for welding
3.With timing function, it will automatically stop working when the time is set

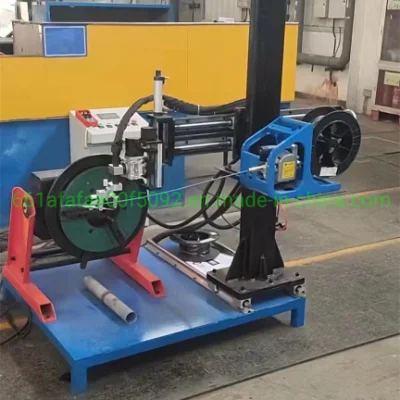

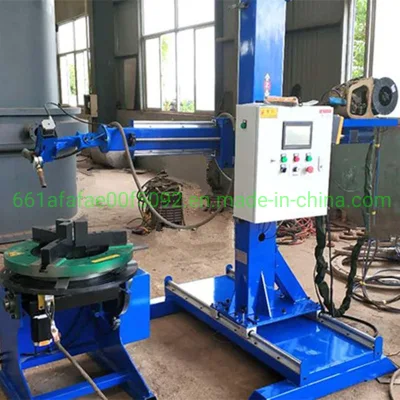

4.Automatic welding positioner turntable for pipes welding has the function of welding linkage
1.Adopt new technology circuit boards, advanced components, small size and full functions.
Iron sheet resistors and integrated circuits make the performance of the welding positioner more stable, the protection function is stronger, and the anti-interference ability is stronger
2.Stepless speed change, the working speed of the positioner can be adjusted arbitrarily according to the welding requirements, which is convenient for welding
3.With timing function, it will automatically stop working when the time is set
4.Automatic welding positioner turntable for pipes welding has the function of welding linkage
