Basic Info.
Model NO.
HGK-800
Max Loading Weight
800ton
Suitable Pipe Diameter
2000-10000mm
Roller Linear Speed
120-1200mm/Min
Motor Power
11kw
Speed Mode
AC Variable Frequency Stepless Speed Regulation
Lead Time
30 Days
Wheel Width
400mm
Warranty
1 Year
Wheels Quantity
8 Wheels
Wheel Material
Rubber and Steel Wheel
Other Names
Tank Rollers/Tank Rolls and Turning Rolls
Wheel Outside Diameter
950mm
Exported to
Canada, USA, Russia, Brazil, South Africa etc
Roller Material
42CrMo Forged Steel Wheel
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Product Description

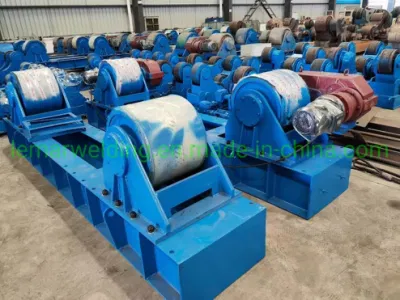

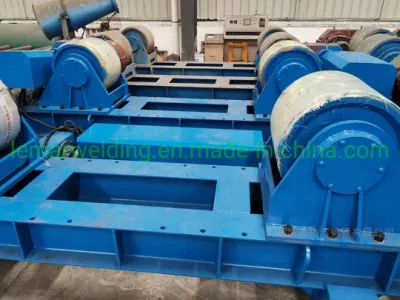

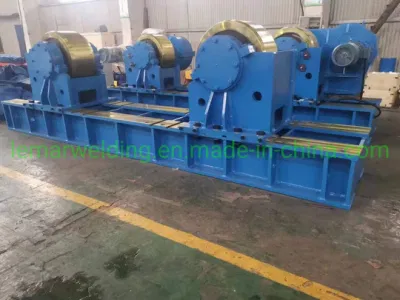

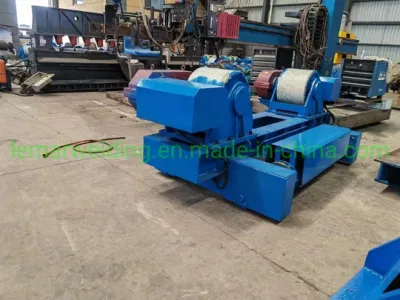

800T Adjustable type Offshore wind tower Welding rotator
The roller rotator is adjustable, and the adjustment method of the roller seat adopts screw classification to adapt to the change of the diameter of the workpiece.
The base of the roller rotator adopts welded parts and is composed of a base and a roller seat. The structure design is reasonable, and it has the advantages of good rigidity; the steel plate has sufficient strength; each moving part of the equipment is equipped with a lubrication system.
All the structural parts of the roller rotator are stress-relieved and annealed after welding, reprocessed, and sandblasted to ensure long-term performance and service life.
Specifications:
We have made a name for ourselves as the top manufacturer and exporter of items like welding rotators, positioners, column & booms welding manipulators, fit-up moving type welding rolls, transportation trolleys, and many more over a long period of time.
Our goods are renowned for their high caliber, dependability, and toughness, which helps our clients in more than ten different industries become more productive and productive.
We hold a company-wide certification for the ISO 9001:2015 Quality Management Standards.
Wuxi Lemar Machinery Equipments has been relied upon by our prestigious clients in the fields of heavy engineering, pressure vessel manufacture, energy & utilities, pharma, and construction.
The roller rotator is adjustable, and the adjustment method of the roller seat adopts screw classification to adapt to the change of the diameter of the workpiece.
The base of the roller rotator adopts welded parts and is composed of a base and a roller seat. The structure design is reasonable, and it has the advantages of good rigidity; the steel plate has sufficient strength; each moving part of the equipment is equipped with a lubrication system.
All the structural parts of the roller rotator are stress-relieved and annealed after welding, reprocessed, and sandblasted to ensure long-term performance and service life.
| HGK-800T Adjustable type Welding rotator(fixed) | ||
| Item | Machine specification | Details |
| ★ | Name | 800T Adjustable |
| ★ | Max load capacity | 800T |
| ★ | Adapt to workpiece diameter range | φ(2000-10000)mm |
| ★ | Roller frame rotation drive capacity | 800T |
| ★ | 1,Specifications | |
| ☆ | 1.1 Rotator loading weight | 800T |
| ☆ | 1.1.1 Rotary Drive Inverter Motor brand and Model | INVERTEK,2*11Kw Inverter motor |
| ☆ | 1.1.2Rotary drive reducer Brand and model | Jiangsu Kaibo |
| ☆ | 1.1.3 Linear rotate speed | (120-1200)mm/min |
| ☆ | 1.1.4 Roller material | 42CrMo Forged steel wheel |
| ☆ | 1.1.5 Wheel outside diameter | Φ950mm |
| ☆ | 1.1.6 Wheel width | 400mm |
| ☆ | 1.1.7 Adjustment method of center distance of roller seat | Manual binning adjustment |
| ★ | 2,Electrical control system | |
| ☆ | 3.1 Adaptive voltage | 380V 3P 50Hz |
| ☆ | 3.2 VFD Brand Specifications | Japanese |
| ☆ | 3.3 Remote control | Wireless remote control (100m) |
| ☆ | 3.4 Remote control function | Start and stop, forward and reverse, speed regulation, emergency stop |
| ☆ | 3.5 Electric control cabinet and electric control requirements | The electric box is installed on the active end, the electric box and components have a complete protection circuit, and the control function panel of the roller frame |
| ☆ | 3.6 Provide electrical component brands | Japanese |
| ☆ | 3.7 Protection level of electric control cabinet | IP51 |
| ★ | 4. Bearing | Wafangdian Bearing Group |
| ★ | 5. Sand blasting rust removal grade, paint dry film thickness | Rust removal level reaches Sa2.0-2.5 level; 1 layer of zinc-rich primer and 2 layers of 75μ epoxy resin topcoat |
| ★ | 6. Equipment paint color | Blue (RAL5015) or customer specified color card number |
| ★ | 7. Motor protection measures | Protective shell, rotating mechanism gap protection |
