Basic Info.
Model NO.
KTG
Suitable Pipe Diameter
250-8000mm
Rubber Roller Diameter
250-750mm
Roller Linear Speed
6-60m/H
Speed Mode
AC Variable Frequency Stepless Speed Regulation
Lead Time
5-20 Days
Colour
Customized
Warranty
1 Year
Wheels Quantity
8 Wheels
Wheel Material
Rubber and Steel Wheel
Adjustable Way
Screw Adjustable Welding Rotator
Payment
T/T L/C
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Product Description

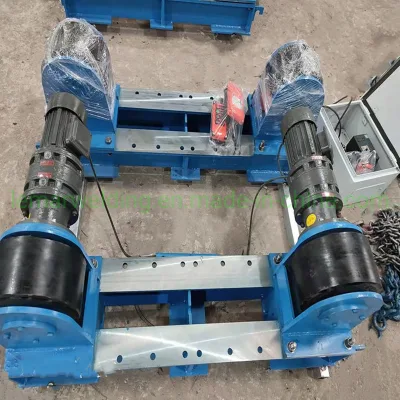

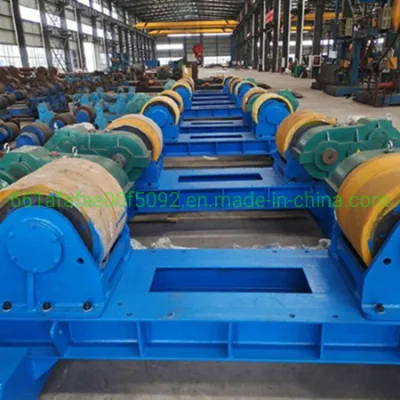

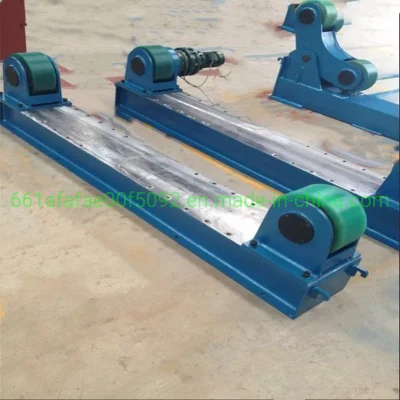

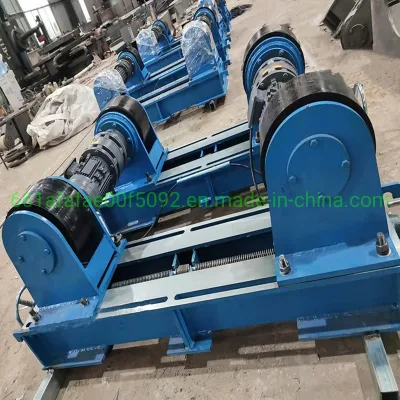

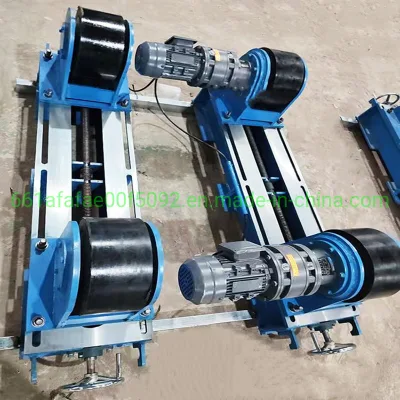

Automatic Screw adjustable roller rotator tank turning rolls
Welding rotator can be used to adjsut the cylinders pipes and vessels,Whether it is heavy-duty or light-duty.
A welding rotator can be used to position the cylinders.
Whether it is heavy-duty or light-duty.
Rotators can be used for welding to assist you save time and money on labor.
You can look at the many welding rotators that we have. It will raise productivity and welding quality.
Our products are made of certified structural steel, making them robust, light, and resistant enough to withstand challenging production settings.
Digital display is standard on every one of our rotators, which enhances uniformity and production control.
Our industrial foot control and hand Controllers go well with our rotators.
Specifications:
Welding rotators are Widely used in pressure vessels, boilers, chemical equipment, oil and gas, storage tanks, water pipes, shipyards, and wind energy, welding rotators are also utilized in these applications.
What daily maintenance do I need to do after first use of Adjustable welding rotator?
1.The obstacles on the welding roller should be eliminated before use, and the fire source and raw oil should not be touched.
2.The oil labels of the rolling bearings and rolling bearing cover are smooth.
3.The worm wheel of the transmission system should remove the protective film of the transmission gear at the initial use, and brush a small amount of smooth oil on the transmission gear.
4.A small amount of clean oil should be added before the application of the thread of the patch, and the residual pollution oil must be eliminated when disassembling.
5.In order to make the device better work, all the transmission system needs to be lubricated on time, and the Welding rotor wire reducer must be queried once a month to fill the clean oil.
6. All transmission system parts on the welding turning rolls cannot be used before lubrication.
Wuxi Lemar Machiney Equipments main Products:
Portable CNC cutting machine
Desktop CNC cutting machine
Gate Gantry Type CNC cutting machine
Penetrating line cutting machine
Welding Robot and robot tables
Auto -welding machine in the pipe
Seam joint welding machine \ straight seam welding machine
H beam box beam product line machnes
Beam Assemby Welding Straightening Machines
Welding Positioner, Welding Rotator Turning Rolls, Welding Column and Boom Manipulator) and various non -standard welding production lines. Wuxi Lemar Machiney Equipments Co., LTD is dedicated to mechanical manufacturing, ship manufacturing, petrochemical, electricity equipment, metallurgical mines, construction machinery, pressure vessels, fan manufacturing, dust removal equipment, steel structures, bridges, construction, vehicle manufacturing and other industries
Welcome friends from all over the world to call or email us!
Welding rotator can be used to adjsut the cylinders pipes and vessels,Whether it is heavy-duty or light-duty.
A welding rotator can be used to position the cylinders.
Whether it is heavy-duty or light-duty.
Rotators can be used for welding to assist you save time and money on labor.
You can look at the many welding rotators that we have. It will raise productivity and welding quality.
Our products are made of certified structural steel, making them robust, light, and resistant enough to withstand challenging production settings.
Digital display is standard on every one of our rotators, which enhances uniformity and production control.
Our industrial foot control and hand Controllers go well with our rotators.
Model
| Loading Capacity (kg) | Pipe/Tank Diameter (mm) | Rubber Roller Dia. & Width (mm) | Roller Speed (m/h) | Motor Power (kw) |
Speed Adjust
| |
Rubber Roller | Steel Roller | ||||||
KTG-5 | 5000 | Φ250-2300 | Φ250*100 | Φ240*20*2 | 6-60 | 0.75 | Variable Frequency Drive (VFD)
|
KTG-10 | 10000 | Φ320-2800 | Φ300*120 | Φ290*25*2 | 1.1 | ||
KTG-20 | 20000 | Φ500-3500 | Φ350*120 | Φ340*30*2 | 1.5 | ||
KTG-30 | 30000 | Φ600-3800 | Φ350*120 | Φ340*30*2 | 2.2 | ||
KTG-40 | 40000 | Φ600-4200 | Φ400*120 | Φ390*40*2 | 3 | ||
KTG-50 | 50000 | Φ700-4500 | Φ400*120 | Φ390*40*2 | 4 | ||
KTG-60 | 60000 | Φ750-4800 | Φ450*120 | Φ440*50*2 | 4 | ||
KTG-80 | 80000 | Φ850-5000 | Φ500*120 | Φ490*60*2 | 5.5 | ||
KTG-100 | 100000 | Φ1000-5500 | Φ500*120 | Φ490*70*2 | 7.5 | ||
KTG-150 | 150000 | Φ1100-6000 | Φ500*120 | Φ600*Φ280 | 2*5.5 | ||
| KTG-250 | 250000 | Φ1200-7000 | / | Φ700*380 | 2*5.5 | ||
| KTG-500 | 500000 | Φ1800-8000 | / | Φ850*350 | 2*7.5 | ||
What daily maintenance do I need to do after first use of Adjustable welding rotator?
1.The obstacles on the welding roller should be eliminated before use, and the fire source and raw oil should not be touched.
2.The oil labels of the rolling bearings and rolling bearing cover are smooth.
3.The worm wheel of the transmission system should remove the protective film of the transmission gear at the initial use, and brush a small amount of smooth oil on the transmission gear.
4.A small amount of clean oil should be added before the application of the thread of the patch, and the residual pollution oil must be eliminated when disassembling.
5.In order to make the device better work, all the transmission system needs to be lubricated on time, and the Welding rotor wire reducer must be queried once a month to fill the clean oil.
6. All transmission system parts on the welding turning rolls cannot be used before lubrication.
