Basic Info.
Model NO.
zhb
Condition
New
Lead Time
10 Days
After-Sales Service
Video Technical Support, Online Support
Warranty
13 Months
Transport Package
Export Standards
Trademark
Fengwei
Origin
China
HS Code
8468800000
Production Capacity
550 Sets/Month
Product Description
Product Description

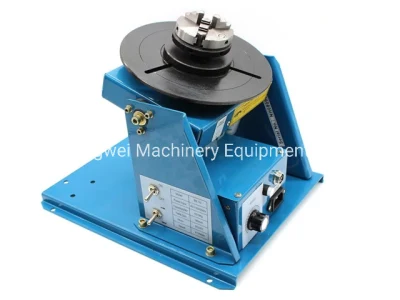

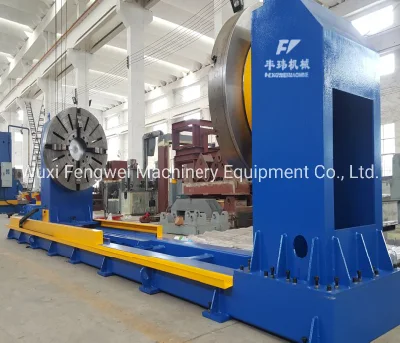

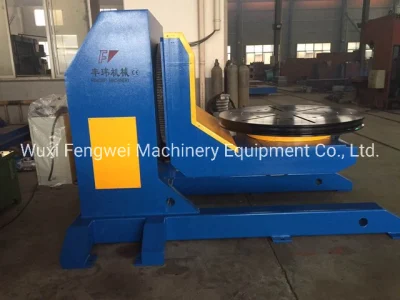

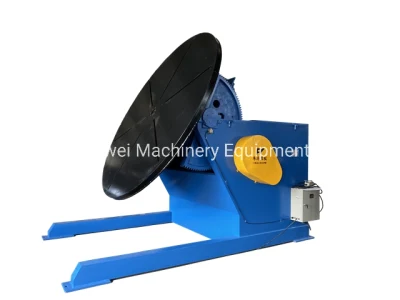

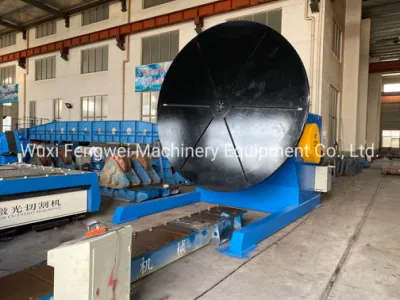

Welding positioners greatly enhance productivity when welding pipe, shafts, wheels, elbows and other fittings. Along with welding turntables, pipe turning positioners are particularly useful when rotating or positioning workpieces with large offset loads.
The frame is welded by plates and profiles, and has sufficient mechanical strength to ensure long-term use without deformation. The groove is more convenient for workpiece fixing. Chucks can be configured according to customer requirements. The rotation of the worktable adopts a slewing bearing, which has a strong bearing capacity.
AC variable frequency governor is mainly used to control and adjust the speed of three-phase AC asynchronous motors, with stable performance, rich combination functions, good dynamic characteristics, super overload capacity and unparalleled flexibility. Electrical control system adopts IP45 above protection against dust and heavy rain and remote wire / wireless control box operation. The high- standard electrical control box has neat wiring and clear grounding signs.
Product Feature
Technical Parametre
Welding positioners greatly enhance productivity when welding pipe, shafts, wheels, elbows and other fittings. Along with welding turntables, pipe turning positioners are particularly useful when rotating or positioning workpieces with large offset loads.
The frame is welded by plates and profiles, and has sufficient mechanical strength to ensure long-term use without deformation. The groove is more convenient for workpiece fixing. Chucks can be configured according to customer requirements. The rotation of the worktable adopts a slewing bearing, which has a strong bearing capacity.
AC variable frequency governor is mainly used to control and adjust the speed of three-phase AC asynchronous motors, with stable performance, rich combination functions, good dynamic characteristics, super overload capacity and unparalleled flexibility. Electrical control system adopts IP45 above protection against dust and heavy rain and remote wire / wireless control box operation. The high- standard electrical control box has neat wiring and clear grounding signs.
Product Feature
Technical Parametre
| Model | Rated Weight Bearing(kg) | Overturning Velocity(rpm) | Speed of Turning Table(rpm) | Turning Angle(°) | Size of Working Table(mm) | Turning(kw) | Overturning(kw) | Setting Method | Max Turning Diameter(mm) |
| ZHB-01 | 100 | 0.1-1 | Manual | 0-120 | ¢400 | 0.18 | / | Frequency Conversion Stepless Speed | ¢600 |
| ZHB-03 | 300 | 0.2-2 | Manual | 0-90 | ¢600 | 0.18 | / | ¢800 | |
| ZHB-06 | 600 | 0.09-0.9 | 1.1 | 0-90 | ¢1000 | 0.75 | 0.75 | ¢1500 | |
| ZHB-12 | 1200 | 0.05-0.5 | 0.67 | 0-90 | ¢1200 | 1.1 | 1.1 | ¢2050 | |
| ZHB-30 | 3000 | 0.05-0.5 | 0.23 | 0-120 | ¢1400 | 1.5 | 1.5 | ¢2100 | |
| ZHB-50 | 5000 | 0.05-0.5 | 0.14 | 0-120 | ¢1500 | 2.2 | 3 | ¢2500 | |
| ZHB-100 | 10000 | 0.05-0.5 | 0.14 | 0-120 | ¢2000 | 3 | 5.5 | ¢3240 |
