High-Quality Automatic Pipe and Flange Welding Manipulator

Basic Info.

Model NO.

NAEC

Origin

China

HS Code

85153190

Production Capacity

200 Sets/Year

Product Description

NAEC---- Minimize the outdoor work, Maxmize customer's profit!

Suitable for industries of: OIL AND GAS, REFINERY FACILITIES, OFFSHORE &SHIPBUILDING, POWER PLANT, etc

Reference: CCC, L&T, PEC, Rotary Engineering, Petrol Steel, JSL, etc.

Automatic Two-Torch Pipe & Flange Welding Machine

Automatic Two-Torch Pipe and Flange Welding Manipulator

Automatic Two-Torch Pipe and Flange Welding Manipulator

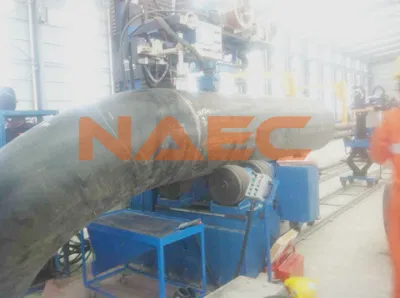

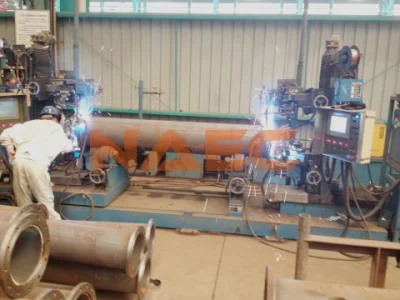

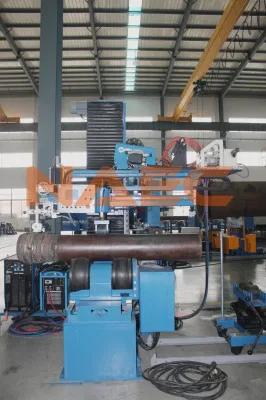

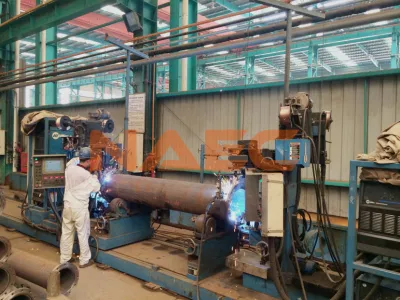

The machine is able to synchronously weld on inside & outside of flanges. with welding positioner provide steady driving power by unlimited rotating, it can satisfy welding requirements of multi-layers and multi-seams. Speed stepless regulating device can effectively control welding speed.

Features:
1, Two models available: 16" type and 16"-36" type
2, CO2 / MIG / SAW are optional
3, More than 99% qualified first X-ray test.

It has the advantages of easy structure, high welding efficiency and quality, which is a key equipment in shipbuilding pipe welding.

Pipe Spool Fabrication Machines

1		Pipe Cutting& Beveling All-in-one Machine >Suitable for pipes not larger than 8",max.thickness:20mm >Cutting efficiency:100times/8hrs >PLC control with automatic measuring to guarantee the same processing cycle >Widely used for small bore C.S/S.S production lines
2		High Speed Band-saw Cutting Machine >Three models available(16"type,24"type",48"type) >PLC system control;self-measuring function with precision:±0.5mm >Using hydraulic self-centering chuck >It only takes 6 minutes to cut a 24" pipe of 25mm thickness >Widely used for C.S/S.S production lines.
3		High Speed CNC Pipe End Beveling Machine >Automatic self-centering chuck >Single V,double V,U type bevel >Can be matched with pipe end turning devic >High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm) >Several models available:16",24",32",48"
4		Two / Multi- Axis CNC Flame/Plasma Cutting Machine >High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe. >Five/multi-axis cutting machine can profile more complicated outlines with various bevel type >Standard machine suitable for pipes nor larger than 24''

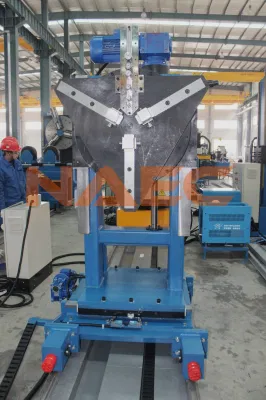

5		Multi-function Pipe Fitting-up Station >Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up. >Light-duty type(manual) and heavy-duty type(motorized) are available. >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type
6		Automatic Pipe Welding Station >With two welding heads >TIG/MIG/SAW are optional >PLC system control & WPS programmed >Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology. >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type
7		Conveyor Handling System >used for pipe convenient transporation during in pipe spool fabrication. >Its speed is adjustable between 2M to 20M/min.
