Basic Info.
Model NO.
HJ5050
Model
Hj Series
Effective Boom Stroke
5000mm
Effective Horizontal Stroke
5000mm
Welding Type
TIG MIG Mag Saw
Pipe Diameter
700-3000mm
Traveling Mode
Electric Trolley + Guide Rail
Lifting Stroke
1000-8000mm
Lifting Speed
850/1150mm/Min
Trolley Moving Speed
800-2000mm/Min
Rotation Degree
360 Degree
Wor with
Welding Rotator Welding Positioner
OEM
Yes
Colour
Customized
Exported to
Finland,Russia,France,Canada,Greece etc
Delivery Time
7 Days
Transport Package
Wooden Box
Trademark
Lemar
Origin
Wuxi, China
HS Code
8428909090
Production Capacity
1000 PCS/Year
Product Description

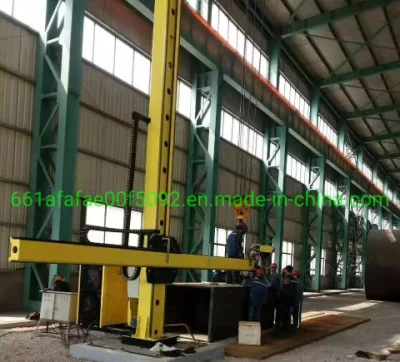

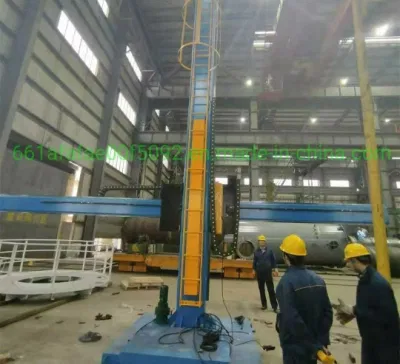

Automatic Welding Manipulator Machine Column Boom TIG SAW Welding Machine:
The welding manipulator is mainly composed of cross arm and column, including operating device, control device, power source device, process guarantee device, TIG MIG SAW welding machine, welding positioner and welding rotators.

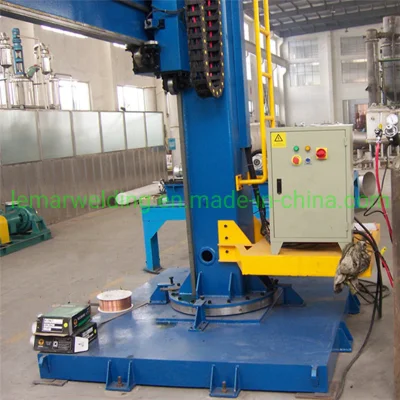

1. The operating device includes a guide rail, an inclination adjustment mechanism, a vertical guide mechanism, a welding torch clamp and a welding torch. The inclination adjustment mechanism can make the welding torch rotate positively and negatively around the center.
2. The control device is composed of an electrical control system, which can control the working state of the automatic column and boom welding machine welding manipulator.
3. The power source device is composed of cylinders, which are driven by air pressure for power transmission.
4. The process guarantee device is composed of a wire guide mechanism, a wire guide and a wire guide nozzle, which can realize the automatic guiding and positioning of the welding wire and ensure the quality of the weld.
Specification of Column and boom welding manipulator:
Optional configuration of automatic welding manipulator:

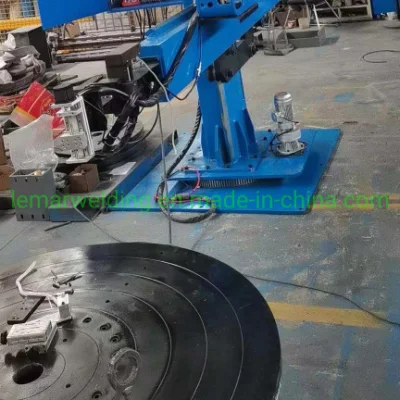

1.360° automatic or manual rotary welding manipulator
2. Movable orbital welding manipulator
3. Welding rotator roller table
4. Welding positioner and Welding chuck
5.TIG MIG SAW welding power source
6. Cross trimming device
7. Flux recycling machine
8. The camera tracks the welding path

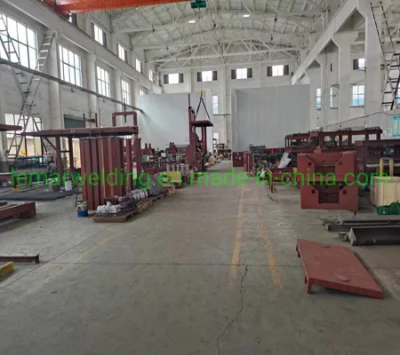

Our company specializes in the production of H-shaped steel box beam welding equipment, as well as various wind pipeline pressure vessel welding equipment, which can be individually customized according to customer requirements
FAQ:
1.Who are we?
Wuxi Lemar is one professional supplier of CNC Plasma Flame Gas cutting products and Automated welding equipment
2.How can we ensure quality?
Prior to mass manufacturing, there is always a pre-production sample; prior to shipment, there is always 100% quality inspection;
3. What products do we sell?
H beam production line machines,Box beam production line machine,CNC Plasma Flame cutting machines,Welding rotators,Welding turntable positioner,Welding manipulators,Seam welding machines,Welding torch, gas regulator, and accessories
4. What makes us better than other providers for your purchases?
15 years of welding industry experience.
Expert staff for quality assurance and technology R&D.
Quick, responsible, and top-notch service
5. What services are available from us?
FOB, CFR, CIF, EXW, DDU, and express delivery are acceptable terms for delivery;
6.Accepted Currencies for Payment: USD, EUR, and CNY;
Accepted forms of payment include cash, Western Union, credit card, T/T, and L/C.
The welding manipulator is mainly composed of cross arm and column, including operating device, control device, power source device, process guarantee device, TIG MIG SAW welding machine, welding positioner and welding rotators.
1. The operating device includes a guide rail, an inclination adjustment mechanism, a vertical guide mechanism, a welding torch clamp and a welding torch. The inclination adjustment mechanism can make the welding torch rotate positively and negatively around the center.
2. The control device is composed of an electrical control system, which can control the working state of the automatic column and boom welding machine welding manipulator.
3. The power source device is composed of cylinders, which are driven by air pressure for power transmission.
4. The process guarantee device is composed of a wire guide mechanism, a wire guide and a wire guide nozzle, which can realize the automatic guiding and positioning of the welding wire and ensure the quality of the weld.
| Model | HJ2*2 | HJ3*4 | HJ4*4 | HJ4*5 | HJ5*6 | HJ8*6 |
| Effective stroke of the boom lift | 2000mm | 3000mm | 4000mm | 4000mm | 5000mm | 8000 |
| Effective stroke of the horizontal arm telescopic | 2000mm | 4000mm | 4000mm | 5000mm | 6000mm | 6000mm |
| Pipe diameter(mm) | 500-2000 | 700-3000 | 1000-4000 | 1000-4000 | 1000-5000 | 1000-8000 |
| Column rotation angle | ±180° Manual | ±180° | ±180° | ±180° | ±180° | ±180° |
| Boom lift speed | 0.3m/min | 1m/min | 1m/min | 1m/min | 1m/min | 0.9m/min |
| Boom extension speed | 0.12-1.2m/min | |||||
| Trolley forward/backward speed | 1.5m/min | 3m/min | 3m/min | 3m/min | 3m/min | 3m/min |
| Center distance of trolley guide rail | 900mm | 1500mm | 1780mm | 1780mm | 1780mm | 2308mm |
Optional configuration of automatic welding manipulator:
1.360° automatic or manual rotary welding manipulator
2. Movable orbital welding manipulator
3. Welding rotator roller table
4. Welding positioner and Welding chuck
5.TIG MIG SAW welding power source
6. Cross trimming device
7. Flux recycling machine
8. The camera tracks the welding path
Our company specializes in the production of H-shaped steel box beam welding equipment, as well as various wind pipeline pressure vessel welding equipment, which can be individually customized according to customer requirements
