Basic Info.
Product Description

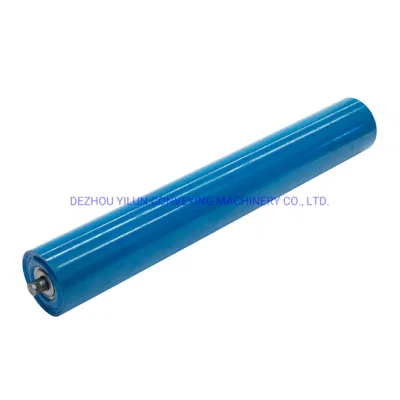

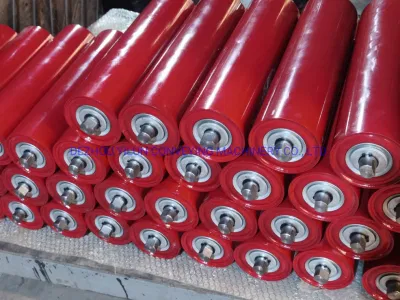

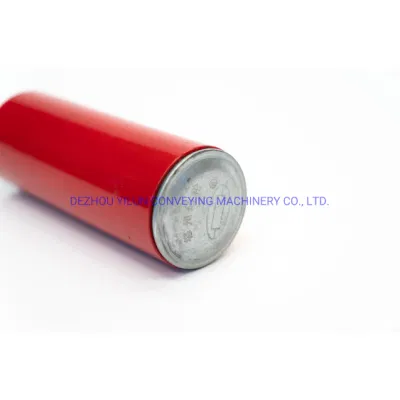

Factory equal troughing roller idlers/unequal troughing idlers/self-aligning idlers/impact troughing idlers/steel return idlers/live shaft idlers/flat carrier idlers/carrying idlers/carrying roller idler/factory produce idler/belt conveyor carrying roller idler manufacturer.
| Standard Diameter | Length Scope(mm) | Bearings Type(Min-Max) | Shell Wall Thickness | |
| mm | Inch | |||
| 63.5 | 2 1/2 | 150-3500 | 6204 | 2.0mm-3.75mm |
| 76 | 3 | 150-3500 | 6204 205 | 2.0mm-4.0mm |
| 89 | 3 1/3 | 150-3500 | 6204 205 | 2.0mm-4.0mm |
| 102 | 4 | 150-3500 | 6204 205 305 | 2.5mm-4.0mm |
| 108 | 4 1/4 | 150-3500 | 6204 205 305 306 | 2.5mm-4.0mm |
| 114 | 4 1/2 | 150-3500 | 6205 206 305 306 | 2.5mm-4.5mm |
| 127 | 5 | 150-3500 | 6204 205 305 306 | 2.5mm-4.5mm |
| 133 | 5 1/4 | 150-3500 | 6205 206 207 305 306 | 2.5mm-4.5mm |
| 140 | 5 1/2 | 150-3500 | 6205 206 207 305 306 | 3.5mm-4.5mm |
| 152 | 6 | 150-3500 | 6205 206 207 305 306 307 308 | 3.0mm-4.5mm |
| 159 | 6 1/4 | 150-3500 | 6205 206 207 305 306 307 308 | 3.0mm-4.5mm |
| 165 | 6 1/2 | 150-3500 | 6207 305 306 307 308 | 3.5mm-6.0mm |
| 177.8 | 7 | 150-3500 | 6207 306 307308 309 | 3.5mm-6.0mm |
| 190.7 | 7 1/2 | 150-3500 | 6207 306 307308 309 | 4.0mm-6.0mm |
| 194 | 7 5/8 | 150-3500 | 6207 307 308 309 310 | 4.0mm-6.0mm |
| 219 | 8 5/8 | 150-3500 | 6308 309 310 | 4.0mm-6.0mm |
1.Material: Steel,rubber
2.Bearing:6204,6205,6305,6306,6307,6308,6309,6310
3.Daimeter: Ø50-Ø219
4.Lenght:120mm-2200mm
5.Seal: double labyrinth seal
5.Workign life:30000-50000hours
6.Standards:GB,CEMA,JIS,DIN,AUSTRALIA
7.Color: mulit-color for choice
1.smooth, stable quality, maintenance-free.
2. the diameter of the small jump, rotate, smooth, long service life.
3.various forms of bearing and seal structure of any user to choose.
4. multi-channel labyrinth seal and prevent dust and water intrusion.
5. high precision special steel to ensure low vibration roller, low noise
6. Definitely water/dust proof
7. temperature/cold resistance
8. heavy duty carrying capacity
9. low total indicated runout
10. excellent dynamic balance

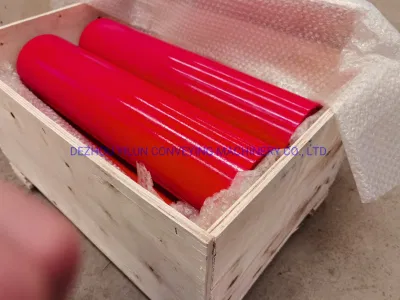

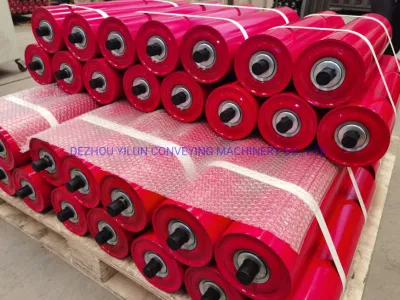

Pallet Packing or Wooden Box Packing of Conveyor roller & idler for shipping in 20ft or 40ft containers.
We give our customers the greatest support in after sale service.
1. Send the engineer to train how to install the conveyor face to face;
2. Any problems can be solved online in time;
3. Conveyor/Roller/Idler Parts are available in stock.
4. Strict Quality Control to keep the long life time.
Dezhou Yilun conveying Machinery Co.,Ltd was founded in 2005. It's registered capital is 11.68million CNY and It is private joint-stock enterprise. Our main products are cnoveyor roller,idler,frame, pulley,belt and belt conveyor system for TD75 ,DTII,DTIIA,CEMA ects. We has large lathes, numerical control, double pressing machine, double welding machine, double boring lathe, milling machine, sawing machine and so on. The products have gained various patents. We can produce more than one thousand rollers and ten pulleys per day.
We have the professional QC dept. to keep the good quality before the goods sent out.
According to differenct requirements of domestic and foreign customers' drawings, we can produce products complying to German DIN standard, Austrilian AS standard, Japanese JIS standard, American CEMA standard, South African SANS-SABS standard, Russian GOST standard, and French AFNOR standard, etc. The products are sold to Middle East,Africa ,Australia,Europe,Southeast Asia,Russia and some other countries and regions. We will Strengthen the inner management and improve our products' quality constantly.
We will offer the best products for customers from the beginning to the end.
