Basic Info.
Model NO.
DT/DT2A/TD75
Length
200 ~1600mm
Model
Φ76/89/108/133/159
Shaft Diameter
20/25/30/35/40mm
Bearing
6203/C4 6204/C4 6205/C4 6206/C4
Seal Type
Labyrinth Type
Shaft Material
Bright-Draw Steel Axle
Tube Diameter
76/89/108/133/159mm
Matched Bandwidth
500/650/800/1000/1200/1400mm
Tube Material/Thickness
Special Pipe for Seamless Rollers/5mm
Transport Package
Standard Shipping Package
Trademark
PK
Origin
Henan, China (Mainland)
HS Code
8431390000
Production Capacity
50000 Sets/ Month
Product Description

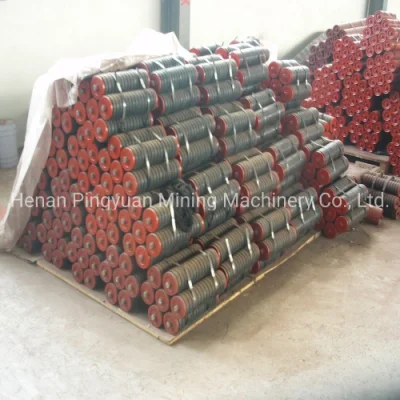

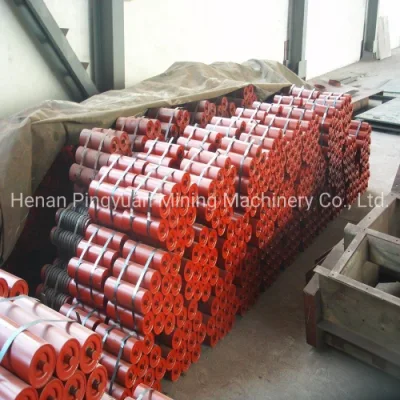

Conveyor belt conveyor idler roller
Introduction
Conveyor roller, important component of belt conveyor, is used to effectively support belt and bulk material of conveyor. Conveyor roller consists of shell, shaft, bearing, housing, seals and snapring. According to China national standards, diameter are Ф76,Ф89,Ф108,Ф133,Ф159 etc. PK Machinery conveyor roller is of unique structure, reasonable fitting and accurate assembly, resulting in high capacity and long service life.
Features
1.Adopt cold-drawn round steel with higher surface precision as the shaft material.
2.Good coaxiality and cylindricity.
3.Adopt special technology, can reduce the innerstress and welding heat deformation produced during assembling substantially.
4.Rotate resistance is small, weight is stable, service life can be more than 50000 hours
5.Non-contact type labyrinth seals, higher dust-proof and water-proof properties.
6.Roller with good dynamic and static balance performance.
7.Easy to maintain and replace.
8.Smooth surface, prevent damaging of conveyor belt.

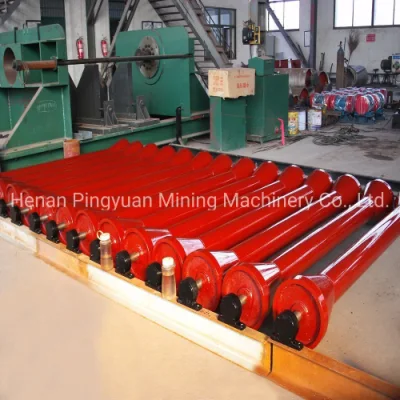

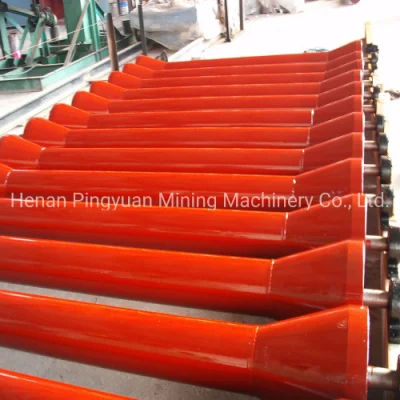

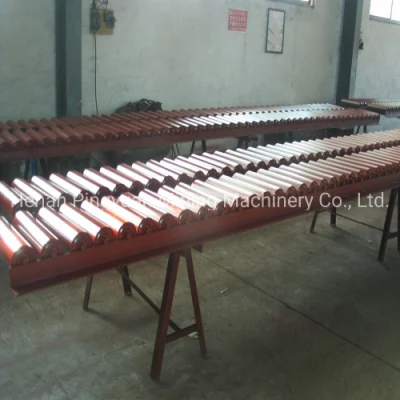

Production technology and process
Technical Parameter:
We mainly provide the following equipments :
Introduction
Conveyor roller, important component of belt conveyor, is used to effectively support belt and bulk material of conveyor. Conveyor roller consists of shell, shaft, bearing, housing, seals and snapring. According to China national standards, diameter are Ф76,Ф89,Ф108,Ф133,Ф159 etc. PK Machinery conveyor roller is of unique structure, reasonable fitting and accurate assembly, resulting in high capacity and long service life.
Features
1.Adopt cold-drawn round steel with higher surface precision as the shaft material.
2.Good coaxiality and cylindricity.
3.Adopt special technology, can reduce the innerstress and welding heat deformation produced during assembling substantially.
4.Rotate resistance is small, weight is stable, service life can be more than 50000 hours
5.Non-contact type labyrinth seals, higher dust-proof and water-proof properties.
6.Roller with good dynamic and static balance performance.
7.Easy to maintain and replace.
8.Smooth surface, prevent damaging of conveyor belt.
Production technology and process
Technical Parameter:
| Diameter | Lenth mm | Pipe Thickness | Shaft Diameter | Bearing Type | Seal Type | Weight(kg) |
| 63.5mm | 200 | 3mm | 15mm | 6203/4C | Labyrinth Type | 1.86 |
| 600 | 3mm | 15mm | 6203/4C | Labyrinth Type | 4.48 | |
| 76mm | 200 | 3mm | 20mm | 6204/4C | Labyrinth Type | 2.54 |
| 250 | 3mm | 20mm | 6204/4C | Labyrinth Type | 2.85 | |
| 600 | 3mm | 20mm | 6204/4C | Labyrinth Type | 5.82 | |
| 750 | 3mm | 20mm | 6204/4C | Labyrinth Type | 7.05 | |
| 89mm | 200 | 3.5mm | 20mm | 6204/C4 | Labyrinth Type | 2.8 |
| 250 | 3.5mm | 20mm | 6204/C4 | Labyrinth Type | 2.99 | |
| 315 | 3.5mm | 20mm | 6204/C4 | Labyrinth Type | 3.59 | |
| 600 | 3.5mm | 20mm | 6204/C4 | Labyrinth Type | 6.49 | |
| 750 | 3.5mm | 20mm | 6204/C4 | Labyrinth Type | 7.88 | |
| 950 | 3.5mm | 20mm | 6204/C4 | Labyrinth Type | 9.73 | |
| 108mm | 250 | 3.5mm | 25mm | 6205/C4 | Labyrinth Type | 4.3 |
| 315 | 3.5mm | 25mm | 6205/C4 | Labyrinth Type | 5.07 | |
| 380 | 3.5mm | 25mm | 6205/C4 | Labyrinth Type | 5.87 | |
| 465 | 3.5mm | 25mm | 6205/C4 | Labyrinth Type | 6.89 | |
| 530 | 3.5mm | 25mm | 6205/C4 | Labyrinth Type | 7.7 | |
| 600 | 3.5mm | 25mm | 6205/C4 | Labyrinth Type | 8.54 | |
| 750 | 3.5mm | 25mm | 6205/C4 | Labyrinth Type | 10.37 | |
| 950 | 3.5mm | 25mm | 6205/C4 | Labyrinth Type | 12.78 | |
| 1150 | 3.5mm | 25mm | 6205/C4 | Labyrinth Type | 15.2 | |
| 1400 | 3.5mm | 25mm | 6205/C4 | Labyrinth Type | 18.11 | |
| 1600 | 3.5mm | 25mm | 6205/C4 | Labyrinth Type | 20.7 | |
| 133mm | 250 | 4mm | 25mm | 6305/C4 | Labyrinth Type | 4.3 |
| 315 | 4mm | 25mm | 6305/C4 | Labyrinth Type | 7.12 | |
| 380 | 4mm | 25mm | 6305/C4 | Labyrinth Type | 8.23 | |
| 465 | 4mm | 25mm | 6305/C4 | Labyrinth Type | 9.62 | |
| 530 | 4mm | 25mm | 6305/C4 | Labyrinth Type | 10.7 | |
| 600 | 4mm | 25mm | 6305/C4 | Labyrinth Type | 11.86 | |
| 700 | 4mm | 25mm | 6305/C4 | Labyrinth Type | 13.53 | |
| 800 | 4mm | 25mm | 6305/C4 | Labyrinth Type | 15.17 | |
| 950 | 4mm | 25mm | 6305/C4 | Labyrinth Type | 17.66 | |
| 1150 | 4mm | 25mm | 6305/C4 | Labyrinth Type | 20.98 | |
| 1400 | 4mm | 25mm | 6305/C4 | Labyrinth Type | 25 | |
| 1600 | 4mm | 25mm | 6305/C4 | Labyrinth Type | 28.48 | |
| 159mm | 315 | 4.5mm | 30mm | 6306/C4 | Labyrinth Type | 9.38 |
| 380 | 4.5mm | 30mm | 6306/C4 | Labyrinth Type | 11.87 | |
| 465 | 4.5mm | 30mm | 6306/C4 | Labyrinth Type | 13.8 | |
| 530 | 4.5mm | 30mm | 6306/C4 | Labyrinth Type | 15.27 | |
| 600 | 4.5mm | 30mm | 6306/C4 | Labyrinth Type | 16.86 | |
| 700 | 4.5mm | 30mm | 6306/C4 | Labyrinth Type | 19.13 | |
| 800 | 4.5mm | 30mm | 6306/C4 | Labyrinth Type | 21.4 | |
| 1150 | 4.5mm | 30mm | 6306/C4 | Labyrinth Type | 29.34 | |
| 1400 | 4.5mm | 30mm | 6306/C4 | Labyrinth Type | 35.02 | |
| 1600 | 4.5mm | 30mm | 6306/C4 | Labyrinth Type | 39.56 |
