Product Description

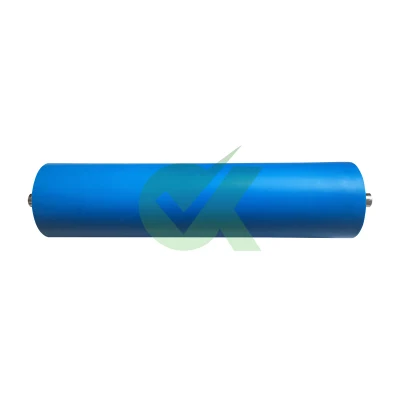

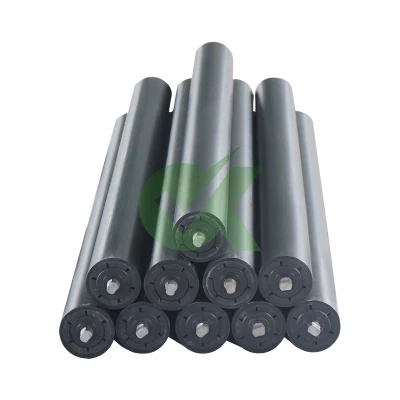

conveyor roller china manufacturer industrial mining PE pipe roller
The UHMW Conveyor Roller is made of virgin PE-UHMW material. plastic conveyor rollers are widely used in open dusty and highly corrosive environments, such as mines, power plants, steel plants, stone plants, cement plants and coking plants, coal preparation plants, salt plants, alkali plants, chemical fertilizer Transportation sites such as factories and docks.
Characteristics & Features: | |
High-Density Material | Suitable for High Humidity and High Pollution Environments |
Anti-Acidic / Anti-Alkaline | Power saving |
Anti-Static | cost saving |
Low Noise & Friction | Recyclable |
good Dynamic Balancing | wide temperature adaptability |
50%Lighter than Steel Rollers | Lightweight, easy installation |
Safe and poison-free and can contact with food and medicine |
Name | UHMW Conveyor Roller | Steel Idler | Ceramic Idler |
Chemical resistance (strong acid, strong shout) | √ | X | √ |
Toughness (subject to large external force) | Not Fragile | Not Fragile | Fragile |
Bearing tightness | Very Good | Commonly | Poor |
Surface adhesion | Not Easy | Easy | Easy |
Sliding friction coefficient (for belt) | Less 0.10-0.15 | Larger 0.68-0.80 | Larger |
Wear resistance | Good | Commonly | Good |
Wear on belt | Small | Easy Wear | Easy Wear |
Operation power consumption (1 for steel idler) | 0.85 | 1 | 1.05 |
Noise and vibration | Lower | High | Higher |
Weight | 4 | 10 | 15 |
Installation and maintenance | Easy installation Maintenance free | Heavy installation & maintenance work | Heavy installation &maintcnance work |
Water absorption rate | Less | Less | More |
Impact resistance | √ | √ | X |
Price | 2.5 | 1 | 3.5 |
Service life(years) | 5-8 | 1-2 | 1-2 |
outer diameter D1(mm) | Shaft diameter D2(mm) | Customized | Bearing Type (HRB/LYC/SKF) | Bearing size |
Dia76 | Dia20 | Length customization: L1, L2, L3, L4, L5 Shaft head customization: milling, punching, threading | 6204 | 20*47*14 |
Dia89 | Dia20 | 6204 | 20*47*14 | |
Dia102 | Dia20 | 6204 | 20*47*14 | |
Dia25 | 6205 | 25*52*15 | ||
Dia108 | Dia20 | 6304 | 20*52*15 | |
Dia25 | 6205 | 25*52*15 | ||
Dia114 | Dia25 | 6205 | 25*52*15 | |
Dia127 | Dia25 | 6305 | 25*62*17 | |
Dia30 | 6306 | 30*72*19 | ||
Dia133 | Dia25 | 6305 | 25*62*17 | |
Dia140 | Dia25 | 6305 | 25*62*17 | |
Dia152 | Dia35 | 6307 | 35*80*21 | |
Dia159 | Dia35 | 6307 | 35*80*21 |
UHMW conveyor rollers are widely used in cement, coal, gravel, fertilizers, ports, chemicals, quarrying, zinc mining, grain. General industry Coal Mining, Cement, Concrete, Limestone, and Quarry.
Chemical Industry Fertilizer, Salt, Sugar, Pulp Paper, Acid, and Alkaline.Other Material Handling Equipment system.
Our HDPE conveyor roller has physical and chemical properties, such as excellent
wear resistance, low friction coefficient, and corrosion resistance.
UHMWPE conveyor roller has self-lubrication and it is not easy to hard to die even in bad working conditions. Widely used in original transportation places where the dust is bigger and the environment has high corrosion, such as food, medicine, cement, coal, concrete, gravel, grain, fertilizers, chemicals, acid and alkaline and other material handling equipment system.
Our company has its own laboratory, we will HDPE/UHMWPE pipe raw materials and finished rollers for testing, and prohibit the outflow of unqualified products.
We provide you with a 24-hours service on the polymer conveyor rollers, we have a sales team of 10 people and a production team of 80 workers to solve the problem with HDPE conveyor roller.
Packing Details: Standard wooden package box or as per your requirements.
Delivery Details: 15-25 days according to your early payment.
A1:φ89,φ102,φ108,φ114,φ127,φ133,φ140,φ152,φ159, The length could be customized. So please do not worry about the size.
Q2: What color of plastic conveyor roller you can produce?
A2: Our common colors are black and blue. we can produce other colors according to your requirement too.
Q3:Have you exported to Europe?
A3: Yes, we have. Not only Europe but also the other continents are using our conveyor roller.
Q4:Do you make a customized logo on the HDPE/UHMWPE conveyor rollers ?
A4: Yes, we do. Just send your artwork for the logo. We will print the logo on the seals as your request.
Q5: Could you provide a product customization service?
A5: Yes, and it's better to get your drawing or idea of it.
Q6: Is the sample available before mass production?
A6: Yes, a small block sample is free but the freight is by your side; If the sample size is the same as the mass production order, the customer needs to pay the sample cost and freight and we will return the cost after placing the order here.
Q7: Where is your factory located?
A7: Our company is located in Anyang City, Henan Province.
Q8:How does your company guarantee the quality of the product?
A8:Firstly, we will send the sample to confirm the quality;
Secondly, our QC department will check the quality during and after the mass production;
Thirdly, our company also welcome customer and the third party's inspection.
