Product Description

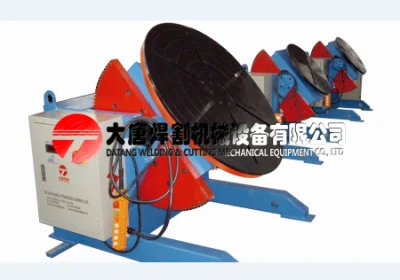

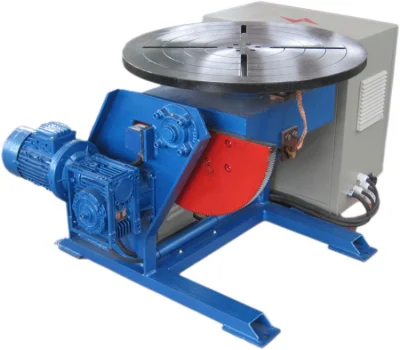

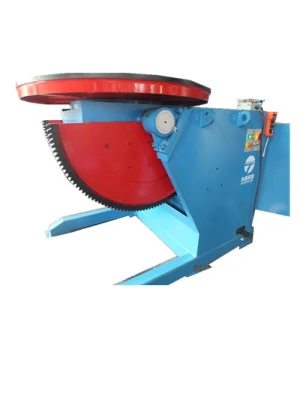

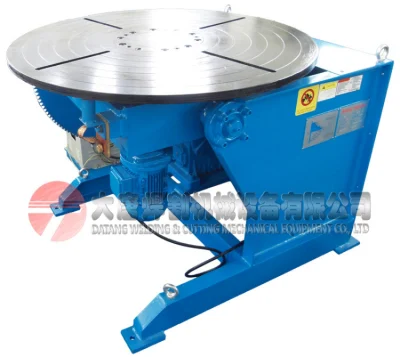

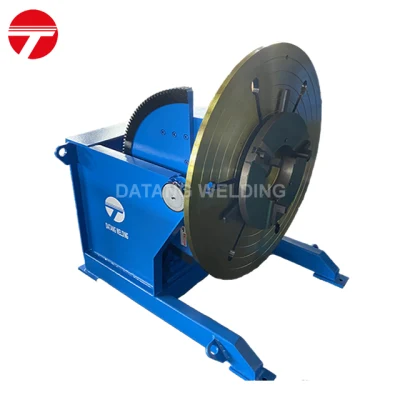

Welding Positioner
Welding positioner is mainly composed of worktable revolving unit and tilting unit. Work-piece fixed on the worktable can be placed to ideal position by elevating the worktable. Speed of worktable revolving is frequency conversion stepless to achieve satisfactory welding speed.
For the reason of eccentric-distance and gravity-center-distance. Slightly higher model should be selected for longer work-piece and work-pieces which gravity-center has greater offset. If standard welding positioner can not meet requirement for all work-pieces.,please be sure to offer us shape, weight and machining technology of work-piece, so we can design suitable proposal for your choice.
Welding positioner is mainly composed of worktable revolving unit and tilting unit. Work-piece fixed on the worktable can be placed to ideal position by elevating the worktable. Speed of worktable revolving is frequency conversion stepless to achieve satisfactory welding speed.
For the reason of eccentric-distance and gravity-center-distance. Slightly higher model should be selected for longer work-piece and work-pieces which gravity-center has greater offset. If standard welding positioner can not meet requirement for all work-pieces.,please be sure to offer us shape, weight and machining technology of work-piece, so we can design suitable proposal for your choice.
| Technical Parameter | Model | |||||||||
| HB05 | HB1 | HB3 | HB6 | HB12 | HB30 | HB50 | HB100 | HB150 | HB200 | |
| Rated loading (Kg) | 50 | 100 | 300 | 600 | 1200 | 3000 | 5000 | 10000 | 15000 | 20000 |
| Max eccenteric Distance(mm) | / | / | 100 | 200 | 200 | 250 | 250 | |||
| Max distance of Gravity center (mm) | / | / | 150 | 200 | 300 | 400 | 500 | 600 | ||
| Worktable size (mm) | Φ320 | Φ360 | Φ600 | Φ1000 | Φ1200 | Φ1400 | Φ1500 | Φ1800 | Φ2000 | Φ2200 |
| Tilting angle (°) | 0°~+90° | 0°~+120° | ||||||||
| Rotating speed (rpm) | 15 | 5 | 0.1~1 | 0.05~0.5 | 0.03~0.3 | |||||
| Rotating Power(KW) | 0.12 | 0.12 | 0.18 | 0.75 | 0.75 | 1.5 | 2.2 | 3 | 4 | 5.5 |
| Tilting speed (rpm) | 0.8 | 0.5 | 0.3 | 0.14 | ||||||
| Tilting Power(kW): | 0.75 | 1.1 | 2.2 | 3 | 4 | 5.5 | 7.5 | |||
| Speed adjusting way | Rotating speed VFD | |||||||||
| Tilting speed constant | ||||||||||
