Basic Info.
Model NO.
HB01
Welding Turning Rolls Type
Channeling
Welding Tilter Type
Flexible Combination
Condition
New
Load
10kg
Table Diameter
180mm
Rotating Speed
1-8rpm
Transport Package
Standard
Specification
Standard
Trademark
DATANG
Origin
China
HS Code
84688000
Production Capacity
300 Sets Per Month
Product Description

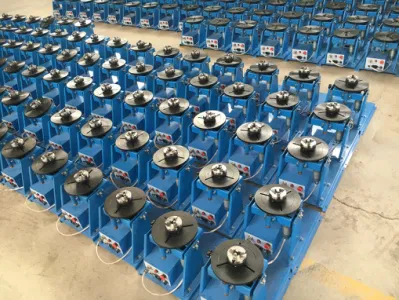

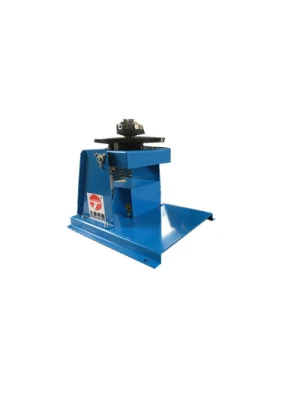

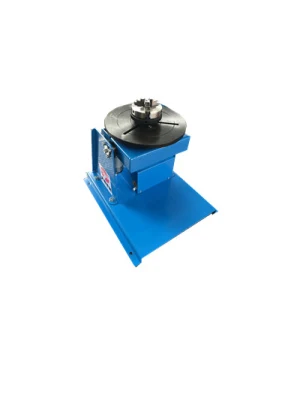

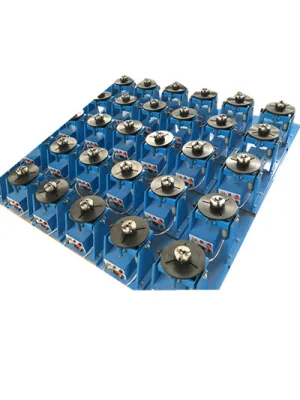

HB-01 Welding Positioner
Welding positioner consists of working table rotation unit and tilting unit. By the working table elevating, the workpiece can be positioned and achieve the welding position by the worktable tilting and rotating. The working talbe rotating is controlled by variable frequency and stepless, which could get the satisfied welding speed.
Main technical parameter
| Technical Parameter | Model | ||
| HB01 | HB05 | HB1 | |
| Rated loading | 10Kg | 50Kg | 100Kg |
| Worktable size | Φ180mm | Φ320mm | Φ360mm |
| Tilting angle | 0°~+90° | ||
| Rotating speed | 1~8rmp | 1~15rmp | 0.2~5rpm |
| Rotating Powe | 15W | 100W | 120W |
| Speed adjusting way | DC | ||
