Product Description

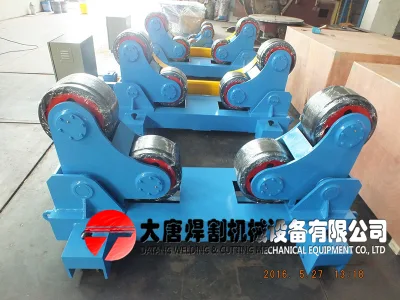

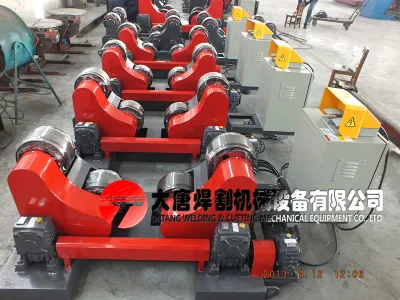

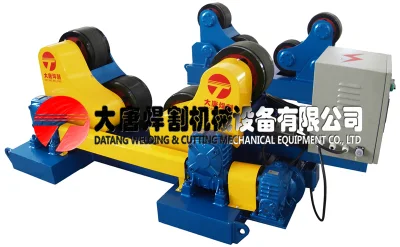

Welding Turning rolls
Our designed and manufactured DZG type Welding Tank Rotator absorbs the excellence from the same products from the domestic and forign market manufacturing, which is made according to the pressure vessel manufacturer's requirement. This product is applied in the manual welding and automatic welding for metallic tank, it is the necessary for the pressure vessel manufacturing. It has the good character as advanced technology, reliable quality, easy operation and so on.
Please note:
1. Standart models from 5T-100T, others please confirm with us.
2. One set rotator include a drive roller and an idler roller, also customer can choose 1 drive idler and so on.
3. Voltage standard is 380V-3PH-50HZ, but we can make 110-575V as per your requirement
4. This machine is controled by remote-control box, optional foot switch
5. Other more special requiements pease contact me
Pictures
Protecting cover and Hook( this is special make, need inform us if required)
| Model Parameter | DZG-5 | DZG-10 | DZG-20 | DZG-40 | DZG-60 | DZG-80 | DZG-100 | DZG-650 |
| Unit Loading (T) | 5 | 10 | 20 | 40 | 60 | 80 | 100 | 650 |
| Min suitable size of job (mm) | φ250 | φ320 | φ500 | φ600 | φ750 | φ850 | φ1000 | φ1800 |
| Max suitable size of job(mm) | φ2300 | φ2800 | φ3500 | φ4200 | φ4800 | φ5000 | φ5500 | Φ8000 |
| Rubber wheel diameter (mm) | φ250 | φ300 | φ350 | φ400 | φ450 | φ500 | φ500 | |
| Rubber wheel thickness (mm) | 100 | 120 | 120 | 120 | 120 | 120 | 120 | |
| Metallic wheel diameter (mm) | φ240 | φ290 | φ340 | φ390 | φ440 | φ490 | φ490 | Φ800 |
| Metallic wheel thickness (mm) | 20 | 25 | 30 | 40 | 50 | 60 | 80 | 300 |
| Linear speed (m/h) | 6-60 | |||||||
| Motor power (kw) | 0.75 | 1.1 | 1.5 | 3 | 4 | 4 | 5.5 | 7.5×2 |
| Speed adjusting way | VFD | |||||||
