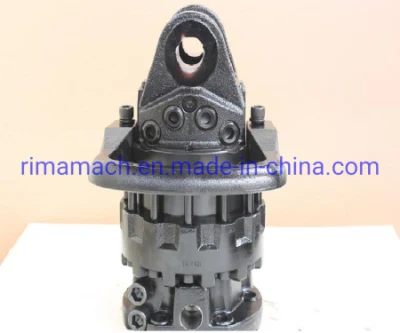

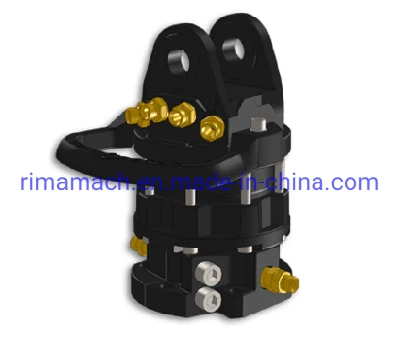

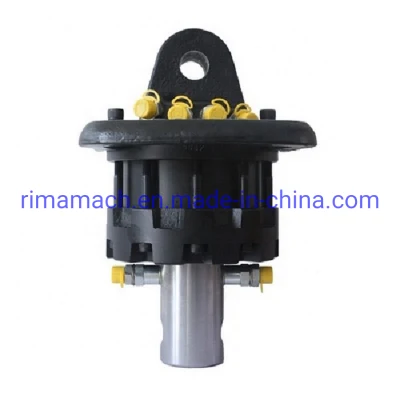

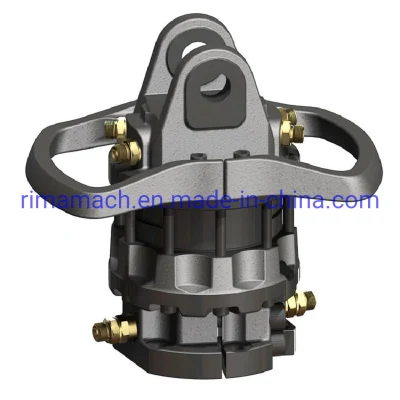

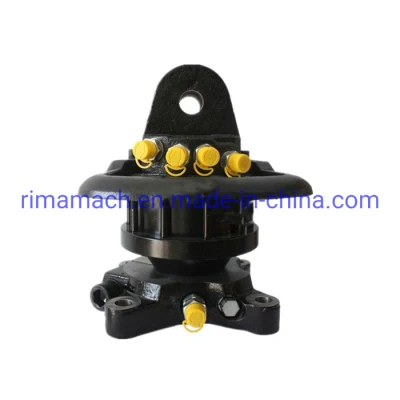

RIMA HYDRAULIC ROTATOR is a hydraulically powered gear which turns 360 degrees in each direction and is used for turning, positioning and powering of the tool (e.g. grapple) attached to crane.
| Model | Max axial load statick (KN) | Max axial load dynamic (KN) | Torque 25MPa (Nm) | Tated Displacement (ML/R) | Weight (KG) |
| GR10 | 10 | 5 | 450 | 193 | 10 |
| GR30A | 30 | 15 | 900 | 330 | 16 |
| GR30B | 30 | 15 | 900 | 330 | 16 |
| GR30F | 30 | 15 | 900 | 330 | 22 |
| GR40 | 40 | 20 | 1100 | 420 | 23 |
| GR40F | 40 | 20 | 1100 | 420 | 28 |
| GR50 | 50 | 25 | 1400 | 465 | 28 |
| GR50F | 55 | 25 | 1400 | 465 | 33 |
| GR60 | 60 | 38 | 1800 | 670 | 45 |
| GR60-2 | 60 | 30 | 1800 | 670 | 47 |
| GR60F | 60 | 30 | 1800 | 678 | 48 |
| GR60F-2 | 60 | 30 | 1800 | 678 | 50 |
| GR100FD | +100/-80 | +50/-40 | 2700 | 871 | 64 |
| GR100FD-2 | +100/-80 | +50/-40 | 2700 | 871 | 67 |
| GR120FD | +120/-90 | +60/-45 | 2900 | 949 | 76 |
| GR120FD-2 | +120/-90 | +60/-45 | 2900 | 949 | 79 |
RIMA is established in 2009,located in Xibeiyu Industry Zone,Laizhou,Shandong,China.
its strong technique power,complete set of manufacture equipments and experimental devices,advanced CAD R&D means, the company has complete production capaicty from cutting,profiling,welding,maching,paiting to packing.
RIMA has aleady manufactured a full range of high quality implements for the small to medium-sized tractor owners across the world,Such as Front End loader, Backhoe, Mower, rotary tiller, Wood Chipper, Log Splitter, Post Hole Diggers. more than 50 serials and more than 150 models of various implements.
YANTAI RIMA MACHINERY CO.,LTD
Add: Xibeiyu Industry Zone,Laizhou,Shandong,China
Website: rimamach.en.made-in-china.com rimamach.en.made-in-china.com
Ph/ :+86 17861042989
