Basic Info.
Model NO.
UT1100-90UB
Tread
1820mm
Grade
Light Duty
Types of Suspension Systems
Cross Arm Type
Shape
Flatbed
Axle Number
0
Tire Number
0
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
No ABS Anti-lock Braking System
Material
Iron
Condition
New
OEM
Yes
Transport Package
in Pallet
Trademark
UT
Origin
China
HS Code
87169000
Production Capacity
5000 Pieces/Month
Product Description

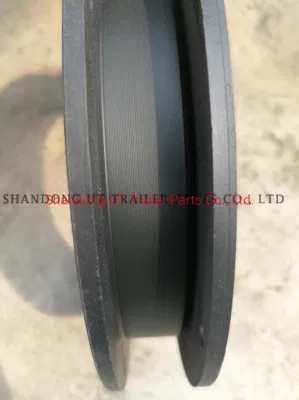

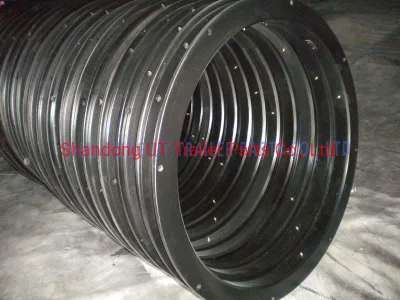

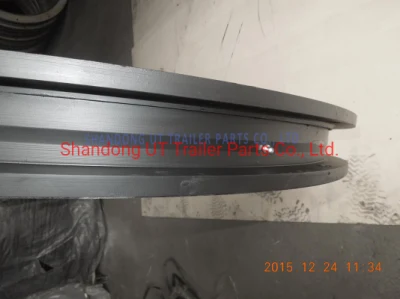

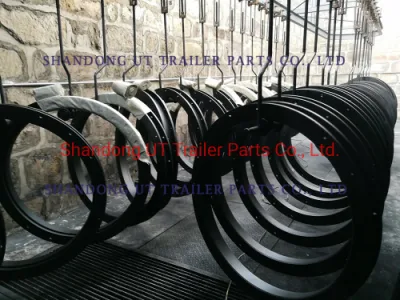

Turntable for semi-trailers, full trailers and tractors
Brand: UT
Section Type: U, UA, UB, UC, ZA, ZB
Material: Nodular Cast Iron
Capacity:0.8t~30T
Size: 400mm~1300mm
Unit Weight: 28kg~125kg
Color: Black, Red, Blue or as your requirements
Surface treatment: Antirust Painting or as your requirements
Design: Common type or Special design according to the requirement, we have developed about 500 series. We can design and produce fully according with your drawing.
Quality Assurance: ISO9001:2008
Main Market: South-east Asia, Europe, South America, Africa, Australia, Middle East, Russia etc
Coule be same design as JOST , BPW, RIMA
Model Number:UT1000-90UB
| 1. Type: Full Trailer |
| 2. Material:QT5007 Iron |
| 3. Diameter: 1000mm |
| 5. Max Payload: about 10T |
| 6. Weight: about 80 kg |
| 7. Height:92mm |
| 8. Function:Turning Rotating |
| 9. Workmanship:Casting |
| 10. Technology:: Original from Germany |
| 11. Package: About 240 Pieces in 1x20GP Container; By Wooden / Steel Pallets. |
| FAQ |
| 1. MOQ:10 pieces |
| 2. Lead time: About 15 - 30 Working Days, specific lead time is according with the quantity |
| 3. Payment terms: T/T or L/C at sight |
| 4. Production ability: 2000 pieces per month |
Now we make:A. Mechanical suspension: Casting or welded type. American style or Germany style. Design can be same as BPW, SAF,FUWA, YTE, ROR, MERITOR
B. Cantilever suspension (bogie), 24, 28, 32 tons capacity. Design can be same as BPW, YORK
C. Axle: Stud hub or spider axle,12 to 20 tons payload, can be same design as BPW
D. Axle Tube: One piece type, axle if fabricated from one steel tube without welding
E. Air suspension system, most parts imported from Germany.
F. Landing gear: Single side operation or twin side operation landing gears for semi-trailers. Can be same design as JOST, HOLLAND, KIC
G. King pin:2", 3.5", welded or bolted in type.
H. Fifth wheel.2" or 3.5", forged or casting type. Can be same design as JOST, HOLLAND
I. Leaf spring: width 75mm, 90mm, 100mm or 120mm.
J. Turntable for semi-trailers and fully trailers.
K. Draw bar eye for dolly connection or full trailer
L. Trailer coupling for dolly connection or full trailer
M. Full series of Wheel & rim:
Tube disc wheel 5.5-15, 5.5-16,6.5-20,7.0-20,7.5-20,8.0-20,8.5-20, 8.5-24
Tubeless disc wheel 6.0-17.5, 6.75-17.5, 7.5-19.5, 7.5-22.5,8.25-22.5,9.0-22.5,11.75-22.5, 13.00-22.5, 14.00-22.5, 8.25-24.5
Demountable rim 6.75 x 17.5, 7.5-22.5, 8.25-22.5
N. Brake Chamber for semi-trailer, full series. T20, T24, T30 single brake chamber. T24/30, T30/30 double brake chamber.
O. Twist lock, lifting type or JOST screw type
