Basic Info.
Model NO.
GR
Transport Package
Wooden Box
Trademark
RIMA
Origin
China
Production Capacity
100PCS/Month
Product Description

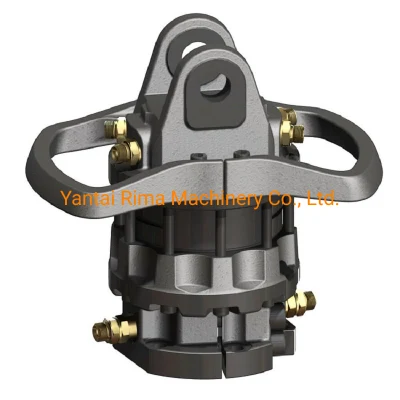

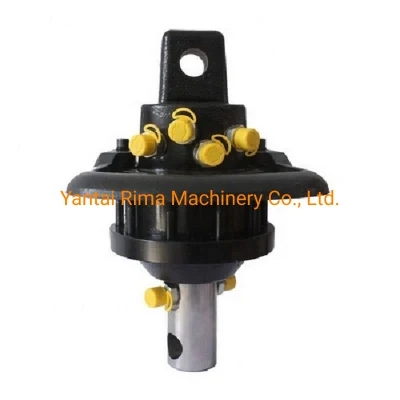

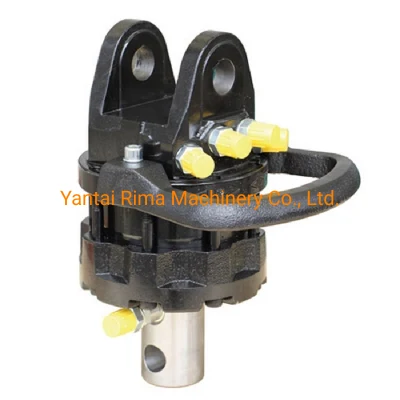

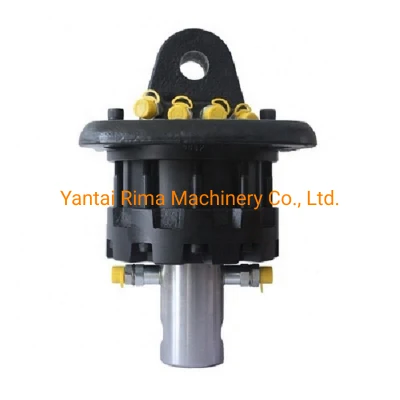

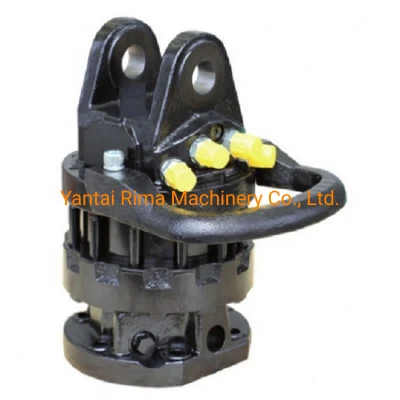

Hydraulic Rotator / Rotator for Grapple
| ITEM | ROTATION | MAX AXIAL LOAD STATIC,KN | MAX AXIAL LOAD DYNAMIC,KN | TORQUE (25MPa). Nm | RATED DISPLACEMENT ML/R | WEIGHT KG |
| GR10 | Unlimited | 10 | 5 | 450 | 193 | 10 |
| GR30A | Unlimited | 30 | 15 | 900 | 330 | 16 |
| GR30B | Unlimited | 30 | 15 | 900 | 330 | 16 |
| GR30F | Unlimited | 30 | 15 | 900 | 330 | 22 |
| GR40 | Unlimited | 40 | 20 | 1100 | 420 | 23 |
| GR40F | Unlimited | 40 | 20 | 1100 | 420 | 28 |
| GR50 | Unlimited | 50 | 25 | 1400 | 465 | 28 |
| GR50F | Unlimited | 55 | 25 | 1400 | 465 | 33 |
| GR60 | Unlimited | 60 | 30 | 1800 | 670 | 45 |
| GR60-2 | Unlimited | 60 | 30 | 1800 | 670 | 47 |
| GR60F | Unlimited | 60 | 30 | 1800 | 678 | 48 |
| GR60F-2 | Unlimited | 60 | 30 | 1800 | 678 | 50 |
| GR100FD | Unlimited | +100/-80 | +50/-40 | 2700 | 871 | 64 |
| GR100FD-2 | Unlimited | +100/-80 | +50/-40 | 2700 | 871 | 67 |
| GR120FD | Unlimited | +120/-90 | +60/-45 | 2900 | 949 | 76 |
| GR120FD-2 | Unlimited | +120/-90 | +60/-45 | 2900 | 949 | 79 |
