Basic Info.
Model NO.
HBT
Condition
New
Transport Package
Wooden Case
Trademark
datang
Origin
Jiangsu, China
HS Code
84688000
Production Capacity
500 Sets/Month
Product Description

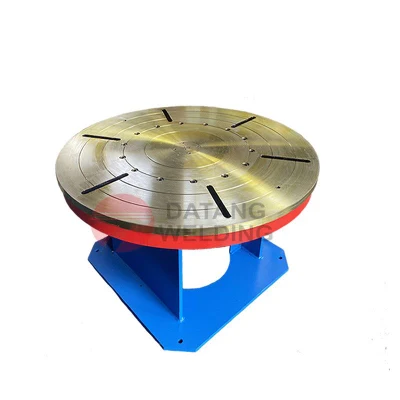

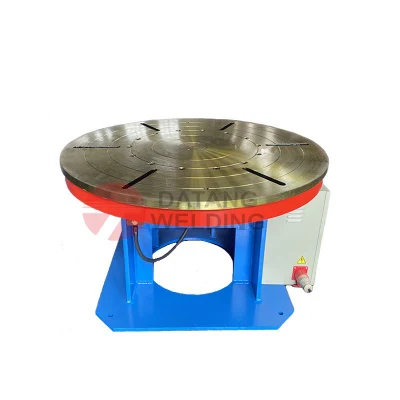

Welding Table
This welding equipment is specialized for the requirement of welding technology. It has rotate motor of VFD, which makes the workpiece welded at the suitable position and rotating speed. This equipment can work together with types of welder. It is widely using in pressure vessel, metallurgy, electric power and mechanism etc.
This welding equipment is specialized for the requirement of welding technology. It has rotate motor of VFD, which makes the workpiece welded at the suitable position and rotating speed. This equipment can work together with types of welder. It is widely using in pressure vessel, metallurgy, electric power and mechanism etc.
| Technical Parameter | Type | |||||||
| HBT3 | HBT5 | HBT10 | HBT20 | HBT30 | HBT50 | HBT100 | HBT200 | |
| Max load capacity(Kg) | 300 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 |
| Worktable size (mm) | Φ600 | Φ800 | Φ1000 | Φ1200 | φ1400 | φ1500 | Φ1800 | Φ2000 |
| Max eccenteric Distance(mm) | 100 | 200 | ||||||
| Rotating speed (rpm) | 0.2~2 | 0.1~1 | 0.05~0.5 | 0.02~0.2 | ||||
| Rotating Power(KW) | 0.18 | 0.37 | 0.75 | 0.75 | 0.75 | 1.1 | 2.2 | 3 |
