Basic Info.
Product Description
Quick Details:
Type: Welding rotator/Welding turning rolls/Pipe welding rotator
Brand: MISA
Condition: 100% brand new
Model number: HGK
Place of origin: Wuxi China(Mainland)
Usage: Welding
Voltage: 110V-600V
Color: Yellow/Blue/Grey
Dimensions and weight: According to the model

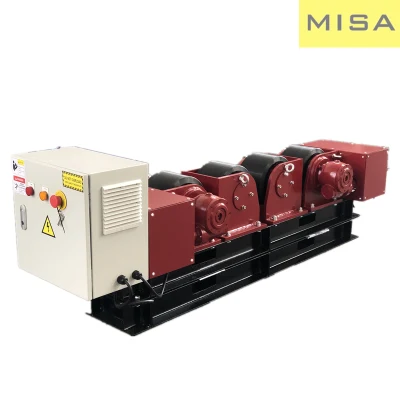

Welding Rotator Product Photo:
Welding Rotator Product Parameter:
| Type | Max loading (kg) | Vessel diameter(mm) | Dia. and width of the wheel(mm) | Roller linear velocity(m/h) 6-60 | Power of motor(kw) | |
| Rubber rollers | Metal rollers | |||||
| HGKS-5 | 5,000 | Φ250-2300 | Φ250×100 | 2×Φ240×20 | 2X0.37 | |
| HGKS-10 | 10,000 | Φ320-2800 | Φ300×120 | 2×Φ290×25 | 2X0.55 | |
| HGKS-20 | 20,000 | Φ500-3500 | Φ350×120 | 2×Φ340×30 | 2X0.75 | |
| HGKS-40 | 40,000 | Φ600-4200 | Φ400×120 | 2×Φ390×40 | 2X1.5 | |
| HGKS-60 | 60,000 | Φ750-4800 | Φ450×120 | 2×Φ440×50 | 2X2.2 | |
| HGKS-80 | 80,000 | Φ850-5000 | Φ500×120 | 2×Φ490×60 | 2X3 | |
| HGKS-100 | 100,000 | Φ1000-5500 | Φ500×120 | 2×Φ490×80 | 2X3 | |
| HGK-S150 | 150,000 | Φ1000-6000 | / | Φ620×220 | 2X4 | |
| HGKS-250 | 250,000 | Φ1800-7500 | / | Φ660×260 | 2X5.5 | |
| HGKS-500 | 500,000 | Φ1800-8000 | / | Φ750×400 | 2X7.5 | |

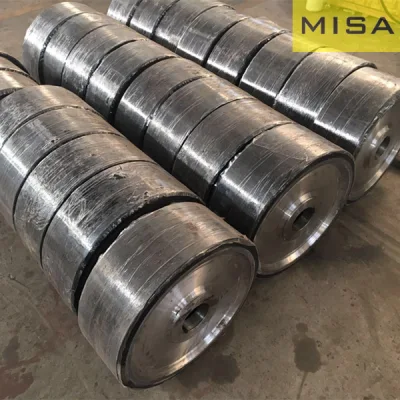

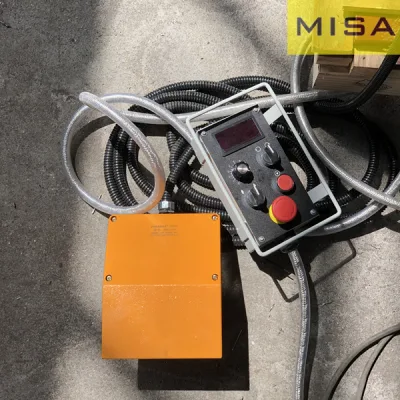

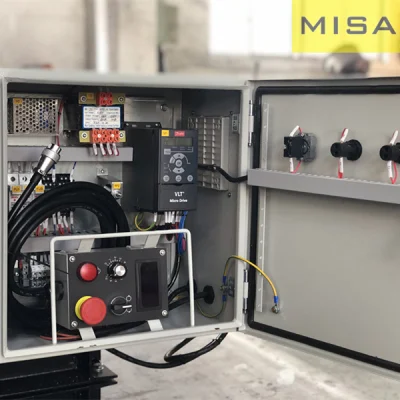

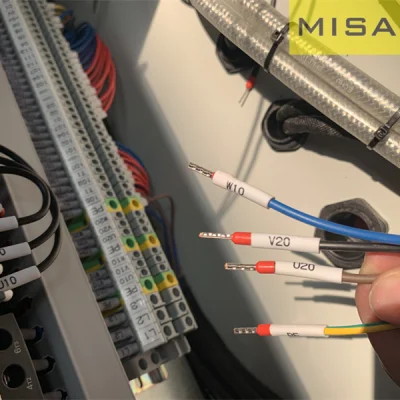

Welding Rotator Detail Photo:
Kindly Noted:
1. Model from 5T-100T, others please let us know.
2. One set of welding turning rolls include one drive & one idler, also customer can choose other combinations.
3. Voltage standard is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
4. Control panel is wired control ,or you can choose wireless control.
5. If need more special requirements ,we'll study with our engineer.
6. The revolve adopt A.C. Inverter motor driving.
Competitive Advantage:
1. All the bolt using 12.9 grade Bolt , not using 8.4 grade. Making the machine more stronger.
2. 20 % overweight design , could making the rotator focus more.
3. Double motors and reducers , and if the workpiece stress is different ,could ensure the rotator working properly, and longer service life.
4. Double row wheels ,not only making the wheels stable, but also artifacts to increase friction.
5. All the parts using well-known brands in China or other countries . Quality is more reliable .
6. Using double row bearings.
Packaging Details:
1. Main frame naked;
2. Control box wrapped by plastic film;
3. Small parts adopts plywood case.
Delivery Detail:
30 days after receive the down payment
