Basic Info.
Model NO.
HGY29 HGY33
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
180m²/h
Feeding Height
1370mm
Vibrating Amplitude
2.0mm
Certification
ISO9001: 2000, CE
Condition
New
Color
as Your Option
Motor
15 Kw
Brand
Saintyol Dawin Machinery
Series
29m 33m
Key Word
29m 33m Hydraulic Jack-up Placing Boom
Control
Proportional Remote / Wire Control
Column
22.7m
Boom Arms
Detachable
Valve
Proportional
Placing Model
3 Sections / R Folding
Transport Package
Standard Exporting Package
Specification
CE ISO
Trademark
Saintyol DAWIN
Origin
Qingdao Shandong
HS Code
84134000
Production Capacity
2000 Sets/Year
Product Description

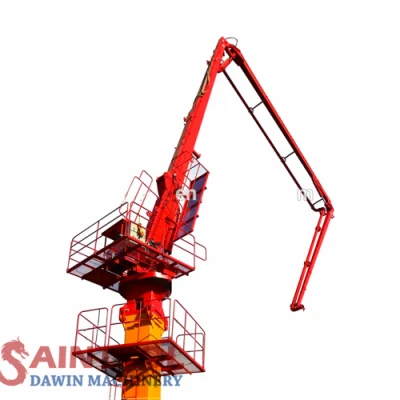

Quality high grade steel concrete placing boom with self jack-up hydraulic system
Concrete placing boom is a new product developed for enlarging the range of concrete pouring and improving the mechanization level of pumping construction.
Being corollary equipment of concrete pump, it increases the range of concrete pumping by connecting with concrete pump;
Also, in effectively solving the hard problem of material distribution in wall pouring, it plays an important role in increasing construction efficiency and reducing labor intensity.
This kind of concrete placing boom is reasonably designed, with stable and reliable structure, and the whole machine can be easily operated and flexibly turned due to its all direction and boom-type distributing structure, featuring character of high efficiency and energy-saving, as well as being economical and practical, etc.
Concrete placing boom is a new product developed for enlarging the range of concrete pouring and improving the mechanization level of pumping construction.
Being corollary equipment of concrete pump, it increases the range of concrete pumping by connecting with concrete pump;
Also, in effectively solving the hard problem of material distribution in wall pouring, it plays an important role in increasing construction efficiency and reducing labor intensity.
This kind of concrete placing boom is reasonably designed, with stable and reliable structure, and the whole machine can be easily operated and flexibly turned due to its all direction and boom-type distributing structure, featuring character of high efficiency and energy-saving, as well as being economical and practical, etc.
Charactics
Modular design, mechanical and electrical integration control, folding boom, tube column, floor frame and shaft frame. Integration of advanced features and product diversification, to achieve a higher product portfolio, improve the applicability of the product.
Imported hydraulic and electrical components, adopt quality fast coupling for hydraulic pipelines, which is converted quickly, it can effectively solve the problem of oil leakage in the process of assembling and dismantling, and avoid the pollution of the environment. Safety and reliability
sections R type hydraulic boom, large circular arc, novel and beautiful appearance, compact structure, and the lightweight design of the boom, which reduced the weight of the whole machine..
Easy to transport and install.
Equipped with self-climbing frames which are driven by hydraulic and which climb up automatically from the present floor to the desired floor along the holes initially prepared in elevator well, the placing booms rise with the rising floor, saving time and labor.
Features
A.Boom
The arced boom structure is optimized by applying CPU design. The boom adopted high-strength steel plate for production with scientific process. It features beautiful appearance, superior rigidity and intensity, ensuring excellent and reliable quality.
B. Hydraulic system
C series products adopted Germany Rexroth solenoid directional control valve and balance valve
with secondary overflow. It has effectively avoided the potential damages of boom
which might be caused by over speed movement when the boom drops down, and sudden
increase of oil cylinder's pressure under external forces, thus the reliability of the boom
has been increased.
C.Inner Hydraulic Oil Tank
Inner hydraulic oil tank renders a compact structure and free swivel. It gives big
convenient for installation, dismounting and maintenance, which ensure longer service
life and excellent performance.
D.Climbing Facility
As a rectangular frame structure, the climbing facility is flexible, reliable and convenient
for dismounting.
E.Slewing Mechanism and Reducer
Slewing reducer adopted products made by the world famous brand of Italy Comer, with
a great torsion. Being accompanied with the integrated slewing balance valve made by
Germany Hawei, it achieves smooth operation and reliable and stable performance.
F.Wireless Remote Controller
C series products adopt industry-exclusive analogue wireless remote controller made by Taiwan TELECRANE, which is easy and convenient to operate, highly resistant to
disturbance and reliable in performance.Each series are accompanied with wired remote controller for use in necessity.
G.Electric Control System
The electric control system adopted world famous brand of electric components, such
as Japanese Omron and French . The multi automatic protection is set up in
the control program, so as to avoid misoperation and ensure the system's reliability.
H.Column
The column is made of high-strength steel plate in square shape, with nice appearance,
rigidness and intensity, as well as high reliability.
Option:
u Inner-climbing frames: Floor frames or Wall frames(Shaft frames)
u Column: 2m-10m.
u Mode of slewing: Gear slewing or rack & Bearing of stepless slewing.
u Voltage: 380V/50Hz or 440V/60Hz
u Radio remote Control: Tele Crane HBC or AUTEC
29m Tower Jack-up Concrete Placing boom Specifications:
| Model | Units | HGY29C | ||
| Performance | Max.radius of placing boom | m | 28.9 | |
| Freestanding height (to the joint between the end of the boom and swivel table) | m | 22.7 | ||
| Boom articulation | ° | 400 | ||
| Slewing brake | / | always close | ||
| Working temperature | ºC | 0ºC~60ºC | ||
| Total weight | kg | 19100 | ||
| Counter weight | kg | Have no | ||
| Power | / | 380V/50HZ | ||
| Motor | Model | / | Y2-160M-4 | |
| Power | kW | 11 | ||
| Hydraulic system | Pressure | MPa | 30 | |
| Flux | l/min | 18 | ||
| Hydraulic oil | Circumstance temperature 35ºC-50ºC | / | L-HM 68 | |
| Circumstance temperature 5ºC-35ºC | / | L-HM 46 | ||
| Circumstance temperature -15ºC-5ºC | / | L-HM 32 | ||
| Control mode | / | Short-haul Control /radio remote control | ||
| Pipeline cleaning | / | Wet cleaning/Dry cleaning | ||
| Structure of tower body | / | Tubular column | ||
| Section of tower body | m×m | 0.75×0.75 | ||
| Boom | Shape | / | Three hydraulic foldable arms | |
| Inner diameter of pipeline | mm | DN125 | ||
| End hose | ″×mm | 5″×3000 | ||
| 1st section | Length | m | 11.5 | |
| Articulation | ° | 0°~82.5° | ||
| 2nd section | Length | m | 9.3 | |
| Articulation | ° | 0°~180° | ||
| 3rd section | Length | m | 8.1 | |
| Articulation | ° | 0°~180° | ||
| Climbing | Climbing mode | / | By hydraulic cylinder climbing | |
| Interval of climbing | m | 0.52 | ||
| Floor frame | / | Hole prepared in floor | ||
| Shaft frame | m | Hole prepared in floor 2.0~2.7 | ||
| Min.Interval of climbing frame | Climbing | m | 3.0 | |
| Placing concrete | m | 6.0 | ||
| Rest | m | 6.0 | ||
33m Tower Jack-up Concrete Placing boom Specifications:
| Model | Units | HGY33E | ||
| Performance | Max.radius of placing boom | m | 33 | |
| Freestanding height (to the joint between the end of the boom and swivel table) | m | 22.7 | ||
| Boom articulation | ° | 400 | ||
| Slewing brake | / | always close | ||
| Working temperature | ºC | 0ºC~60ºC | ||
| Total weight | kg | 21200 | ||
| Counter weight | kg | Have no | ||
| Power | / | 380V/50HZ | ||
| Motor | Model | / | Y2-160L-4 | |
| Power | kW | 15 | ||
| Hydraulic system | Pressure | MPa | 30 | |
| Flux | l/min | 18 | ||
| Hydraulic oil | Circumstance temperature 35ºC-50ºC | / | L-HM 68 | |
| Circumstance temperature 5ºC-35ºC | / | L-HM 46 | ||
| Circumstance temperature -15ºC-5ºC | / | L-HM 32 | ||
| Control mode | / | Short-haul Control /radio remote control | ||
| Pipeline cleaning | / | Wet cleaning/Dry cleaning | ||
| Structure of tower body | / | Tubular column | ||
| Section of tower body | m×m | 0.75×0.75 | ||
| Boom | Shape | / | Three hydraulic foldable arms | |
| Inner diameter of pipeline | mm | DN125 | ||
| End hose | ″×mm | 5″×3000 | ||
| 1st section | Length | m | 12.38 | |
| Articulation | ° | 0°~82.5° | ||
| 2nd section | Length | m | 10.93 | |
| Articulation | ° | 0°~180° | ||
| 3rd section | Length | m | 9.69 | |
| Articulation | ° | 0°~180° | ||
| Climbing | Climbing mode | / | By hydraulic cylinder climbing | |
| Interval of climbing | m | 0.52 | ||
| Floor frame | / | Hole prepared in floor | ||
| Shaft frame | m | Hole prepared in floor 2.0~2.7 | ||
| Min.Interval of climbing frame | Climbing | m | 3.0 | |
| Placing concrete | m | 6.0 | ||
| Rest | m | 6.0 | ||

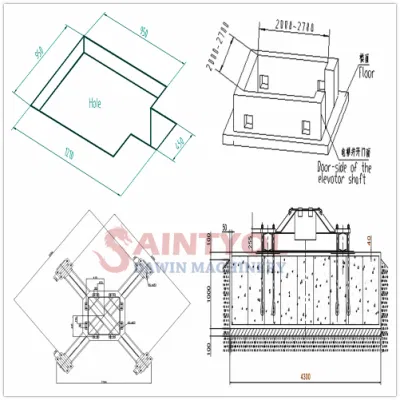

Tower Column Concrete Placing Boom Installation:

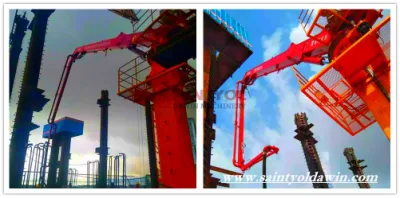

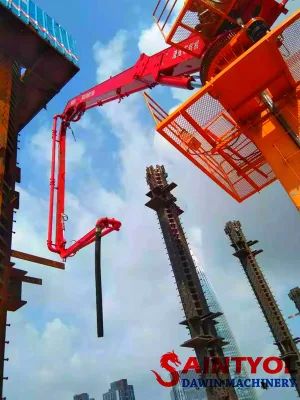

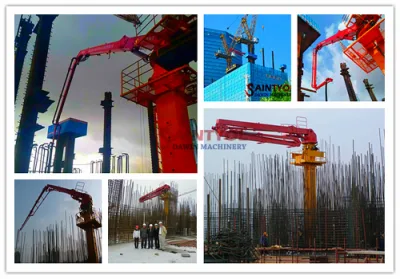

Tower Placing Boom Job site Performance:
