High Quality and Efficient Single Axis Welding Positioner Produced by Chinese Manufacturers

Explore our high quality and efficient single axis welding positioner, produced by Chinese manufacturers. As a factory, we guarantee top-notch products.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Product Parameters
  • Company Profile
  • Certifications
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
AUT-SWP-ZW-300
Welding Turning Rolls Type
Self-Adjusting
Welding Tilter Type
Flexible Combination
Condition
New
Model
Aut-Swp-Zw-300
Colour
Blue and Yellow
Customizable Services
Color, Specifications
MOQ
1
Positioner Dimension(L*W*H)
2820mm*700mm*960mm
Transport Package
Wooden Case
Specification
Wooden Case
Trademark
JINAN GUANSE
Origin
China
Production Capacity
2000

Product Description

Product Description
High Quality and Efficient Single Axis Welding Positioner Produced by Chinese Manufacturers
  Servo positioner is a specialized welding and cutting equipment for industrial robots, suitable for welding and cutting complex workpieces to achieve ideal machining positions and speeds. The rotary table of the displacement machine adopts a well-known foreign brand servo motor combined with a high-precision reducer, which has high rotary accuracy, accurate positioning, and strong load-bearing capacity. By configuring different servo motors (linkage and non linkage), remote operation of the displacement machine can be achieved through robot teaching aids or external operation boxes.
  The servo displacement machine mainly consists of a fixed base, a rotating spindle box, a welded frame, a servo motor and precision reducer, a conductive mechanism, a protective cover, and an electrical control system.
  The welded overall frame is made of high-quality steel and welded. After being returned for stress relief, it undergoes professional mechanical processing to ensure high precision and usage accuracy in key positions. The surface is sprayed with rust proof exterior paint, and the color can be customized according to customer requirements.
  Turn over to make the workpiece fixed on the workbench reach the required welding and assembly angle. The rotation of the workbench is controlled by a servo motor, which can achieve the ideal welding speed.

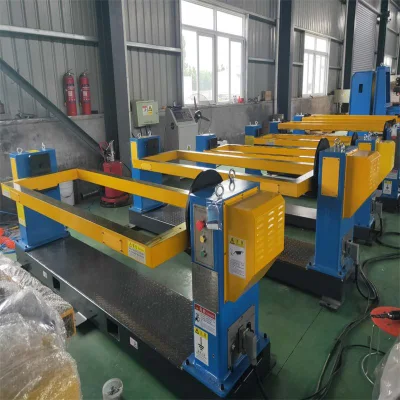

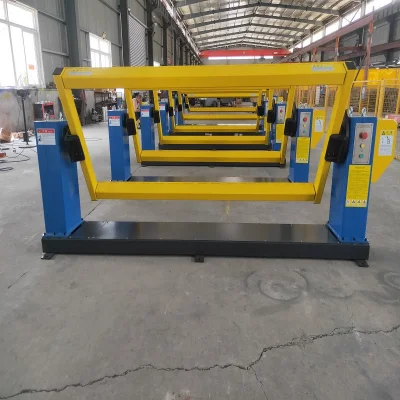

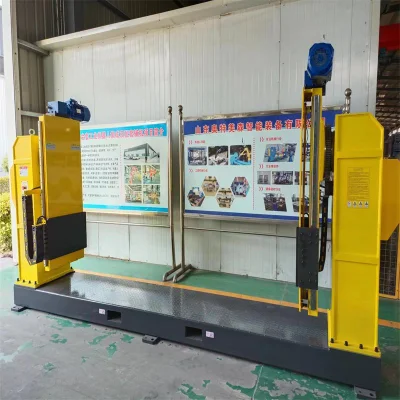

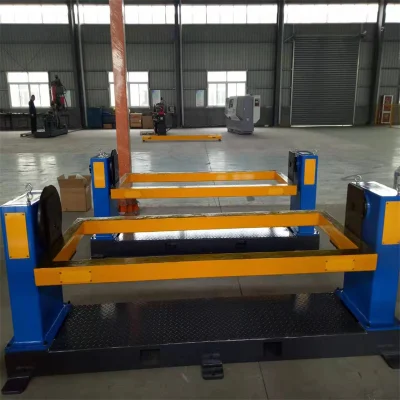

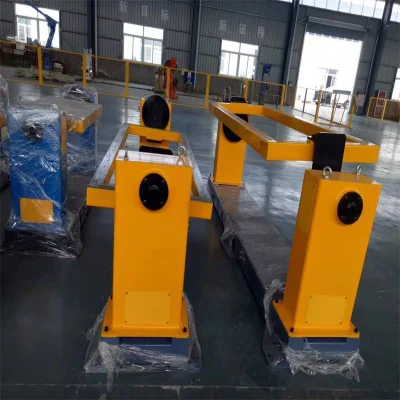

Detailed Photos
High Quality and Efficient Single Axis Welding Positioner Produced by Chinese Manufacturers
High Quality and Efficient Single Axis Welding Positioner Produced by Chinese Manufacturers
High Quality and Efficient Single Axis Welding Positioner Produced by Chinese Manufacturers
High Quality and Efficient Single Axis Welding Positioner Produced by Chinese Manufacturers
High Quality and Efficient Single Axis Welding Positioner Produced by Chinese Manufacturers
High Quality and Efficient Single Axis Welding Positioner Produced by Chinese Manufacturers



Product Parameters
Single Axis Head And Tail Stock Welding Positioner
Model  AUT-SWP-ZW-300 AUT-SWP-ZW-500 AUT-SWP-ZW-800 AUT-SWP-ZW-1000
Rated payload 300kg(Axis radius≤R350mm) 500kg(Axis radius≤R400mm) 800kg(Axis radius≤R500mm) 1000kg(Axis radius≤R500mm)
Standard radius of gyration R600mm R650mm R650mm R650mm
Maximum load eccentricity ≤200mm ≤150mm ≤100mm ≤150mm
The height of clamping ≤550mm(Over 550mm ,the bob-weight will increase with the actual load) ≤400mm(Over 400mm ,the bob-weight will increase with the actual load) ≤300mm(Over 300mm ,the bob-weight will increase with the actual load) ≤300mm(Over 300mm ,the bob-weight will increase with the actual load)
Maximum angle of gyration ±360° ±360° ±360° ±360°
Rated speed of gyration 70°/S 50°/S 50°/S 50°/S
Repeat positioning accuracy ±0.06mm( At R=350mm) ±0.08mm( At R=400mm) ±0.10mm( At R=500mm) ±0.10mm( At R=500mm)
Gyration frame size(L*W*H) 2000mm*660mm*90mm 2200mm*800mm*90mm 2500mm*1000mm*110mm 3500mm*1500mm*130mm
Positioner dimension(L*W*H) 2820mm*700mm*960mm 2900mm*700mm*1050mm 3300mm*700mm*1050mm 4400mm*800mm*1250mm
Height of gyration center  760mm 830mm 830mm 1000mm
Equipment net weight About 400kg About 500kg About 650kg About 850kg

Company Profile
High Quality and Efficient Single Axis Welding Positioner Produced by Chinese Manufacturers
Jinan Guansen Automation Equipment Co., Ltd is located in Jinan, Shandong, China. As a high-tech enterprise, we focus on integrating research and development, design, production, and sales of various types of automation equipment. The company is committed to manufacturing professional industrial peripheral equipment and non -standard automation equipment. The products are widely used in construction machinery, locomotive vehicles, automobile manufacturing, ship heavy industry, petrochemical equipment, power engineering, coal machinery, heavy machinery and other industries.
Product Lineup
Robot peripheral supporting equipment
Standard servo welding positioner
Standard robot Linear rail
Robot integrated workstations and production lines for welding, cutting, handling, forging, casting, machining, painting, etc.
Peripheral safety protection smoke removal system and other supporting equipment.
Non-standard CNC welding machines, CNC cutting machines and other automatic welding cutting equipment.
The specifications of non-standard welding positioner and Linear rail can be customized .






Certifications
High Quality and Efficient Single Axis Welding Positioner Produced by Chinese Manufacturers
High Quality and Efficient Single Axis Welding Positioner Produced by Chinese Manufacturers
High Quality and Efficient Single Axis Welding Positioner Produced by Chinese Manufacturers



Packaging & Shipping
High Quality and Efficient Single Axis Welding Positioner Produced by Chinese Manufacturers
High Quality and Efficient Single Axis Welding Positioner Produced by Chinese Manufacturers
High Quality and Efficient Single Axis Welding Positioner Produced by Chinese Manufacturers



FAQ

1. Q: Is your company a manufacturer?
A: Yes, we have our own factory in Jining City and our own foreign trade company in Jinan City. We are a company that integrates factory and foreign trade.
2. Q: What is the quality of the company's products?
A: The company's products have been produced in China for over 10 years and have cooperative relationships with multiple trading companies. Our products are exported to various parts of the world.
3. Q: Does the product support personalized customization?
A: Products can be personalized and customized according to the actual needs of customers. Customizable content includes: specifications, colors, logos, etc.
4. Q: What are the transportation and packaging methods? A: We will use wooden boxes for packaging, and the transportation method can be negotiated and arranged for shipment.
Accepted Delivery Terms: FOB, EXW
5.Q: What after-sales service can you provide?
A: We provide complete technical support and a one-year warranty.
