Basic Info.
Model NO.
1107-L
Customized
Customized
Color
Colorful
Size
Common
Item No.
1107-L
Max Height Adjustment
28-52inch/71-132cm
Max Pipe Supporting Capacity
12inch/300mm
Single Package Size
80X25X20 Cm
G.W.
15kgs
Transport Package
Carton
Trademark
WELPING
Origin
China
HS Code
8461909000
Production Capacity
20000/Year
Product Description
1107-L V-HEAD PIPE STAND 2500LB; MAX HEIGHT 52IN.
The pipe jack stand is constructed of premium steel, resistant to rusk and corrosion, durable for a long time.
The height is adjustable(from 28 in to 52 in) to meet different needs.

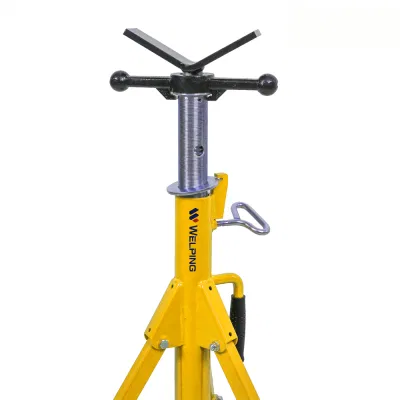

* HEAVY DUTY V-HEAD
Durable V-head, easy to install, is suitable for the pipe of 1/8 to 12 inch. Lock washer ensures safety and large capacity.
Lifting weight can be up to 2500 lbs.
* PORTABLE & COMPACT DESIGN
The whole stands is folding. Storage won't take your much space. A portable handle wrapped by rubber is also a highlight. Easy carrying and storage.
* GREAT STABILITY
The rounded foot pads of this stand is widened. The strut tension plate for superior lateral support.
Stability is enhanced when you are working in the uneven place.
* WIDE APPLICATION
Welding of heavy pipes, shapes, solids and rounds. Support pipe during pipe threading, pipe hole cutting,roll grooving, etc.
The height is adjustable(from 28 in to 52 in) to meet different needs.
* HEAVY DUTY V-HEAD
Durable V-head, easy to install, is suitable for the pipe of 1/8 to 12 inch. Lock washer ensures safety and large capacity.
Lifting weight can be up to 2500 lbs.
* PORTABLE & COMPACT DESIGN
The whole stands is folding. Storage won't take your much space. A portable handle wrapped by rubber is also a highlight. Easy carrying and storage.
* GREAT STABILITY
The rounded foot pads of this stand is widened. The strut tension plate for superior lateral support.
Stability is enhanced when you are working in the uneven place.
* WIDE APPLICATION
Welding of heavy pipes, shapes, solids and rounds. Support pipe during pipe threading, pipe hole cutting,roll grooving, etc.

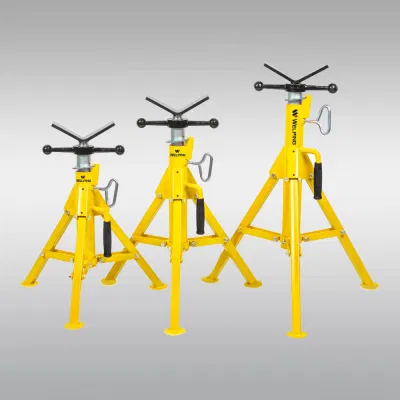

1107-L V-Head Pipe Stand
2500 lbs & 28-52 inch & Folding Design
Designed for quick and easy use, the pipe stand with the V Head features locking rings that allow quick vertical height
adjustments from 28 inches to 52 inches. Max lifting weight can be up to 2500 lbs/1134kg. As a result, it is well-suited to
support pipe during pipe threading, pipe hole cutting, roll grooving, etc.
adjustments from 28 inches to 52 inches. Max lifting weight can be up to 2500 lbs/1134kg. As a result, it is well-suited to
support pipe during pipe threading, pipe hole cutting, roll grooving, etc.
| Production Specification | |
| Model | 1107-L |
| Catalog No. | 730030 |
| Height Adjustment Low-High | 28-52 in./71-132cm |
| Max. Pipe Capacity | 12 in./300mm |
| Max Loading Weight Capacity | 2500 lb/1134kgs |
| Gross/Net weight | 14.5/13.5kgs |
| Packing Size | 80*25*20cm |
