Basic Info.
Model NO.
EHBJ-20
Speed of Table
0.14 Rpm
Size of Table
1000 mm
Turning Power
1.1 Kw
Max Gravity Distance
200 mm
Tilt
-
Transport Package
Electric Control Box with Wooden Package,Mainframe
Specification
Load 2, 000kg
Trademark
MISA
Origin
China
Production Capacity
20 Sets Per Month
Product Description
Hydraulic Elevating Positioner For Welding
The welding positioner is a device that makes the welding seam in a horizontal or boat-shaped position through the rotation or tilt of the worktable.
The worktable rotation adopts frequency conversion stepless speed regulation, and the worktable is driven to elevate by hydraulic cylinders.
It can realize joint control with manipulator or welding machine.
This product is used for welding various shafts, discs, cylinders and other rotating workpieces. It is the most widely used structural form.
The elevating type welding positioner can adjust the height of the worktable by adjusting the position of the latch or electric height adjustment, and it can be adapted to a wider range. Under load, it can reach equilibrium stably without tipping over.
The elevating positioner produced by MISA has excellent dynamic braking and can be stopped immediately. The anti-interference electric control system is fully remote controlled to ensure the safety of operators. Can run quickly, reducing waiting time. Equipped with a protractor that can easily read the tilt angle. Fully enclosed speed regulation mechanism, stepless speed regulation.

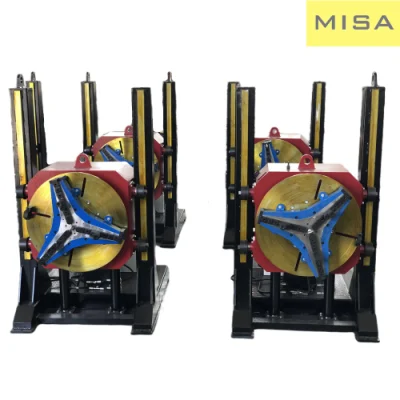

Elevating Welding Positioner Product Photo:
Welding Positioner Product Parameter:
| Model | Rated load Cap (tons) | Power (kw) | Max Gravity Distance (mm) | Max centroid Eccentricity (mm) | Table | Max Rotation Ф@ 90 degree | Tilt Angle (degree) | |||
| Turning | Tilt | Speed(rpm) | Diameter (mm) | |||||||
| Rotation (variable) | Tilt (constant) | |||||||||
| HBJ-01 | 0.1 | 0.06 | /. | 100 | 150 | 0.40~4.0 | - | 400 | 600 | - |
| HBJ-03 | 0.3 | 0.37 | /. | 100 | 150 | 0.10~1.0 | - | 600 | 800 | - |
| HBJ-06 | 0.6 | 0.75 | 0.75 | 100 | 150 | 0.09~0.9 | - | 1000 | 1500 | - |
| HBJ-12 | 1.2 | 1.1 | 1.5 | 150 | 200 | 0.05~0.5 | - | 1200 | 2050 | - |
| HBJ-20 | 2 | 1.1 | 1.5 | 150 | 200 | 0.05~0.5 | - | 1400 | 2100 | - |
| HBJ-30 | 3 | 1.5 | 2.2 | 200 | 200 | 0.05~0.5 | - | 1400 | 2100 | - |
| HBJ-50 | 5 | 3 | 3 | 300 | 300 | 0.05~0.5 | - | 1500 | 2500 | - |
| HBJ-80 | 8 | 3 | 3 | 300 | 300 | 0.05~0.2 | - | 2000 | 3240 | - |
| HBJ-100 | 10 | 3 | 4 | 400 | 400 | 0.05~0.2 | - | 2000 | 3240 | - |
| HBJ-150 | 15 | 3 | 5.5 | 500 | 200 | 0.05~0.5 | - | 2200 | 3400 | - |
| HBJ-200 | 20 | 4 | 7.5 | 630 | 200 | 0.05~0.5 | - | 2500 | 3400 | - |
The worktable of the welding positioner has a degree of freedom of overall turning. The workpiece can be turned over to the ideal welding position for welding.
In addition, the worktable has a degree of freedom of rotation. This kind of positioner is mainly used for welding of some tubes and discs.
The worktable side and the slewing mechanism are supported on the tilting shafts on both sides. The worktable rotates at the welding speed, and the tilting side is tilted at a constant speed within a range of 140° through a sector gear or a hydraulic cylinder.
The welding positioner has good stability, generally does not need to be fixed on the foundation, and it is convenient to move. Its applicable range is the turnover and displacement of 300kg to 50t workpieces, and it is often used in conjunction with welding manipulators.

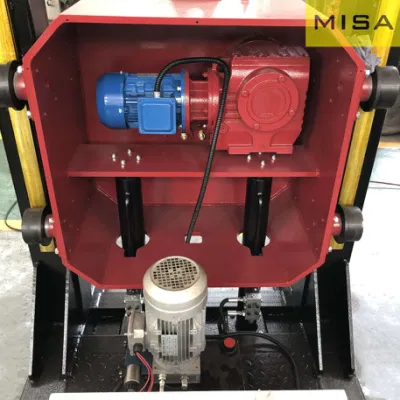

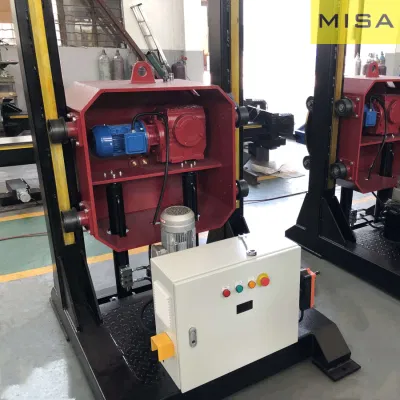

Elevating Welding Positioner Detail Photo:
The positioner can place large structures in the "deputy" position in the shortest time without using cranes and manpower. The positioner table rotates at a precise and constant variable speed, tilts 135°, has a high CG load rating, and can work at any angle where welding is placed on it. A positioner can be provided to interface with uprights and boom manipulators.
This type of welding positioner mainly includes a host, a workbench, a grinding unit, a rotating unit, and electrical control components.
The main unit, rotating table and cabinet, the combination of these parts are welded, all welds have equal strength, according to the requirements of the welds, eliminate stress and prevent welding deformation processing.
Welding Positioner Application:
1. Pipe to pipe (or Elbow or Flange);
2. Welded Barrels
3. Storage tanks
4. Industrial drums
5. Tank and drum fabrication
6. Cylindrical structure cutting of cylindrical job pipe elbow
7. Framework of car , digger arm, loading machine , digger machine;
Welding Positioner Packing And Shipment:
Kindly Noted:
1. You can choose Fixed type or Elevating type .
2. Welding Positioner can tilting from 0° to 120°, rotation 360° via VFD control.
3. Standard Voltage is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
4. Controlled is remote-control box, optional is foot switch
5. If customer need more special requirements , we could study with our engineer.
FAQ:
1. What is the size of the faceplate?
The faceplate of the positioner can be selected according to the load capacity , or customized according to customer requirements. The faceplate has T-slots which can be used to fix the chuck. 2. What is the difference between the positioner and turning table?
The turning table can only rotation, and it is 1 Axis. The positioner can rotation and elevating, and it is 2 Axis. Customers can choose according to their needs. We also have many types of positioners to choose from to meet the work needs of customers for different workpieces.
3. Can the positioner be used with a chuck?
Yes. There are some T-slots on the table to fix the chuck. T-slots can be customized according to the size of the chuck. And we can also provide the chucks you need. 4. Replacement parts can provide it?
We provide it for free during the warranty period, and charge for it after the warranty period. 5. Do you provide warranty?
We provide a 13-month warranty and can provide customers with technical guidance for life. Related Products:
