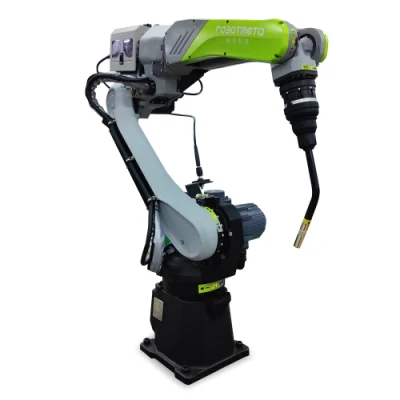

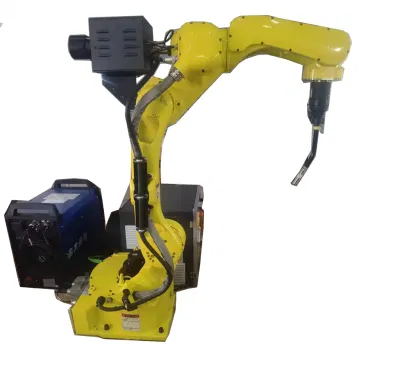

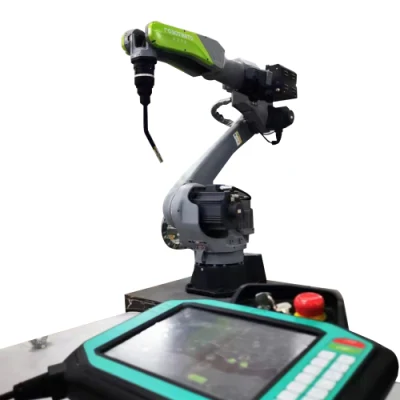

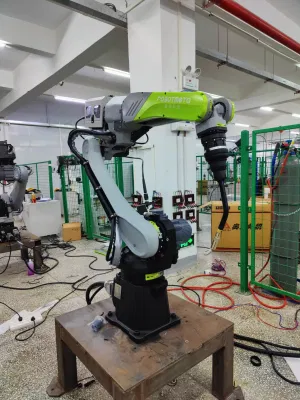

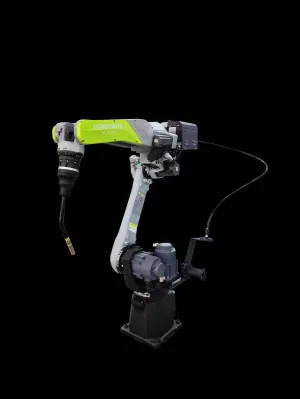

Industrial 6 Axis Robot Arm/MIG Welding Robot Manipulator

Find dependable Industrial 6 Axis Robot Arm/MIG Welding Robot Manipulator at our factory. Trust our expertise for quality and efficient production.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
Overview

Basic Info.

Certification
ISO, CE
Max Load
8kg
Max. Working Radius
1500mm
Transport Package
Wooden Cases
Specification
1500mm
Trademark
Jiaxin
Origin
Shandong
Production Capacity
100 Sets/ Month

Product Description

Product Description



Cnc Industrial Automatic Arm Robot Welding Equipment With Robotic Arm Welding Robot
Industrial robots are multi-joint manipulators or multi-degree-of-freedom robots oriented to the industrial field. An industrial
robot is a machine device that automatically performs work. It is a machine that realizes various functions by its own power and
control capabilities. It can be commanded by humans, or it can run in accordance with a pre-arranged program. Typical applications
of industrial robots include welding, painting, assembly, collection and placement, product inspection and testing, etc.; all
tasks are completed with high efficiency, durability, speed and accuracy.
Product Parameters









Model No.
JX10-1440
Controlled axis
6-DOF
Max payload
10 kg
Max stroke
1440mm
IP Level
J1, J2-IP56; J3, J4, J5, J6-- IP67
Installation mode
Floor type, ceiling type
Robot mass
172 kg
Repeatability
±0.05 mm


Welding machines
Standard: Aotai NBC-350R (MIG/MAG/CO2)
Optional: Aotai NBC-350RL (low spatter)
Optional: Aotai NBC-350RL (low spatter)
Welding current
350A/500A
Welding torch
Standard air-cooling torch with built-in anti-collision protection
Travel range
J1 axis S
±160°
J2 axis L
+80°~-145°
J3 axis U
+145°~-75°
J4 axis R
±190°
J5 axis B
+50°~-210°
J6 axis T
±230°
Travel speed
J1 axis S
199.5 ˚/s
J2 axis L
159.3 ˚/s
J3 axis U
199.5 ˚/s
J4 axis R
392 ˚/s
J5 axis B
272 ˚/s
J6 axis T
1000 ˚/s
