Basic Info.
Model NO.
HJ
Welding Tilter Type
Flexible Combination
Condition
New
Name
Column Boom Welding Manipulator
Working for
Pipe Tank Vessel Automatic Arc Welding
Optional
Welding Positioner and Welding Rotator
Column Stroke
Customized
Boom Stroke
Customized
Input Voltage
380-480V
Exported to
Finland, Greece, Canada, South Africa, USA, Poland
Warranty
1 Year
After Sales
Online Engineer
OEM
Yes
Lead Time
25 Days
Column Rotation
180 Degree
Moving Type
Electric or Manual
Speed Regulation
VFD
Lifting Speed
450-1000mm/Min
Transport Package
Standard Package
Trademark
Lemar
Origin
Wuxi, China
HS Code
8515319900
Production Capacity
1000 PCS/Year
Packaging & Delivery
Package Size
720.00cm * 450.00cm * 450.00cm
Package Gross Weight
1300.000kg
Product Description

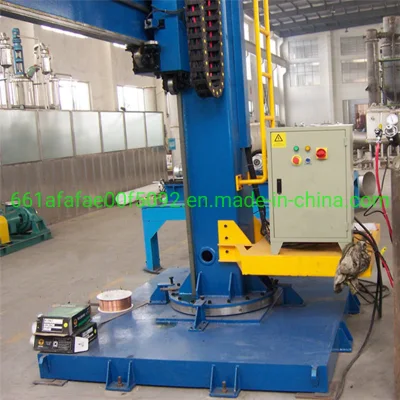

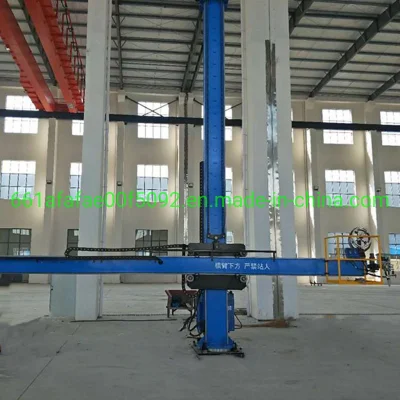

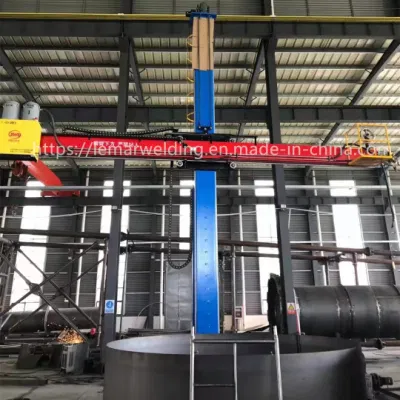

Large diameter Pipe seam Submerged Arc Welding Manipulator
Cantilever type pipeline automatic welding machine is composed of electric telescopic arm, liftable column, cross fine-tuning device, 180° automatic or manual rotation, PLC control system, TIG SAW welding system and electrical control system, etc.

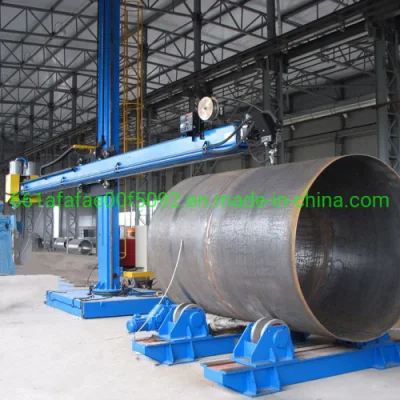

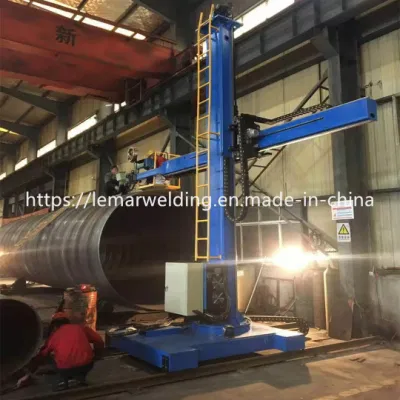

Column and boom manipulator mainly completes straight pipe + straight pipe/flange/elbow butt weld argon arc welding, cylinder girth welding, gas protection bottoming, argon arc welding machine, gas protection, submerged arc welding filling cover welding .
The automatic welding center has the outstanding advantages of high welding efficiency, high welding quality, convenient operation and effective reduction of labor intensity of workers.
Specification:
Lemar other machines:
Wuxi Lemar is a company integrating R&D, production, sales and maintenance services, H-beam automatic welding equipment, Box girder automatic production line, CNC welding positioner, Welding rotator,Welding positioner, Welding turntable, 3D/2D welding Tables, Welding Oscillator, Welding Chuck, Welding Torch Holder, CO2 Welding Torch and Welding Torch Accessories, Straight Seam Welding Machine, Welding Roller Stand, Manipulator, Argon Arc Welding Automatic Wire Feeder, Wire Feeder and other series of welding and cutting auxiliary equipment machinery.
Widely used in welding, cutting, pipe flanges, hydraulic equipment, pipe valves, boilers, auto parts, instruments, spraying, medium and heavy vehicles, cars, construction machinery, railway vehicles, motorcycles, agricultural vehicles, household appliances and other fields.
Cantilever type pipeline automatic welding machine is composed of electric telescopic arm, liftable column, cross fine-tuning device, 180° automatic or manual rotation, PLC control system, TIG SAW welding system and electrical control system, etc.
Column and boom manipulator mainly completes straight pipe + straight pipe/flange/elbow butt weld argon arc welding, cylinder girth welding, gas protection bottoming, argon arc welding machine, gas protection, submerged arc welding filling cover welding .
The automatic welding center has the outstanding advantages of high welding efficiency, high welding quality, convenient operation and effective reduction of labor intensity of workers.
| Technical parameters/model | HJ1010-3030 | HJ4040 | HJ5050 | HJ6060 | HJ7070-8080 | HJ9090-120120 | |
| Structure type | Optional:Fixed type,Manual rotation,Electric rotation,Moving and rotation | ||||||
| Lifting stroke (mm) | 1500-3000 | 4000 | 5000 | 6000 | 7000-8000 | 9000-12000 | |
| Telescopic stroke (mm) | 1500-3000 | 4000 | 5000 | 6000 | 7000-8000 | 9000-12000 | |
| Speed regulation mode of wishbone | Frequency | ||||||
| Lifting speed | 450mm/min | 1000mm/min | |||||
| Telescopic speed (mm/min) | 100-1000mm/min | ||||||
| Small distance between the lower edge of the cross arm and the track surface (mm) | 1100 (mobile rotary) 950 (fixed rotary) | 1118 (mobile rotary) 1170 (fixed rotary) | |||||
| Allowable large load in front of cross arm (kg) | 100 | 200 | 300 | ||||
| Column rotation | ±180° | ||||||
| 0.36rpm or manually | |||||||
| 2000 | |||||||
| Trolley walking | 1200 | 2000 | 2200 | 2500 | |||
| Inner gauge of trolley (mm) | Manual and pneumatic 2 options | ||||||
| locking mechanism | Wired Hand Control Box | ||||||
| Remote control box cable power supply | 220V/380V/400V/415V/440V/460V-3P-50HZ/60HZ | ||||||
| power supply | Gas shielded welding, mig welding, tig welding | ||||||
| Gas shielded welding is suitable for plate thickness ≥ 3mm. The main applicable materials are: carbon steel stainless steel aluminum plate | |||||||
| Submerged arc welding is mainly used for ≥6mm plates, mainly carbon steel, but also stainless steel. It is recommended to choose a water-cooled welding torch and a water-cooler to prevent the welding temperature from being too high. | |||||||
